Ignition Control Module: Service and Repair

REMOVAL

1. Disconnect negative battery cable.
2. Disconnect the electrical connector from the ignition module.
3. Remove the nuts and screws from the ignition module.

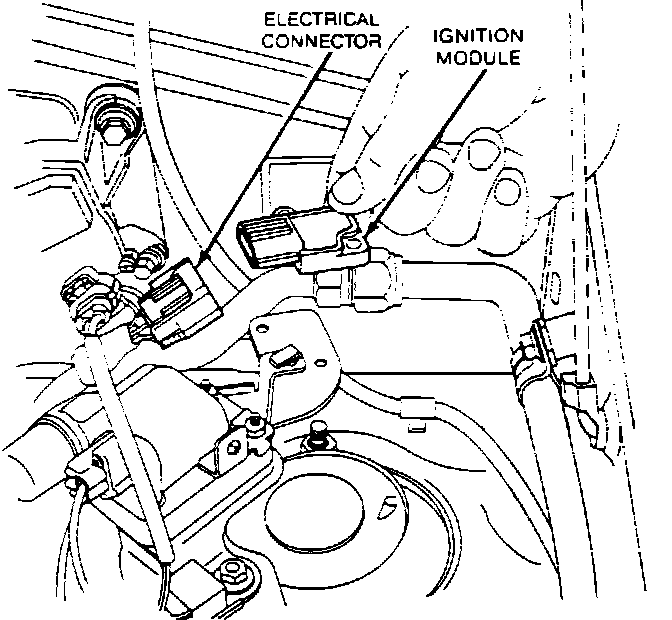

Ignition Module:

4. Remove the ignition module.

INSTALLATION

1. Position ignition module and install nuts and screws.
2. Connect electrical connector.
3. Connect the negative battery cable.
4. Check for proper operation.
