Ignition Control Module

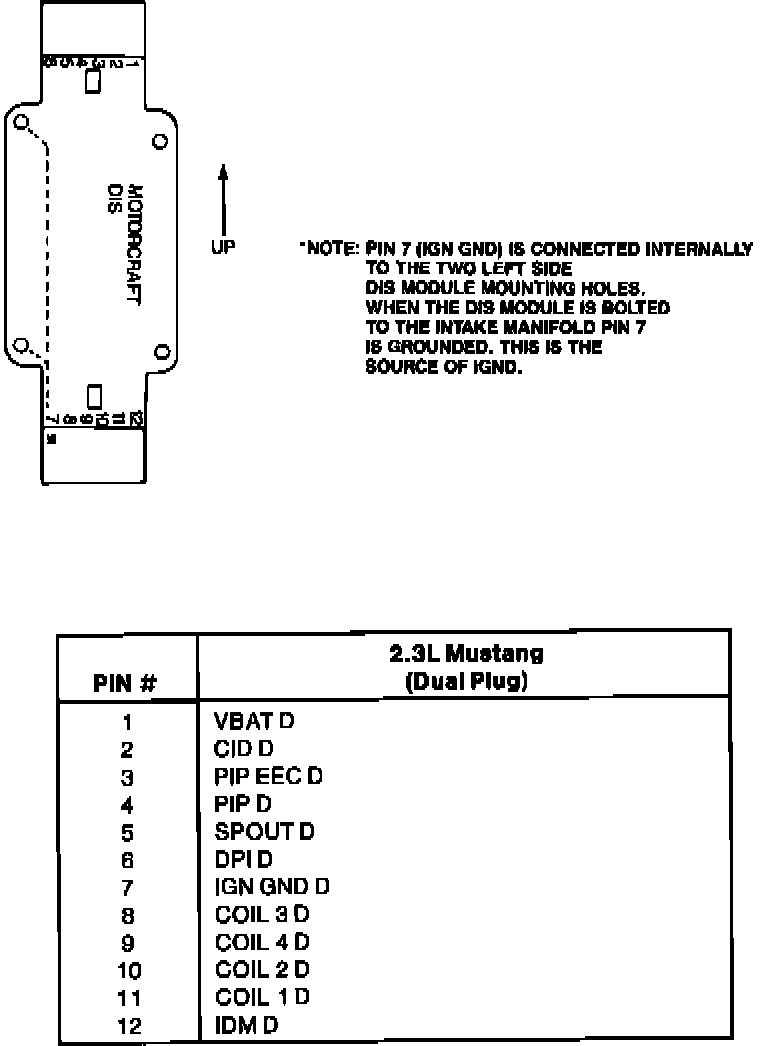

Dis Module And Pinout:

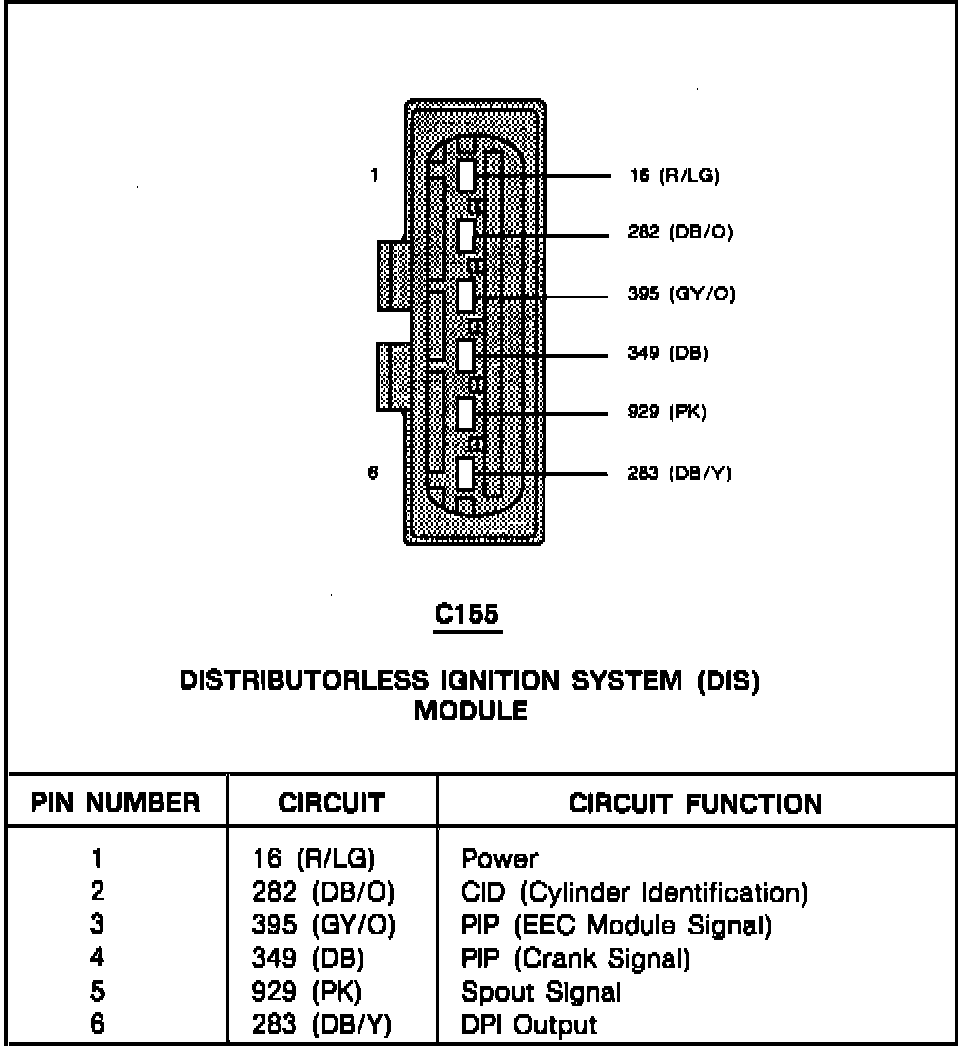

Distributorless Ignition (DIS) System Module Connector Pinout:

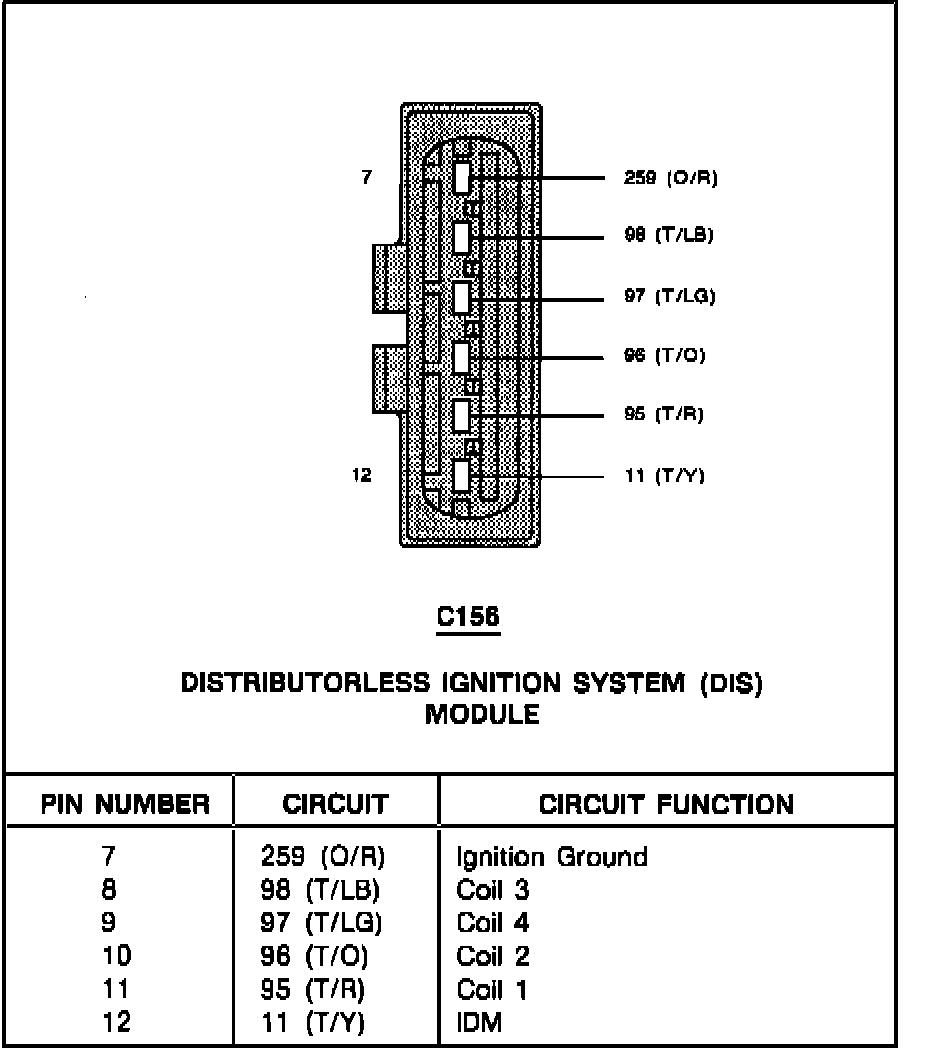

Distributorless Ignition (DIS) System Module Connector Pinout:
