Air Flow Meter/Sensor: Locations

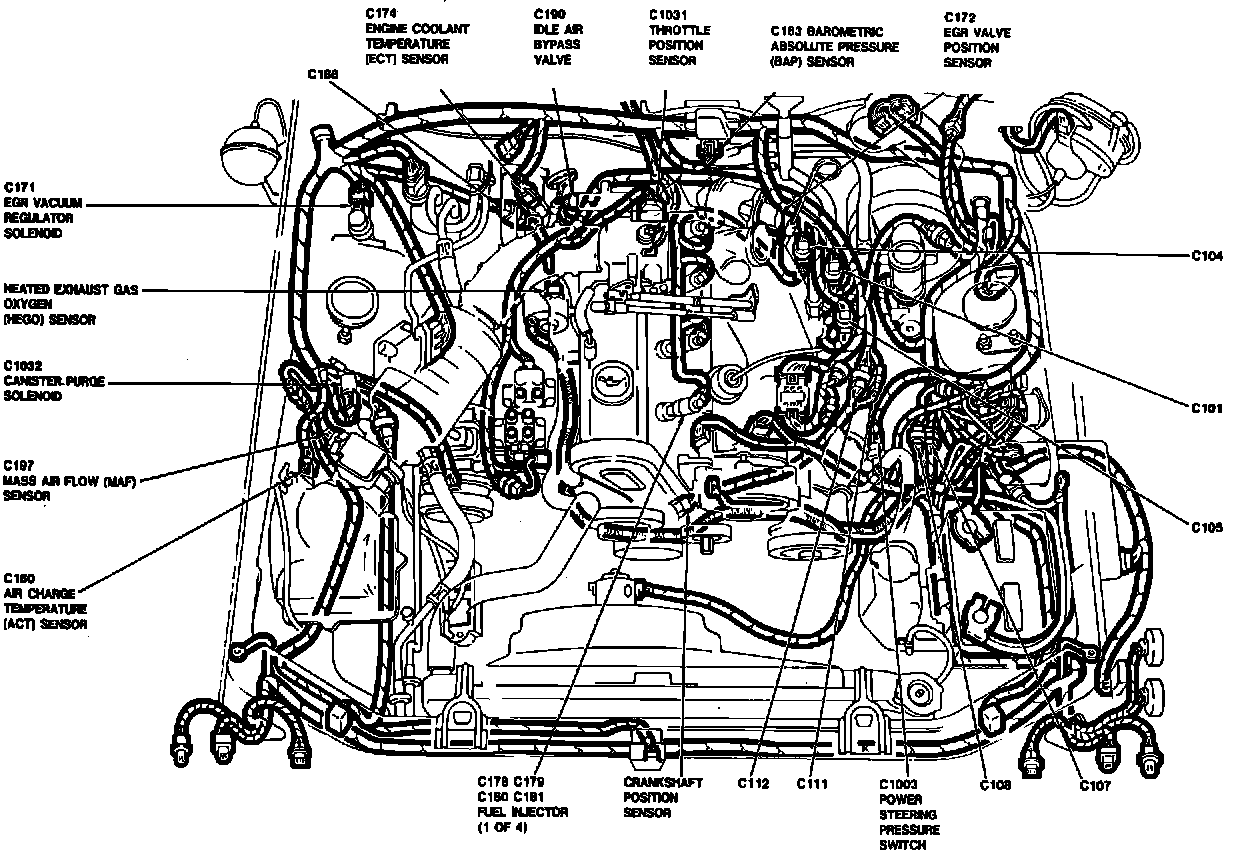

Engine Compartment Components.:




RH Side Of Engine Compartment, On Air Cleaner

Applicable to: 2.3L/4-140 Engine
