Differential Assembly: Reassembly

  1. Using either a driver handle or press and Bearing Cone Replacer (T88C-77000-EH), install speedometer drive gear and front and rear bearing cones.
  2. Install thrust washers, pinion gears and pinion shaft. Install and crimp knock pin. Install thrust washers and side gears.

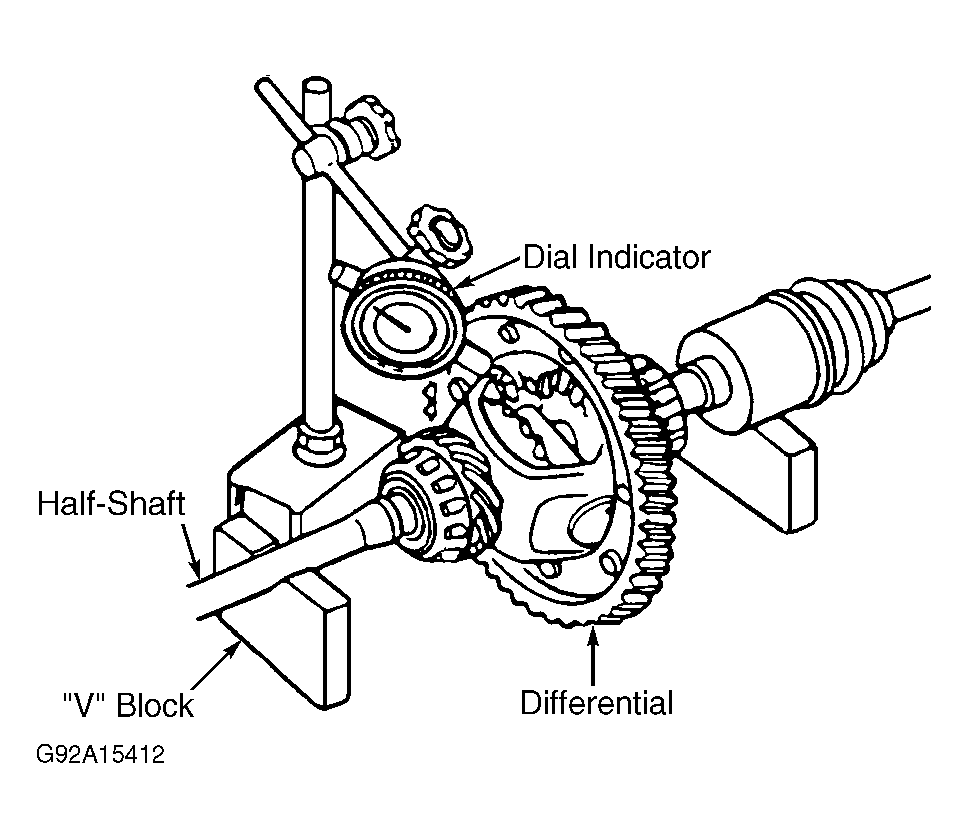

Fig 1: Checking Side Gear & Pinion Backlash
G92A15412Courtesy of FORD MOTOR CO.
