ABS Signal Check No. 1

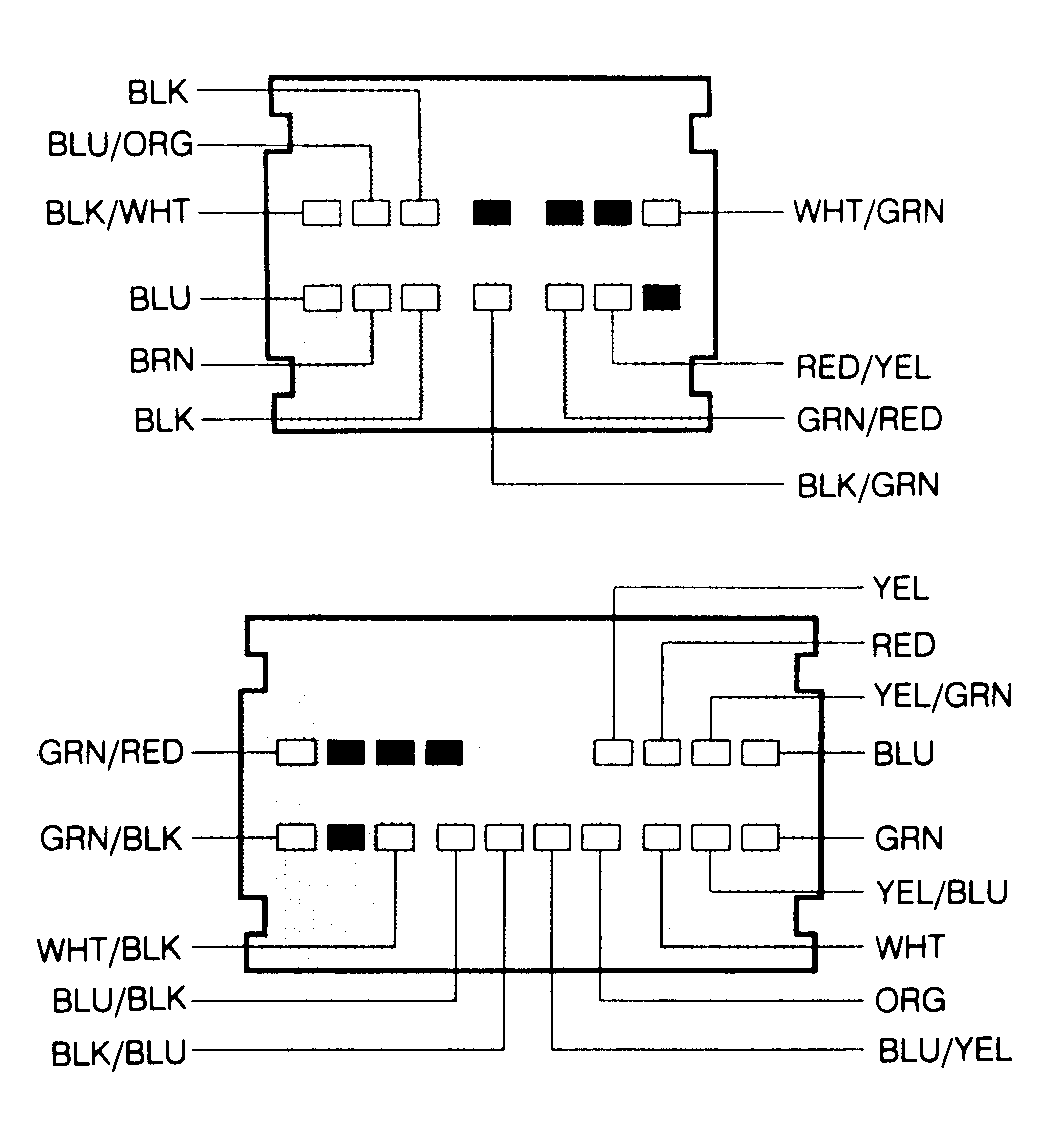

- Unplug ABS control unit connectors. See IDENTIFYING ABS MODULE CONNECTORS illustration. ABS connectors are located at ABS control module, under left front seat.
- Start engine. If ABS warning light goes off, check ABS system. Repair as necessary. If ABS warning light does not go off, repair Blue/Yellow wire between ABS control unit and instrument panel.
