Temperature Control Cable

  1. Move temperature control lever to maximum warm position. Remove left sound deadening panel. Remove cable from cable housing brace on right side of heater case. See Fig 1 .
  2. With cable end on door lever pin, push door lever down to extreme stop. Secure cable on housing brace. Check temperature control lever operation. Install left sound deadening panel.

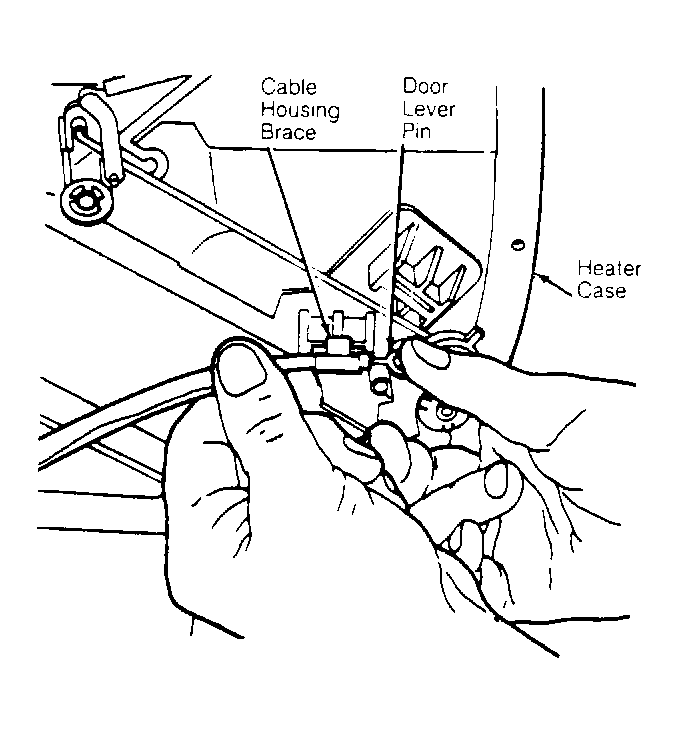

    Fig 1: Adjusting Temperature Selector Cable
    G91E05354Courtesy of FORD MOTOR CO.
