Electronic Brake Control Module: Service and Repair

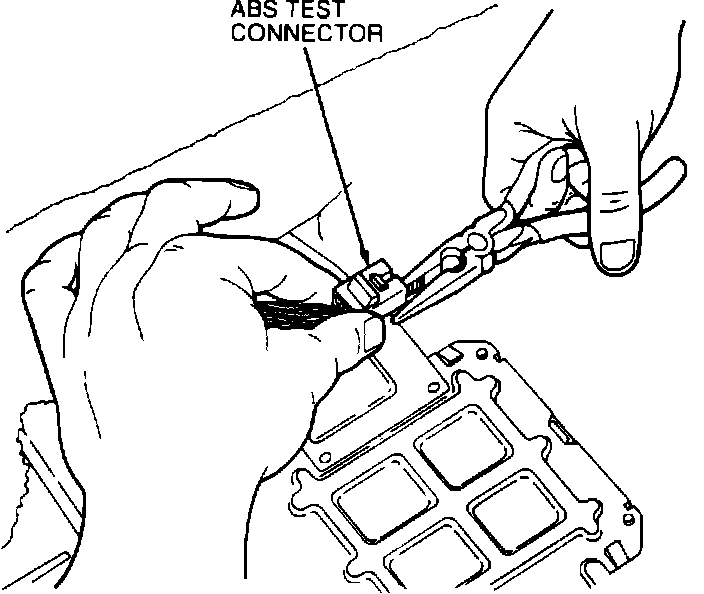

Removing Anti-Lock Brake Test Connector:

1. Remove driver's seat.
2. Disconnect ABS test connector.
3. Remove three module attaching bolts, then disconnect electrical connectors and remove module from vehicle.
4. Reverse procedure to install.
