Seat Belt Control Module: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the quarter trim panel.

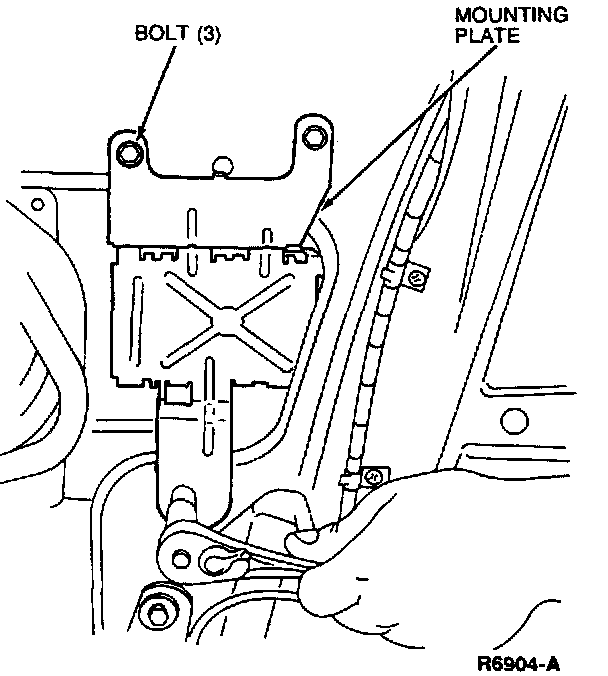

3. Remove the three control module mounting plate bolts.

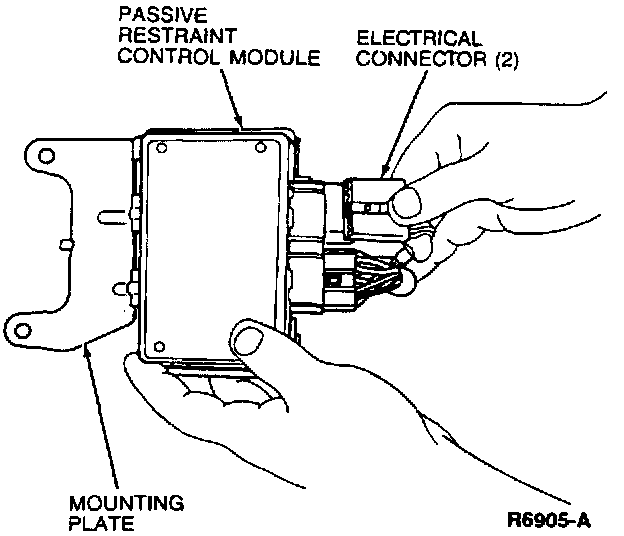

4. Disconnect the two control module electrical connectors.
5. Remove the passive restraint control module assembly.

INSTALLATION
1. To install, reverse the removal procedure.
2. Check the passive restraint system for proper operation.
