A - No Start
>>
A21 - Check PIP At DIS Module - KOEC DIS Module Disconnected
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

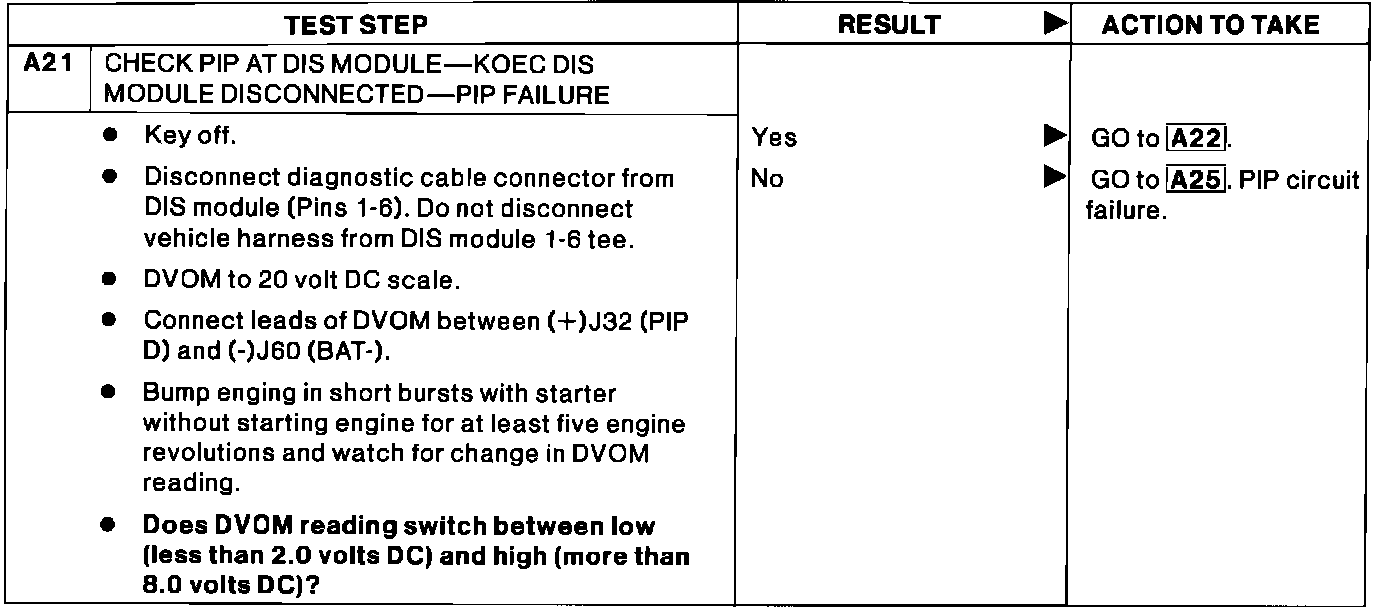

A21 - Check PIP At DIS Module - KOEC DIS Module Disconnected
Pinpoint Test A21:
