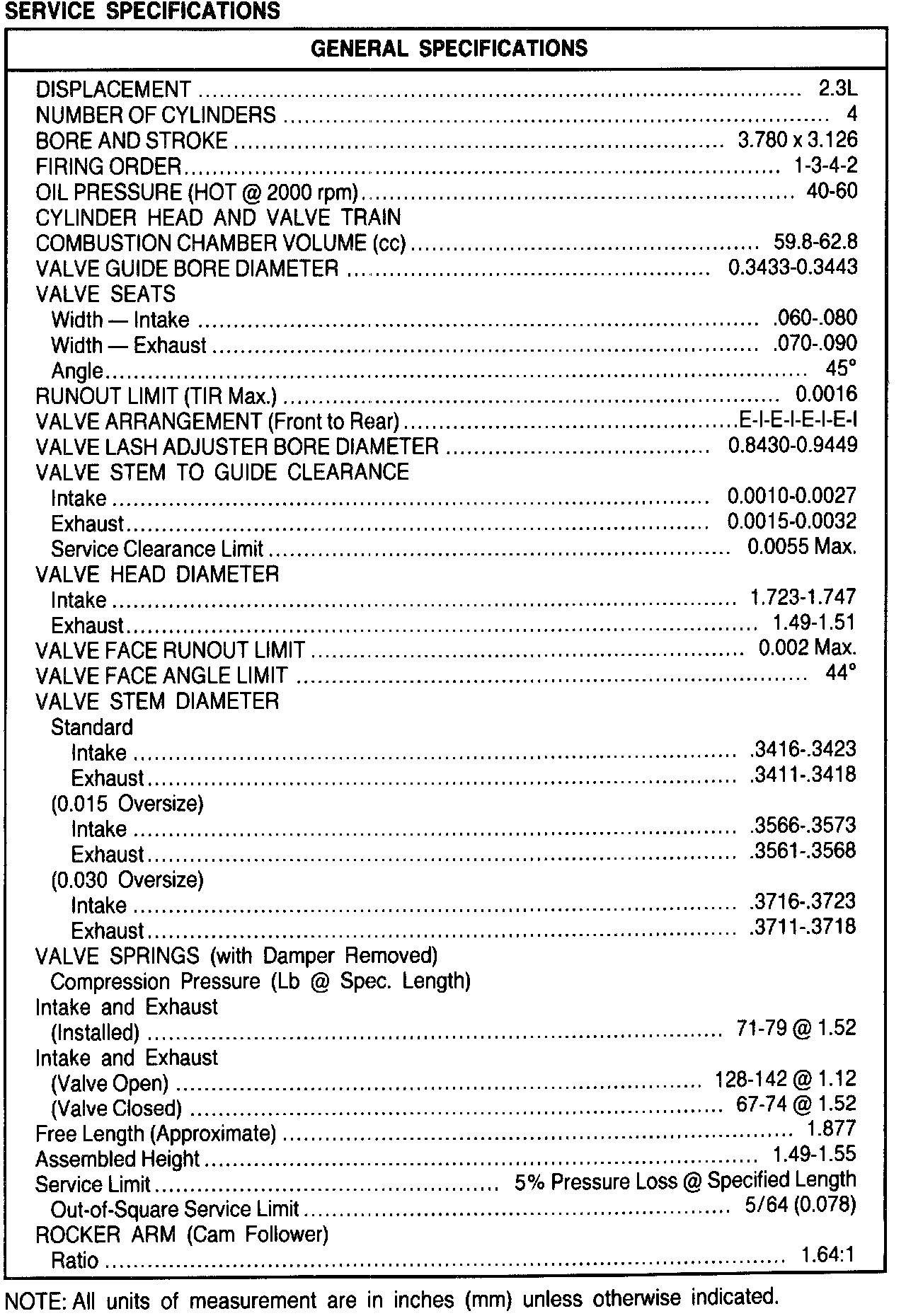

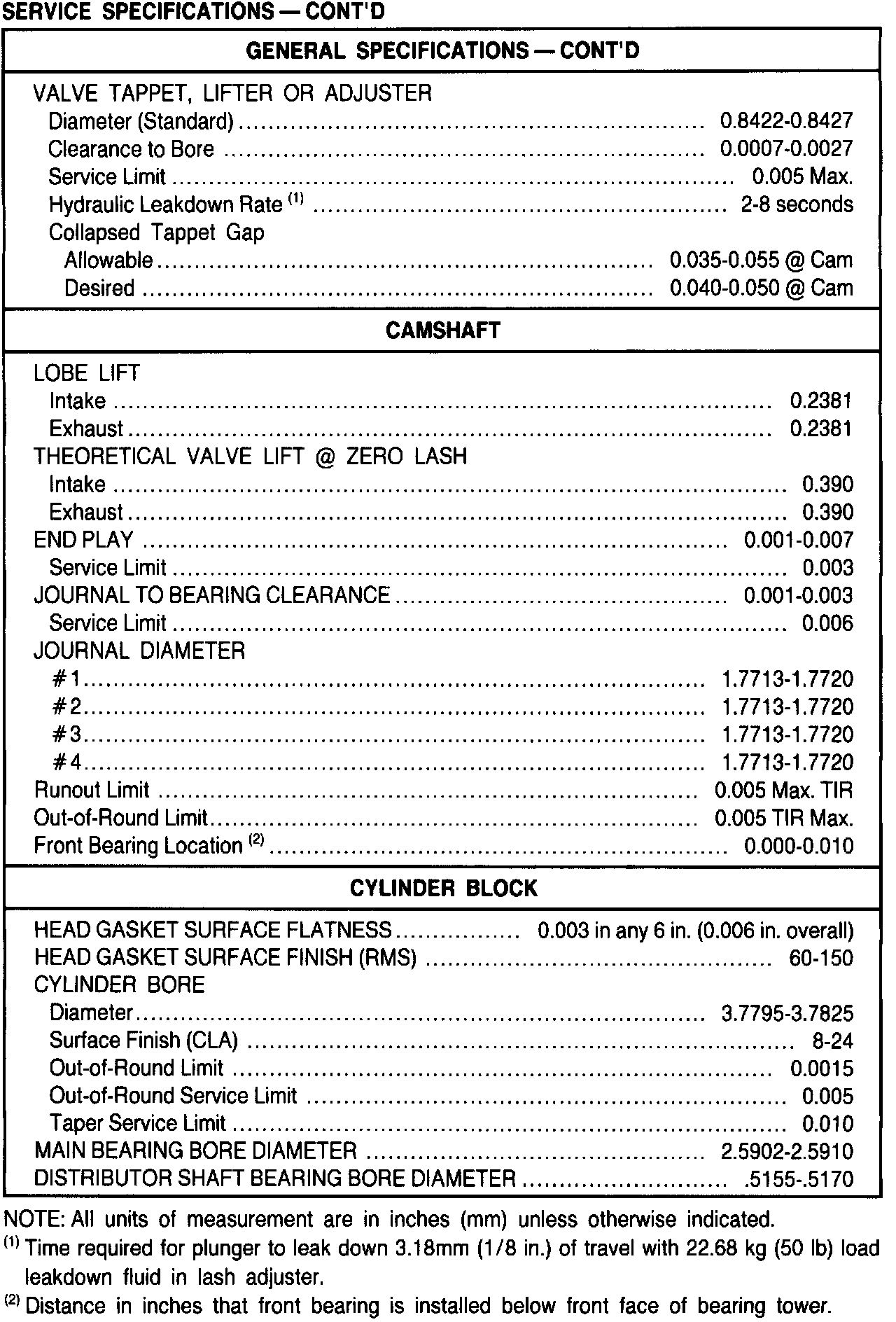

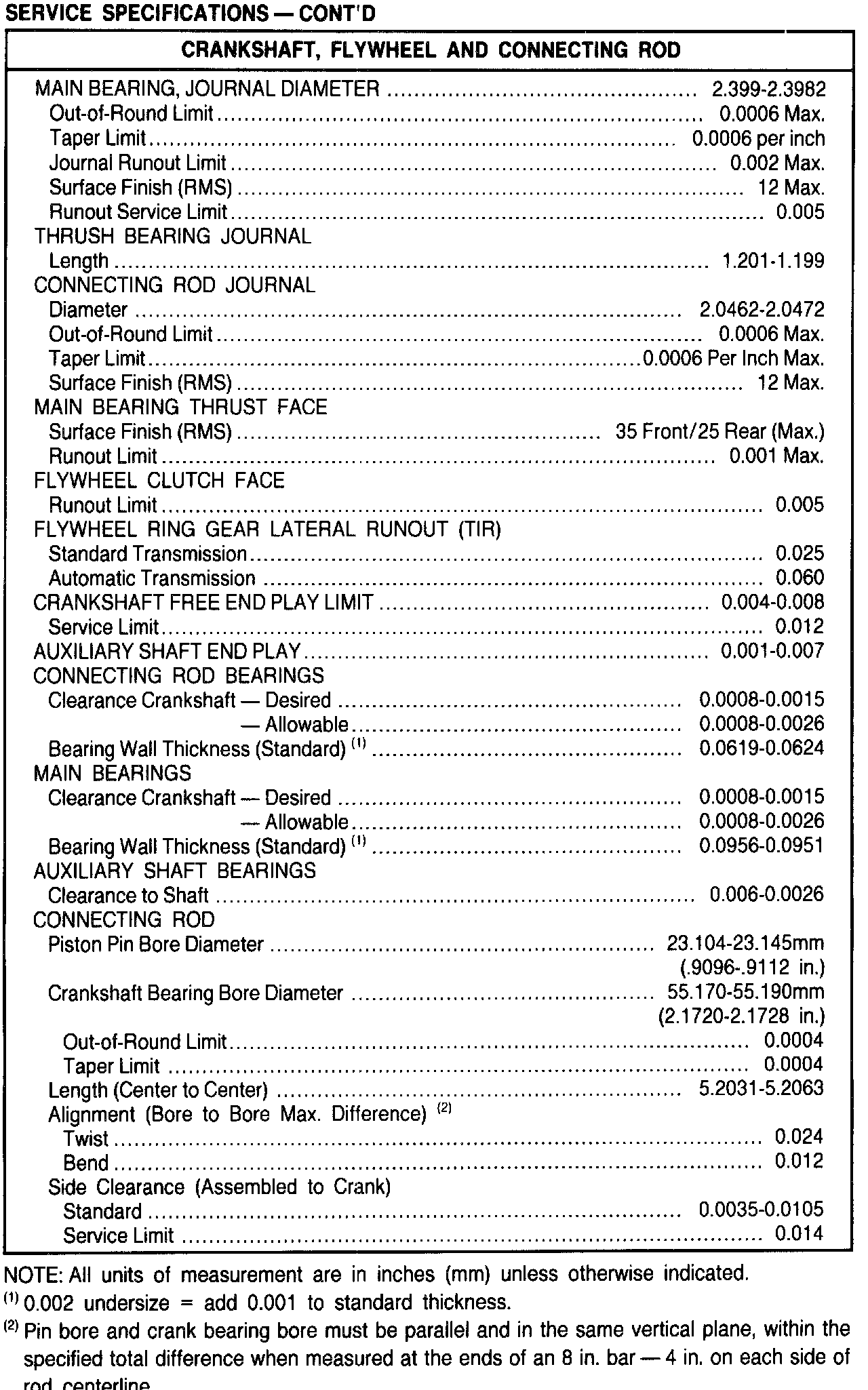

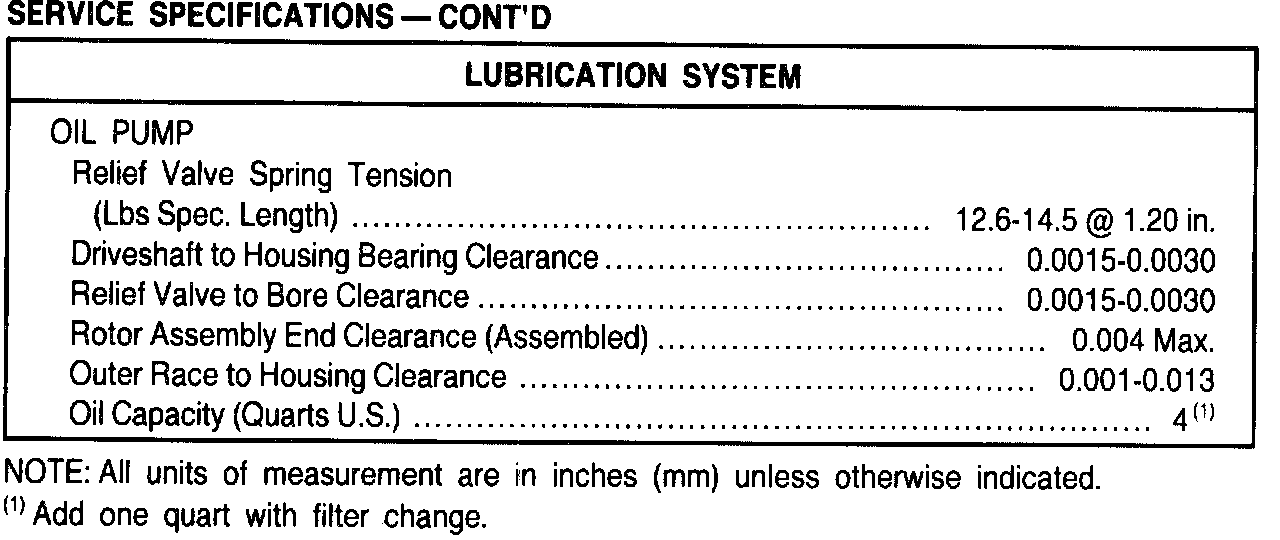

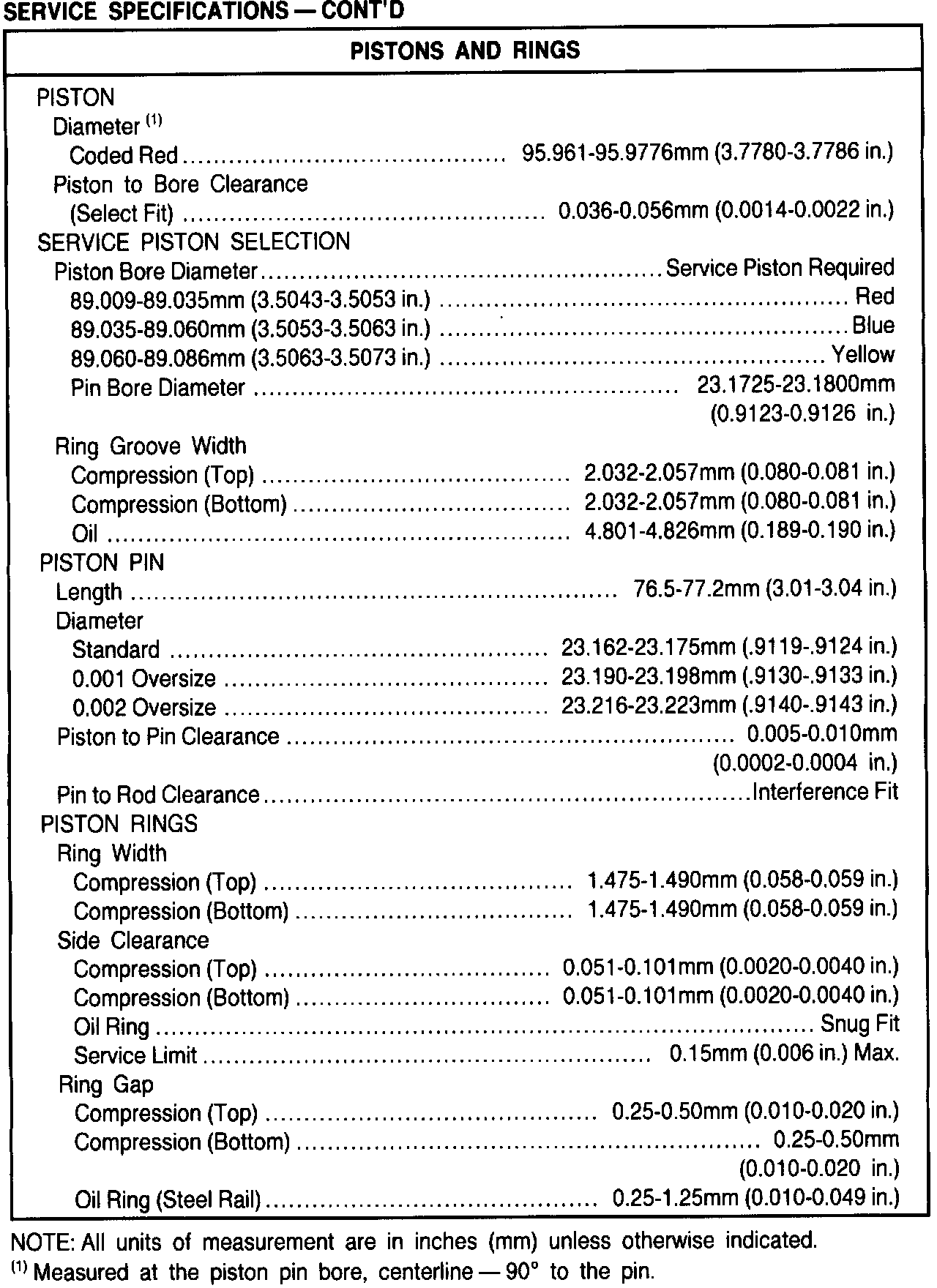

General Engine Specifications

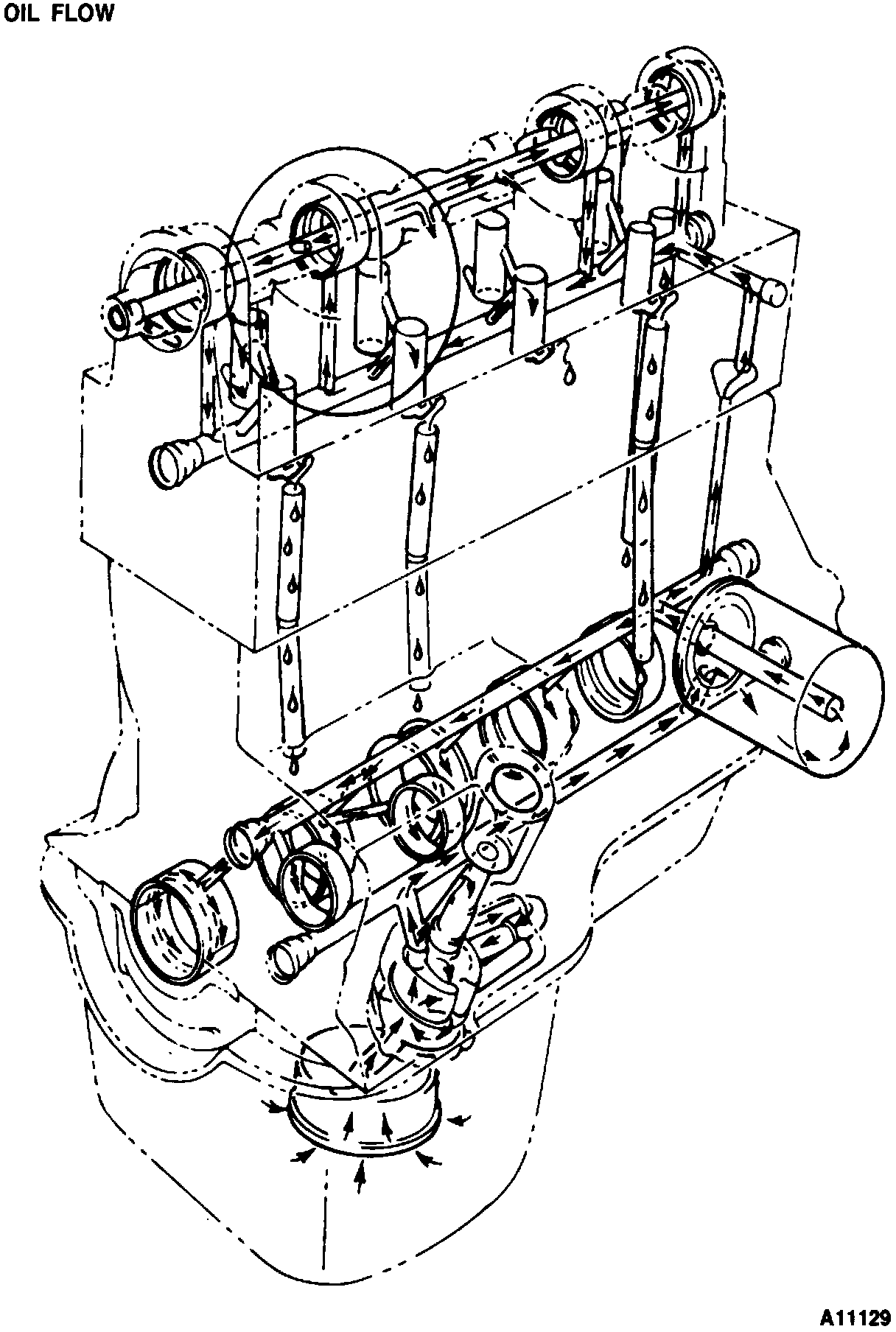

Oil Flow:













���:

















Compression Test Percentages - All Engines:





Belt Tension Allowable Limits:
