Control Module, Transfer Case

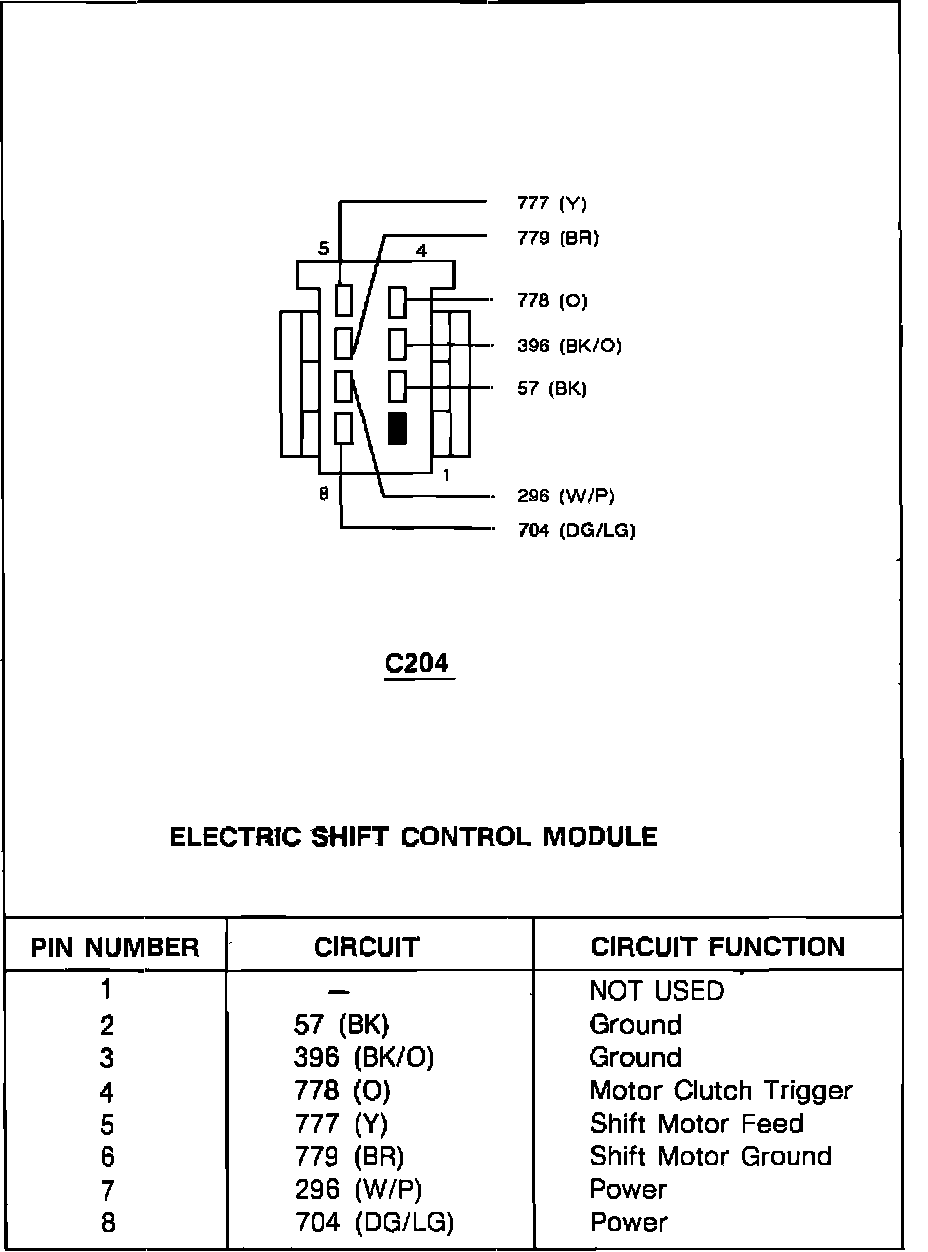

Connector Faces/Pinout Charts C204:

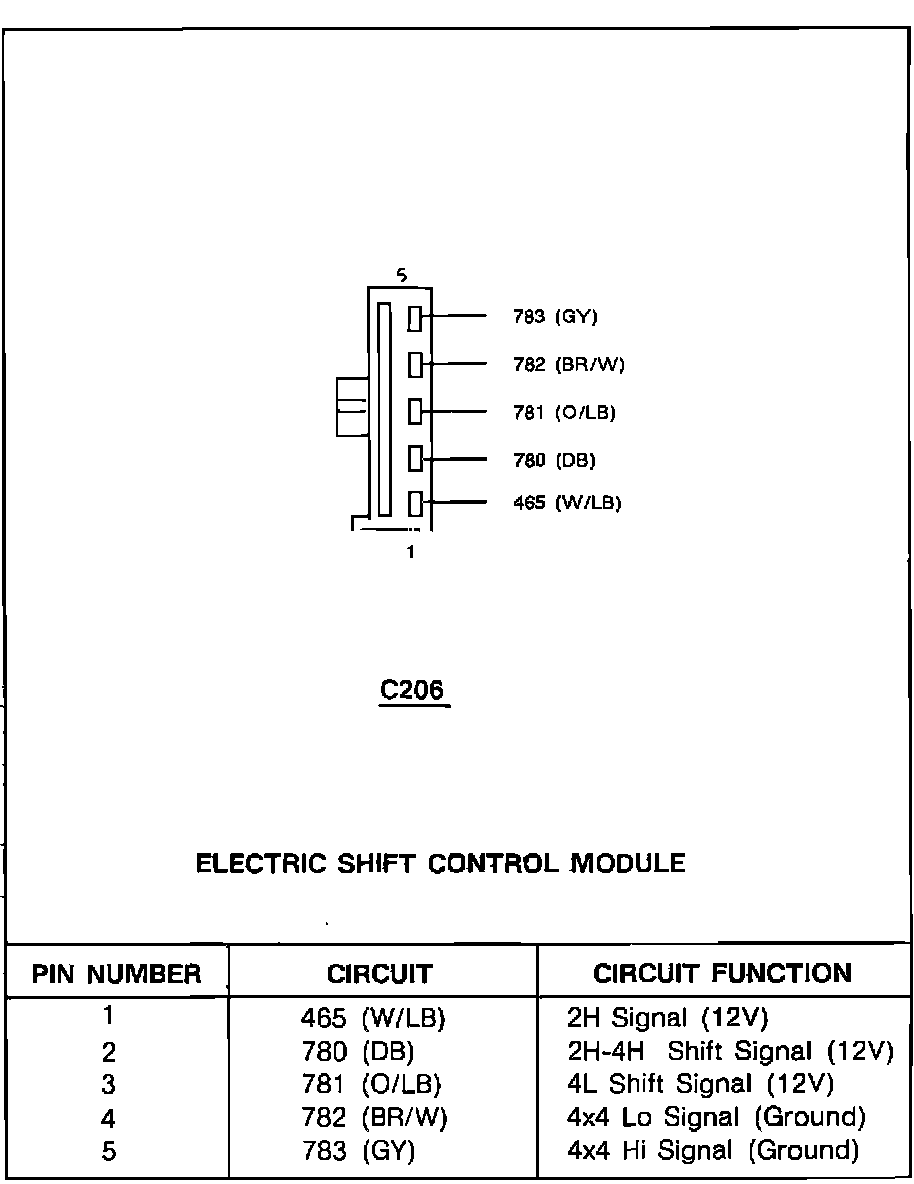

Connector Faces/Pinout Charts C206:

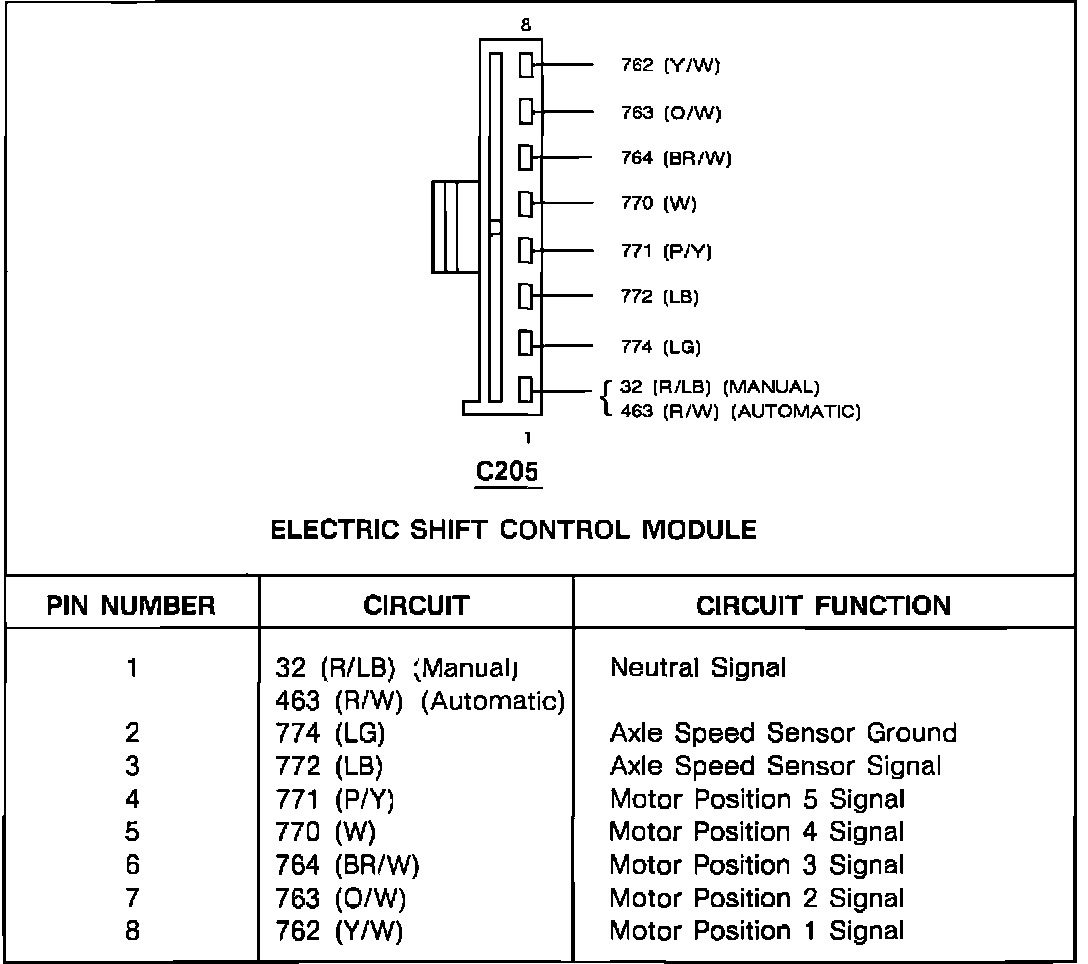

Connector Faces/Pinout Charts C205:
