Regular Cab

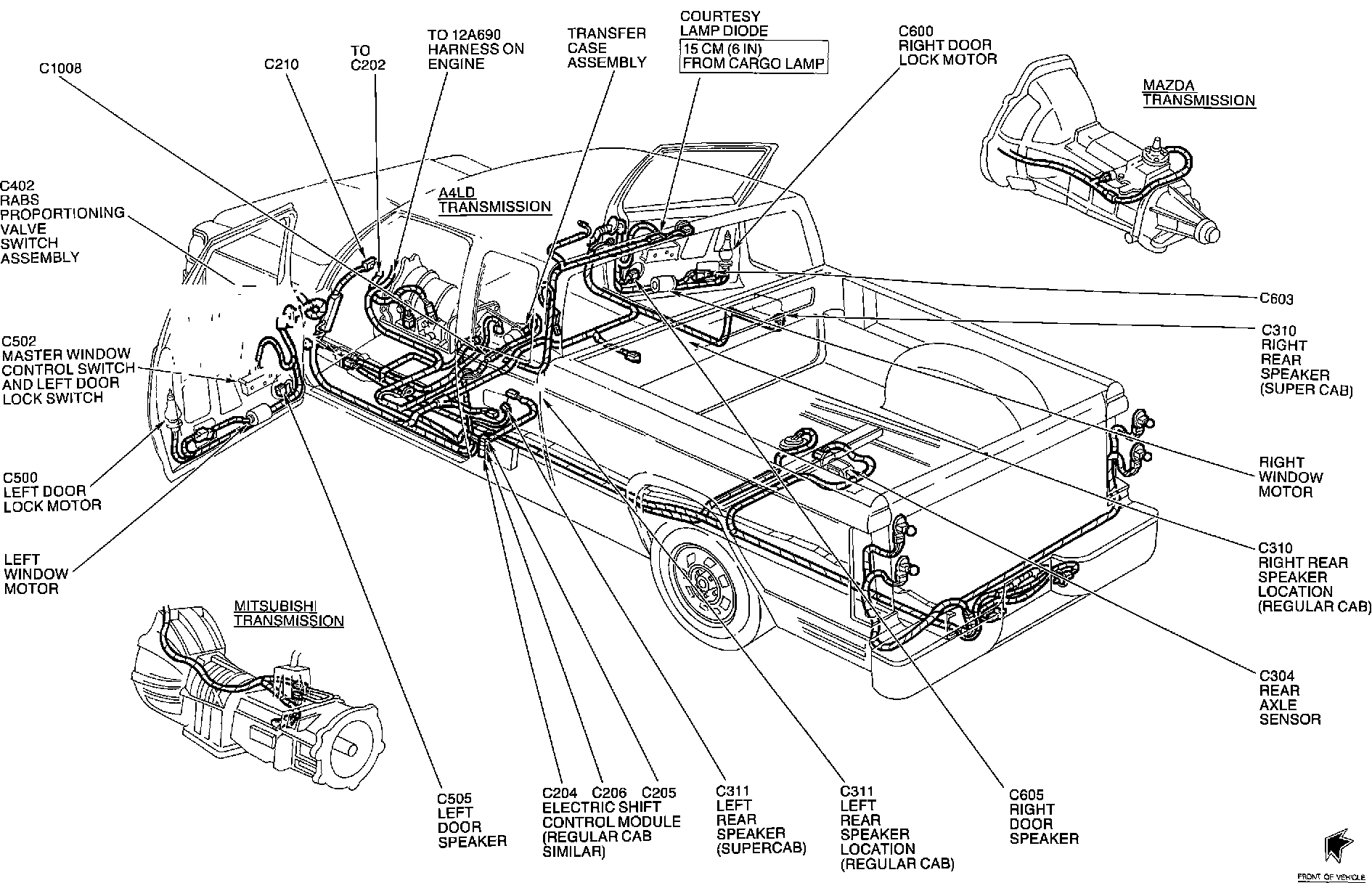

Component Location:





Electronic Control Module Location:





The Electric Shift Control Module is located at the lower Left Hand rear corner of cab.
