Component Locations

COMPONENT LOCATIONS

Component	Location
Ground G301	Under Trim Panel At Driver's Door Sill. See Fig 1 .
Right Seat Motor Assembly and Power Lumbar Pump	Under RH Front Seat
Left Seat Motor Assembly and Power Lumbar Pump	Under LH Front Seat

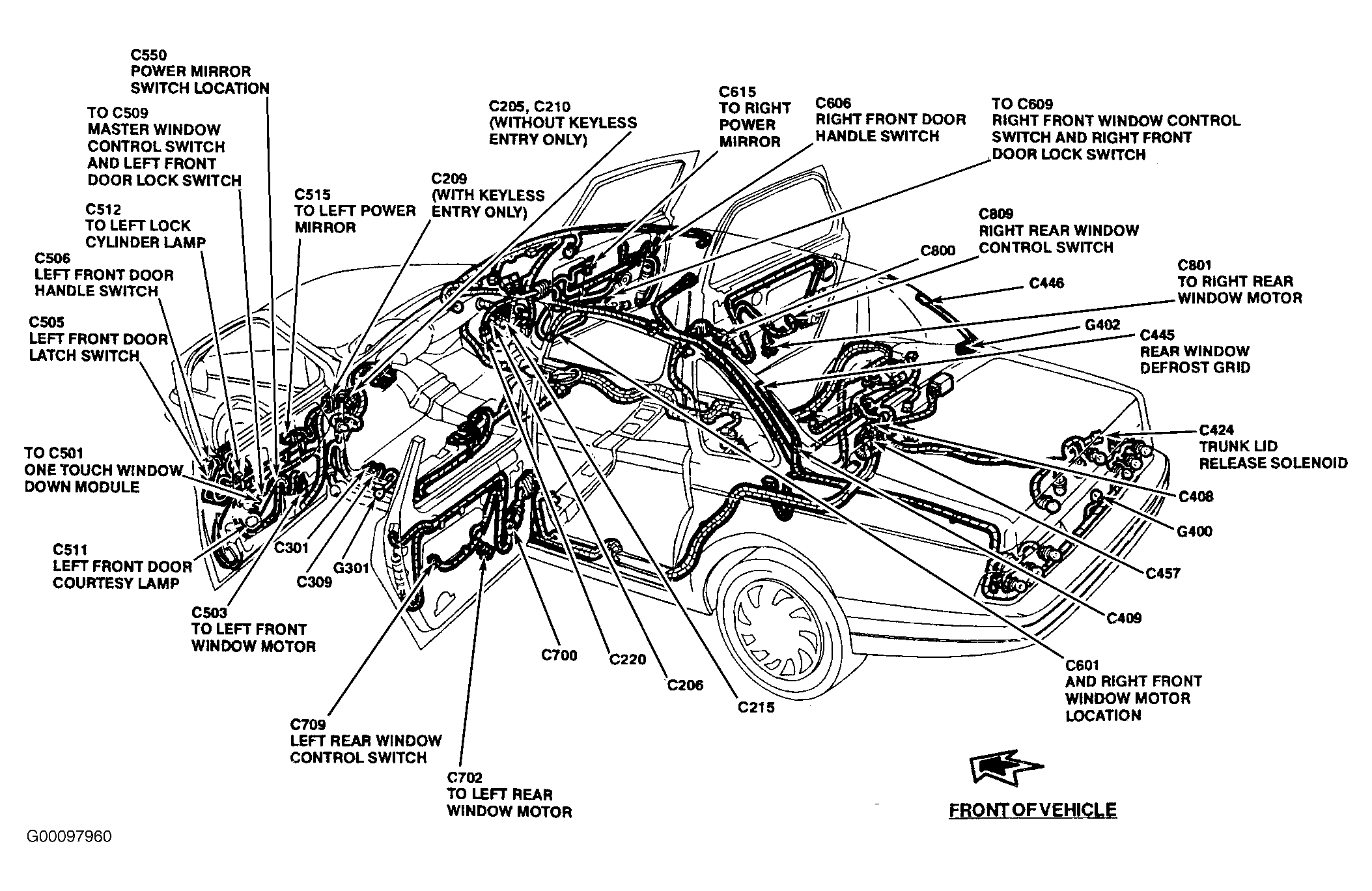

Fig 1: Locating Ground G301

Courtesy of FORD MOTOR CO.

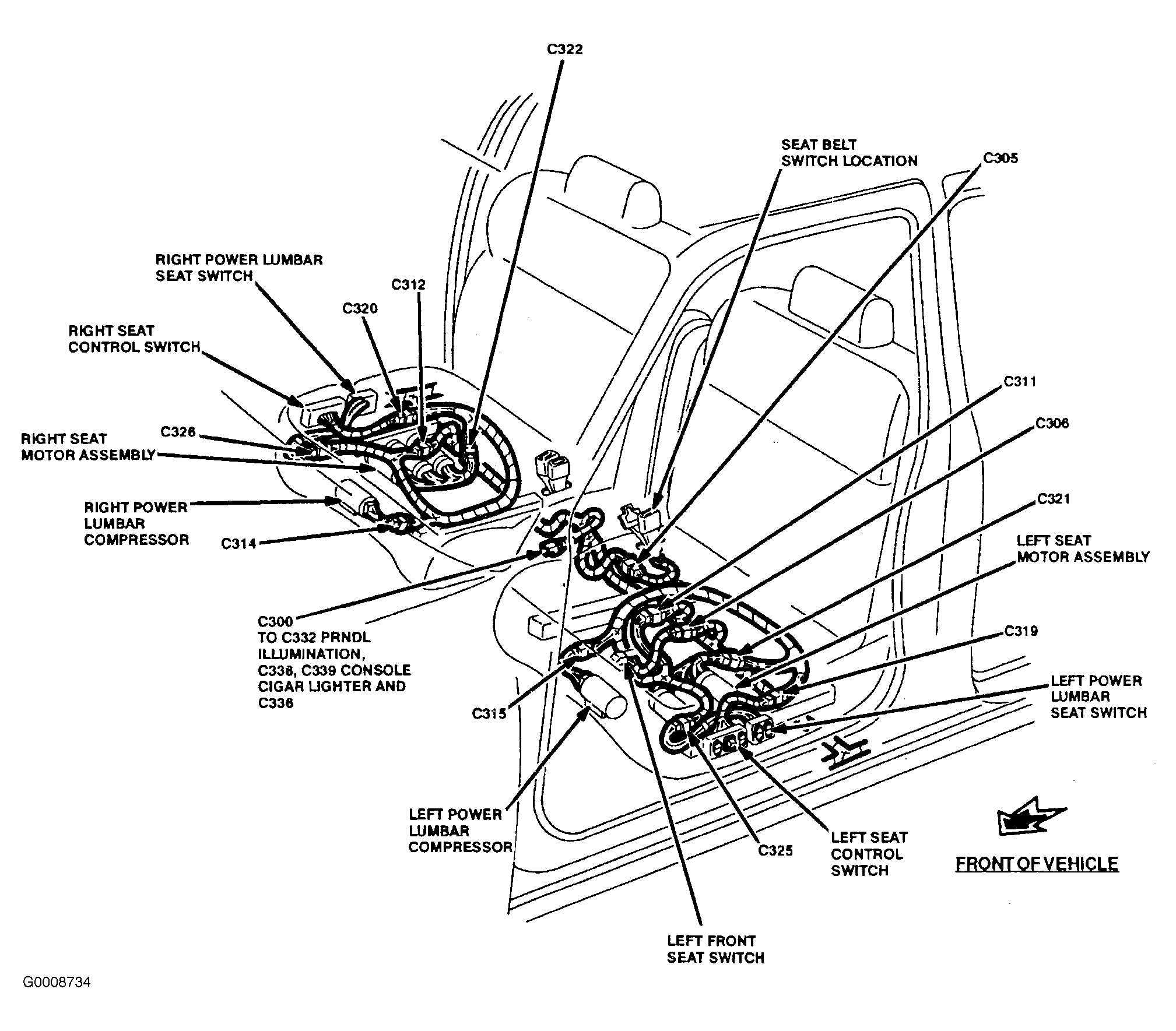

Fig 2: Exploded View/Location Of Power Seat & Lumbar Support

Courtesy of FORD MOTOR CO.

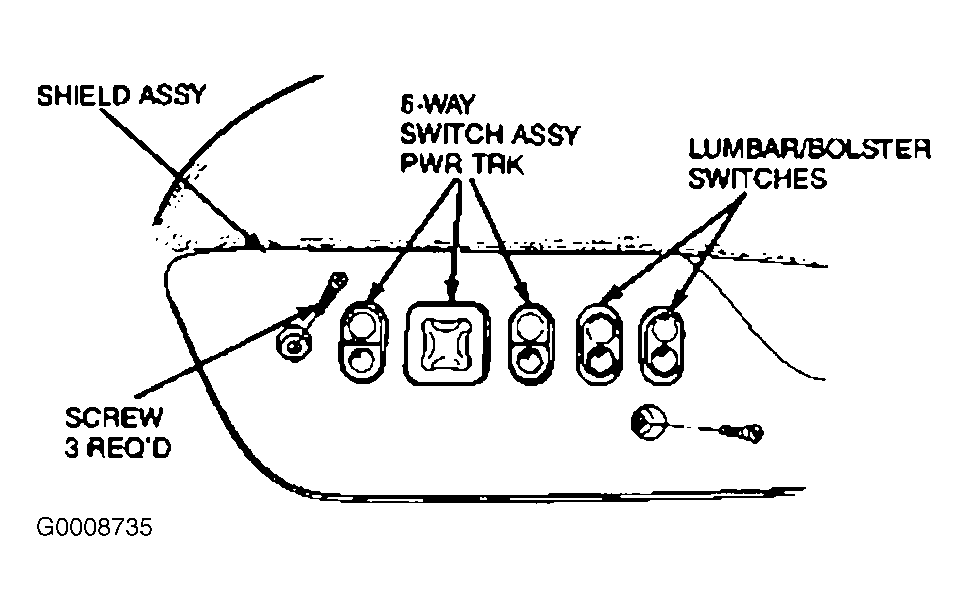

Fig 3: Power Seat/Lumbar Support Switches

Courtesy of FORD MOTOR CO.
