Steering Control Module: Locations

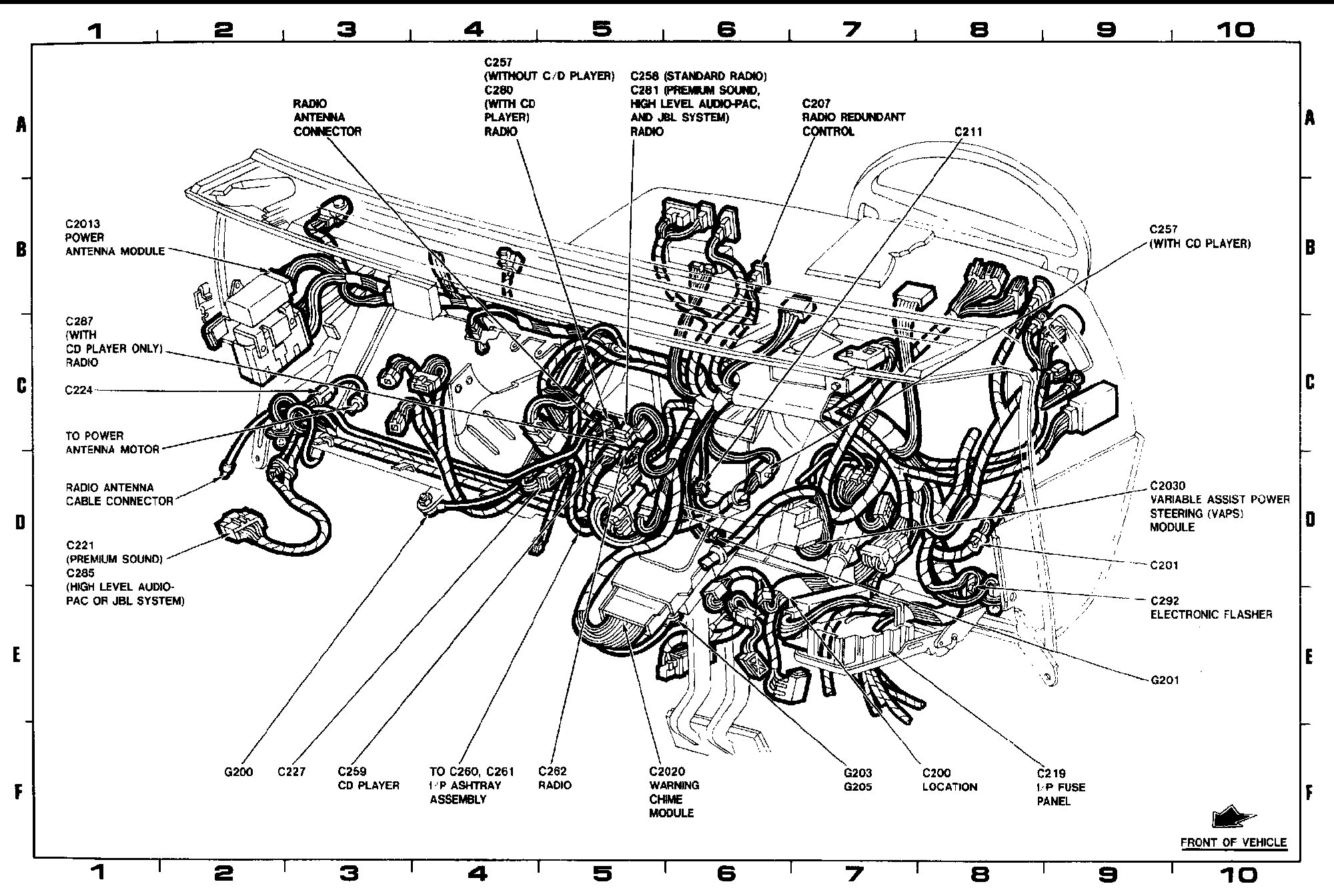

View 151-12:






Behind LH Side Of I/P, RH Side Of Steering Column shown on image at D10.
