Throttle Position Sensor: Locations

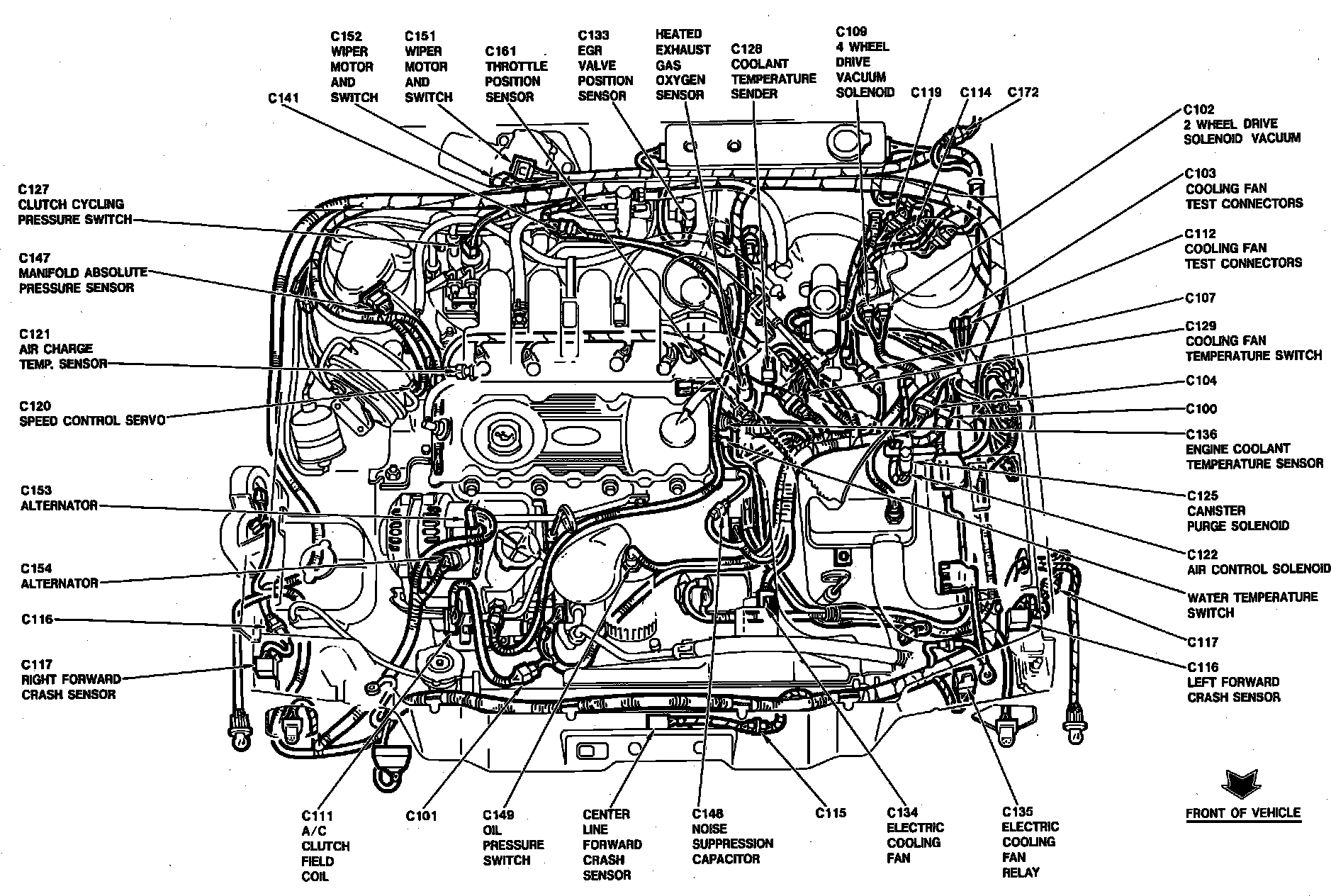

Engine Compartment Components.:

Top LH Side Of Engine

Applicable to: 1991 2.3L/4-140

Engine Compartment Components.:

Top LH Side Of Engine

Applicable to: 1992 2.3L/4-140

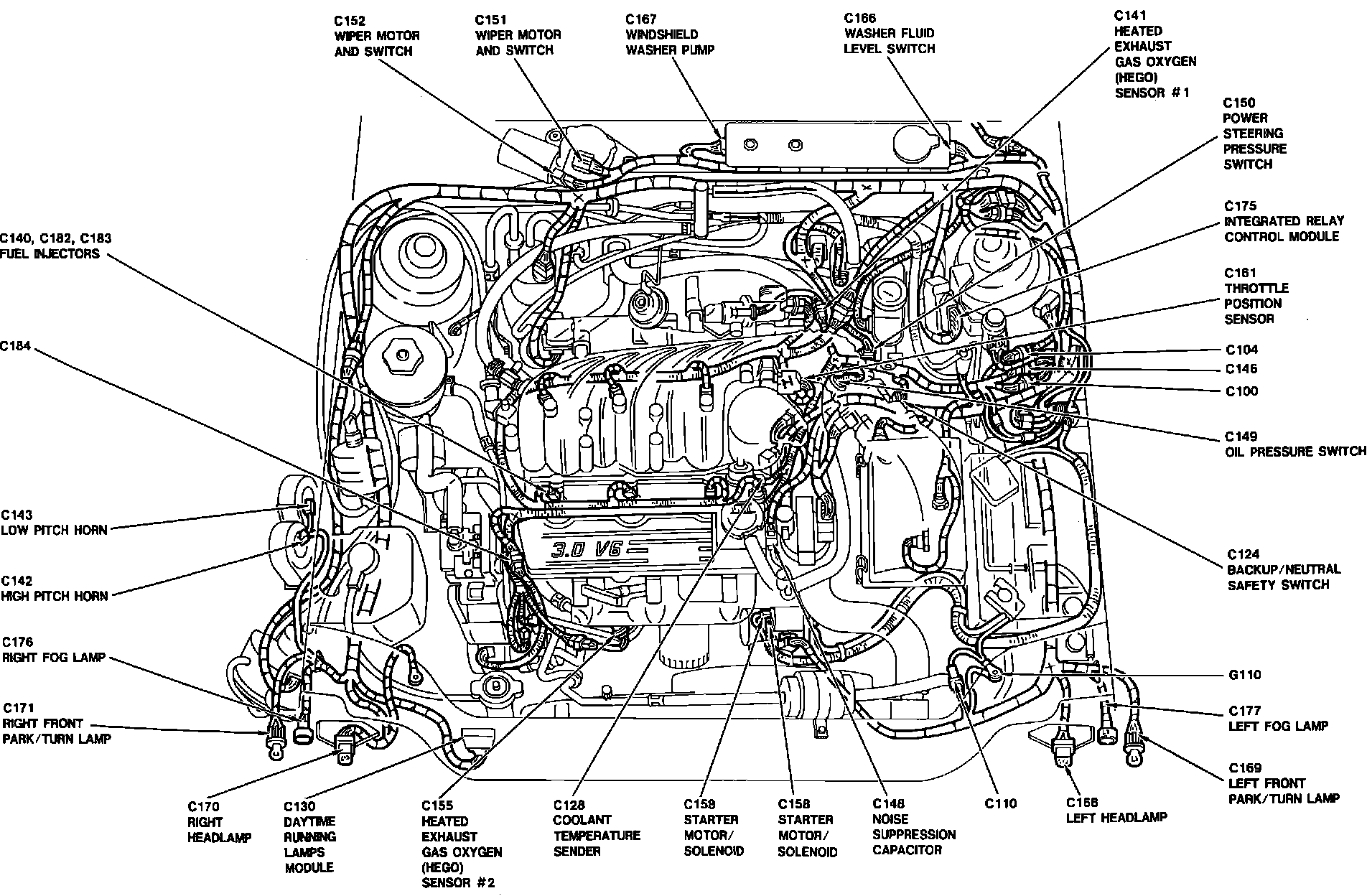

Engine Compartment Components.:

Top LH Side Of Engine

Applicable to: 3.0L/V6-181
