Passenger Switch

NOTE: The switch should be oriented so that the ribbed portion of the switch knob is to the right and you are looking at the five terminals.
  1. With the switch in the NEUTRAL position, there should be continuity between terminals 1 and 2 and terminals 3 and 4. Terminal 5 should be disconnected from all other terminals. See Fig 1 .
  2. When the ribbed portion of the switch rocker knob is pushed (to close the windows), there should be continuity between terminals 1 and 5 and terminals 3 and 4. Terminal 2 should be disconnected from all other terminals.
  3. When the flat portion of the switch rocker knob is pushed (to open the windows), there should be continuity between terminals 1 and 2 and terminals 4 and 5. Terminal 3 should be disconnected from all other terminals.
  4. If the switch assembly does not test as outlined, replace the switch.

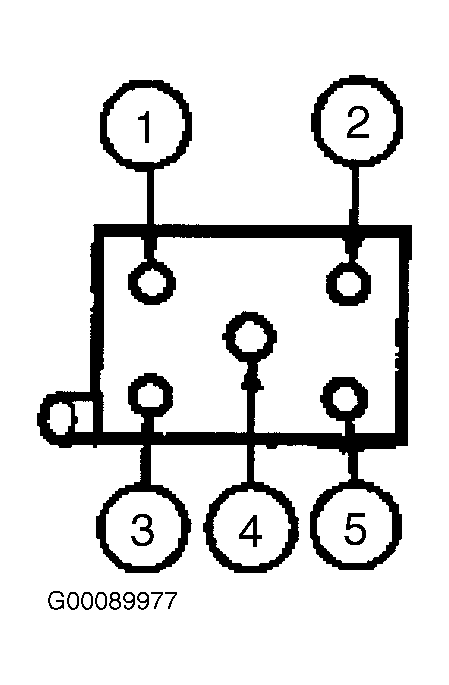

Fig 1: Identifying passenger Power Window Switch Terminals
G00089977Courtesy of FORD MOTOR CO.
