Quick Tests

On vehicles with standard suspension, use EVO System Tester (1005-000007). On vehicles with air suspension, use EVO System Tester (007-0041A).

QUICK TEST procedures A1-G3 apply to vehicles with or without air suspension. QUICK TEST procedures H1-K2 apply only to vehicles with air suspension.

NOTE: Jumper test wire must be fabricated to connect EVO control module in trunk to test connectors in passenger compartment for QUICK TEST procedures. See Fig 1 .

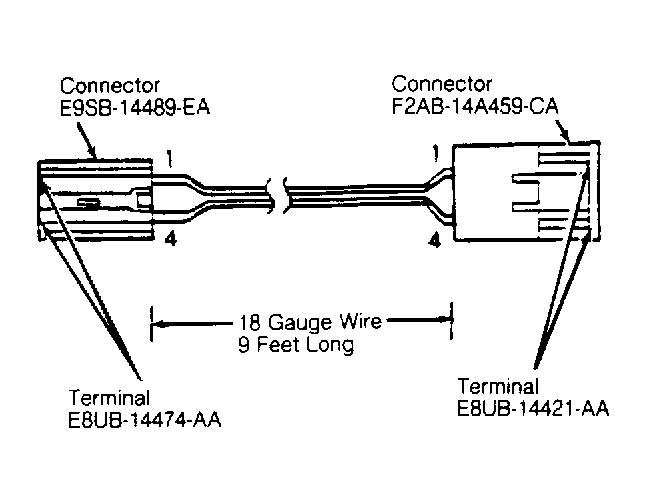

Fig 1: Making Jumper Test Wire

Courtesy of FORD MOTOR CO.

NOTE: In the following diagnostic tests, illustrations are provided courtesy of Ford Motor Co.
