AODE-W

Manual Lever Position (MLP) Sensor

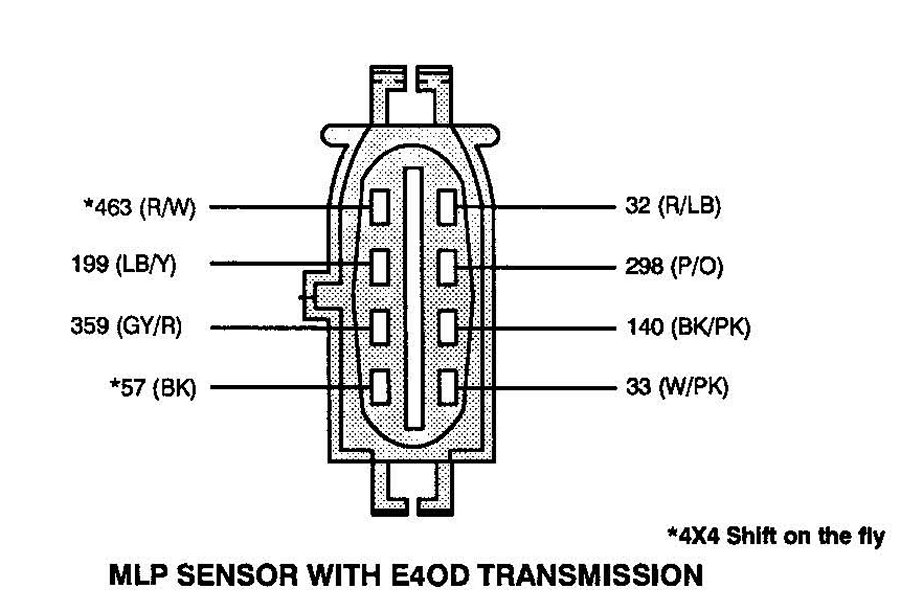

Terminal Locations:

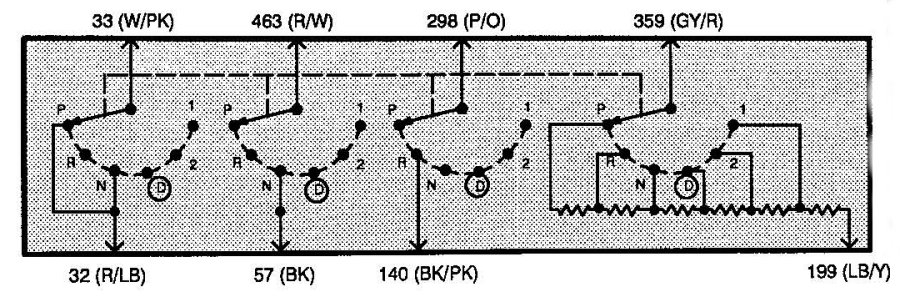

Schematics:

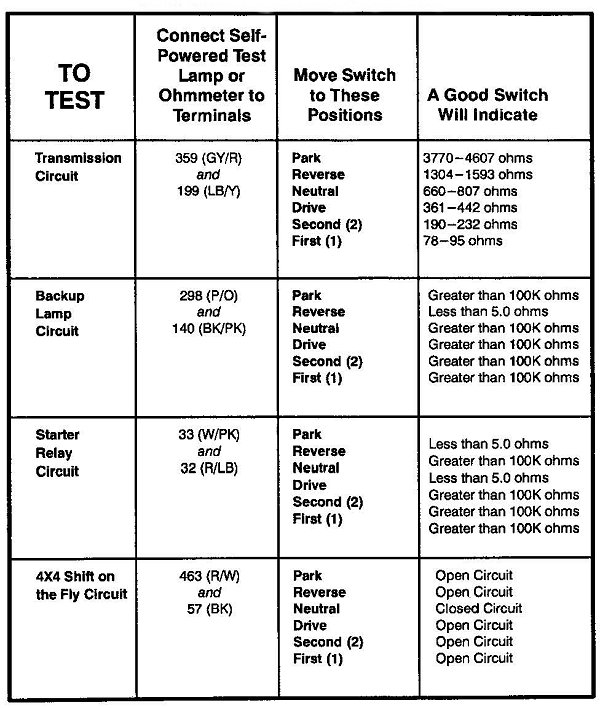

Component Testing Procedure:

Description-The Manual Lever Position (MLP) Sensor sends a signal to the PCM. This indicates the position of the shift lever (P, R, N, D, 2 or 1). The MLP is located on the outside of the transmission at the manual lever.

Transmission function-Determines desired gear and EPC pressure.

Symptoms-Engagement concerns, wrong gear, no shifts.

Fault Codes-634 and 522 (three digit). Refer to Manufacturer Code Charts
