Transmission Position Sensor/Switch: Locations




Manual Lever Position Switch

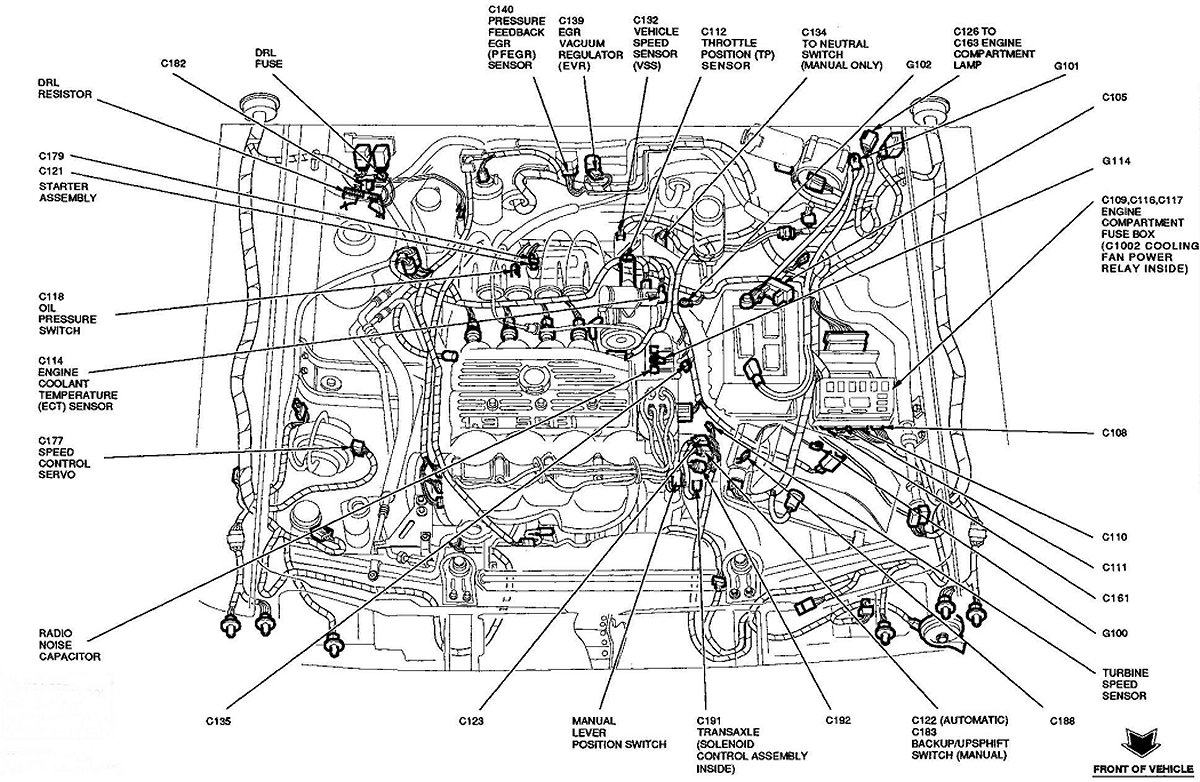

1.8L Engine:

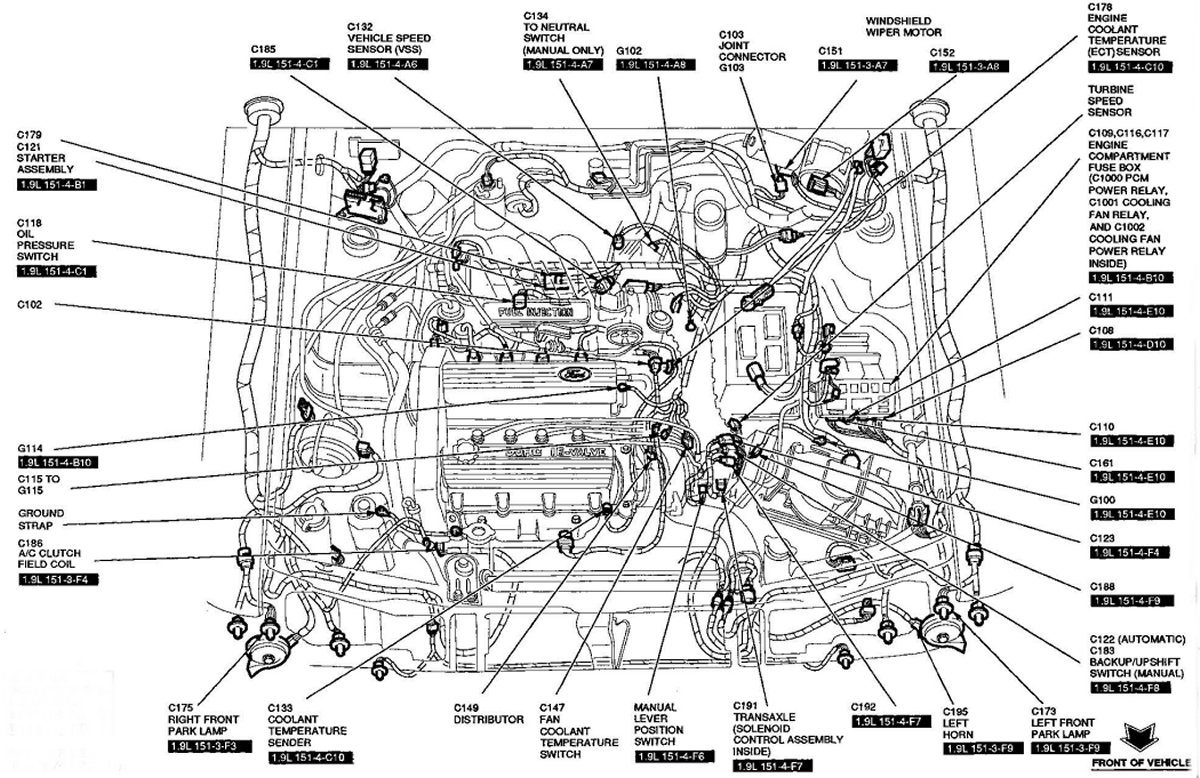

1.9L Engine:






MLP is located LH side of engine, on top of transaxle.
