Wiper Control Module: Locations

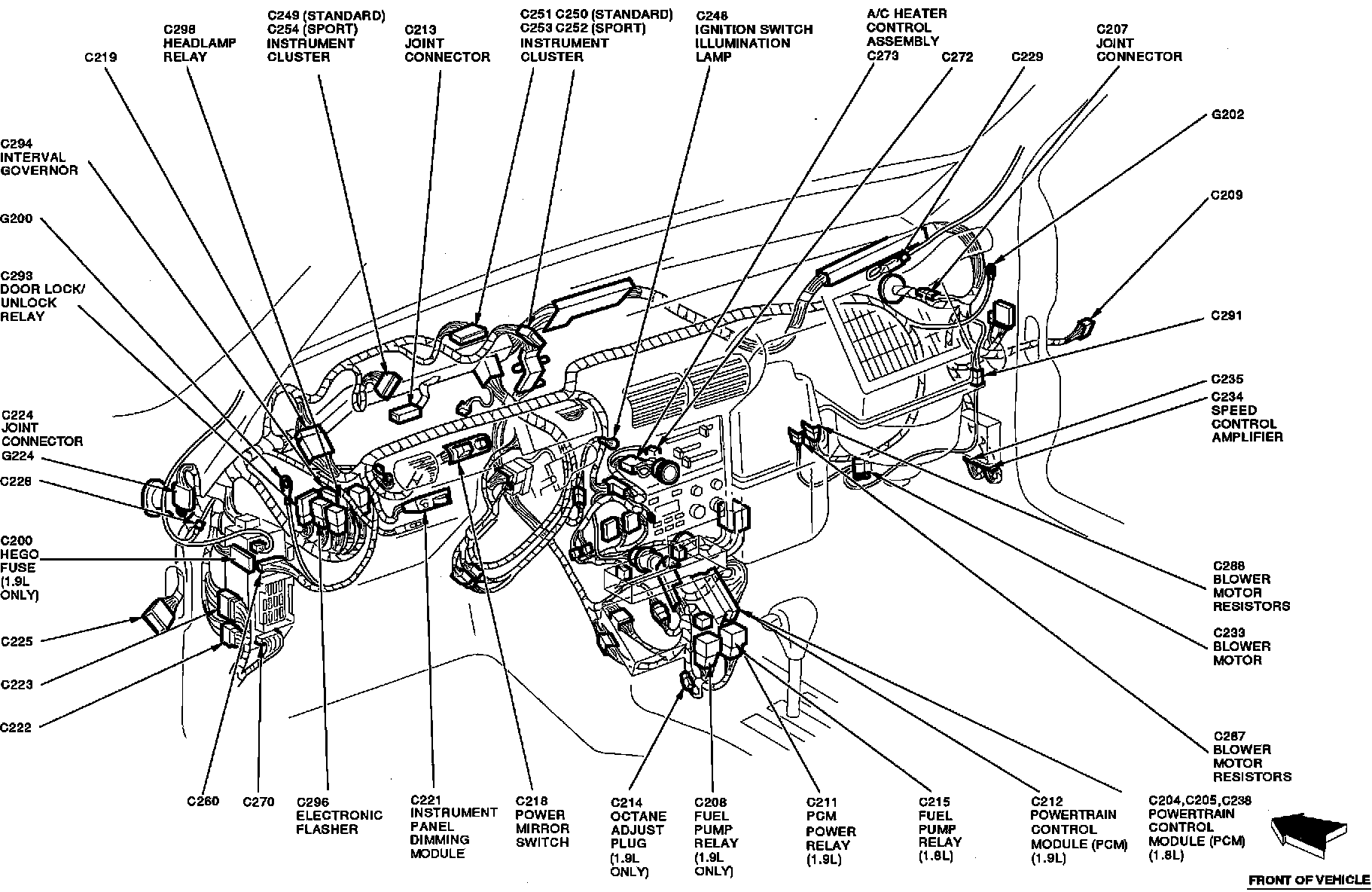

Underdash View:





The Interval Governor is located behind the LH side of the instrument panel, near the cowl.
