With California Emissions

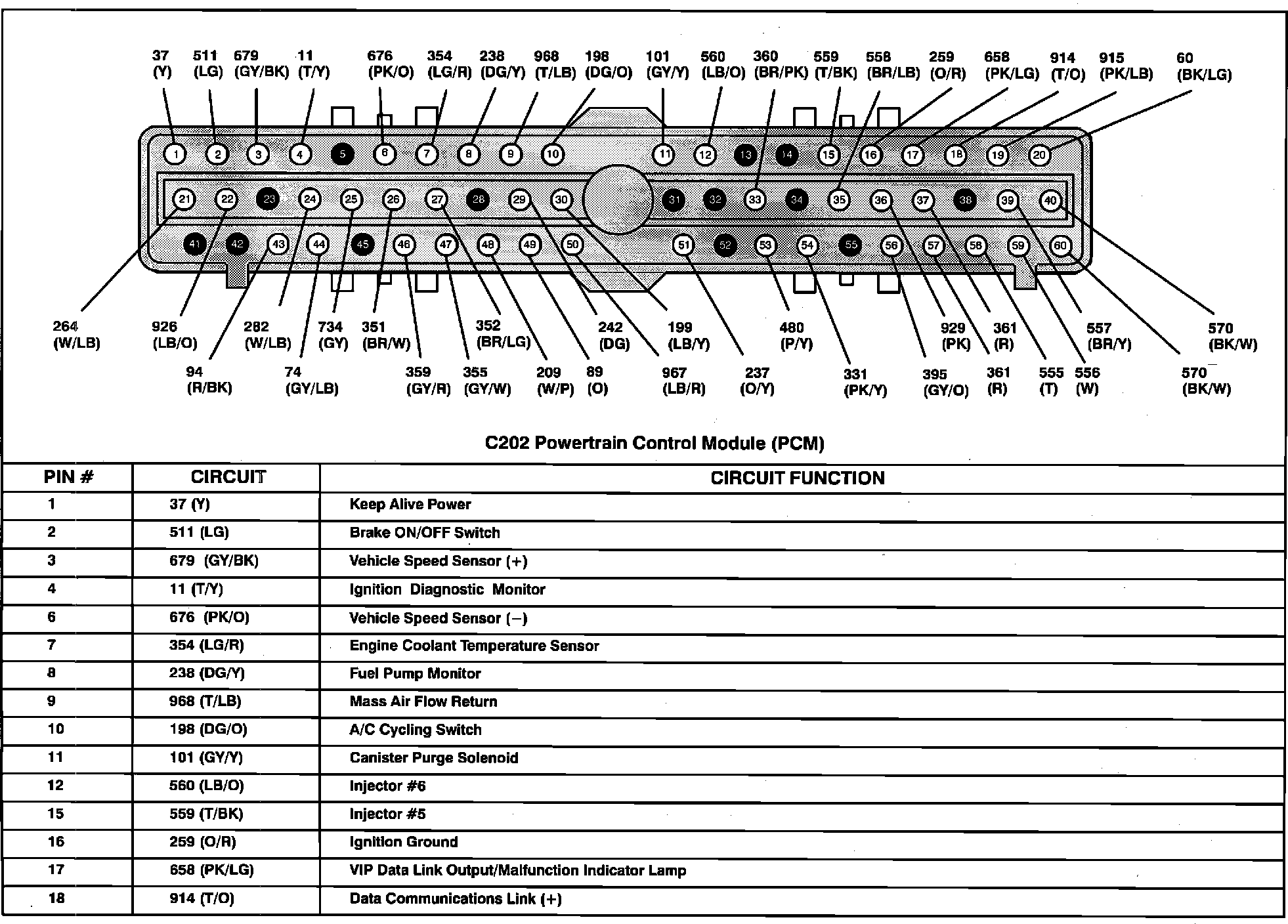

Powertrain Control Module (PCM):

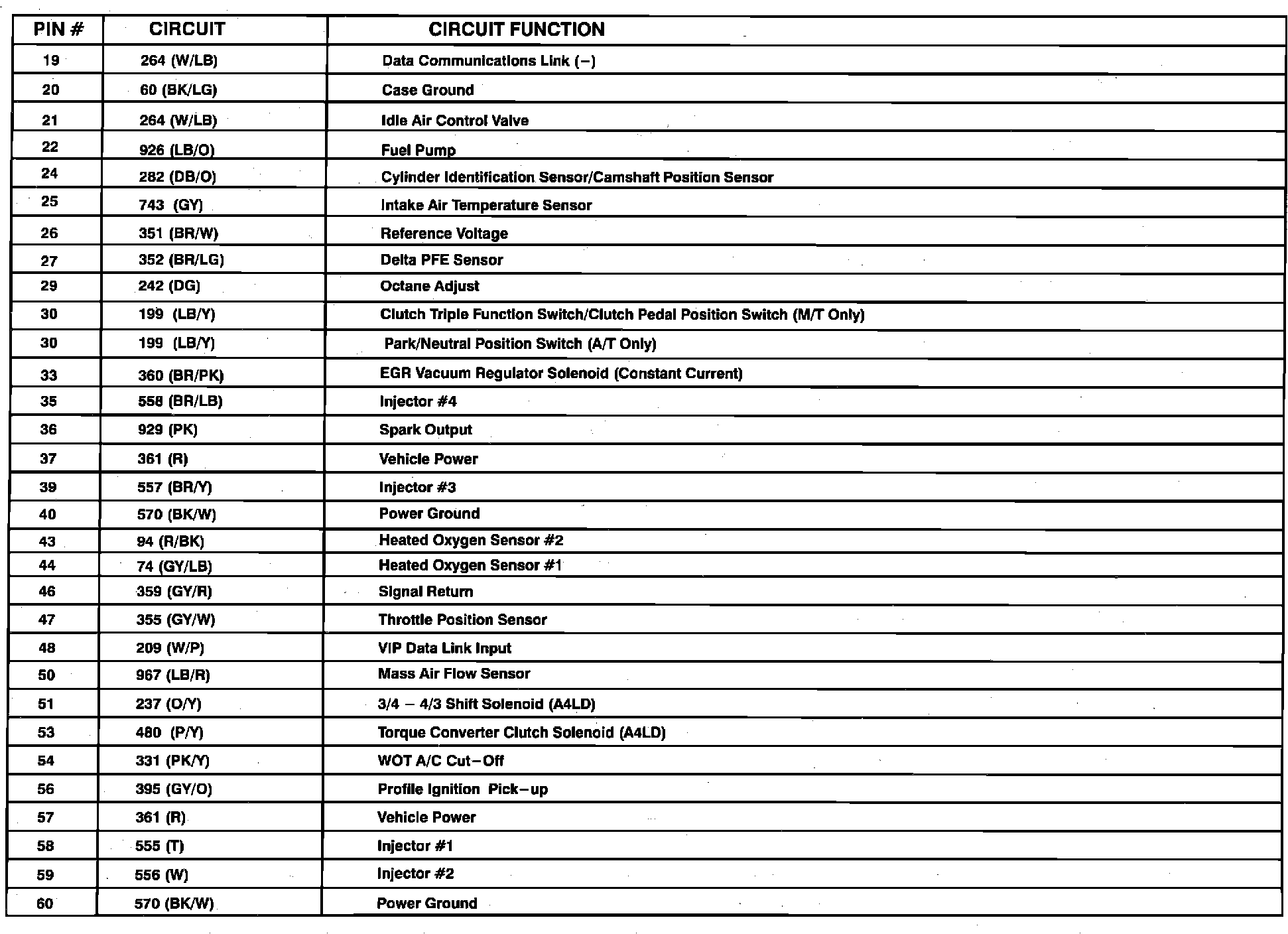

Powertrain Control Module (PCM) Circuit Function:

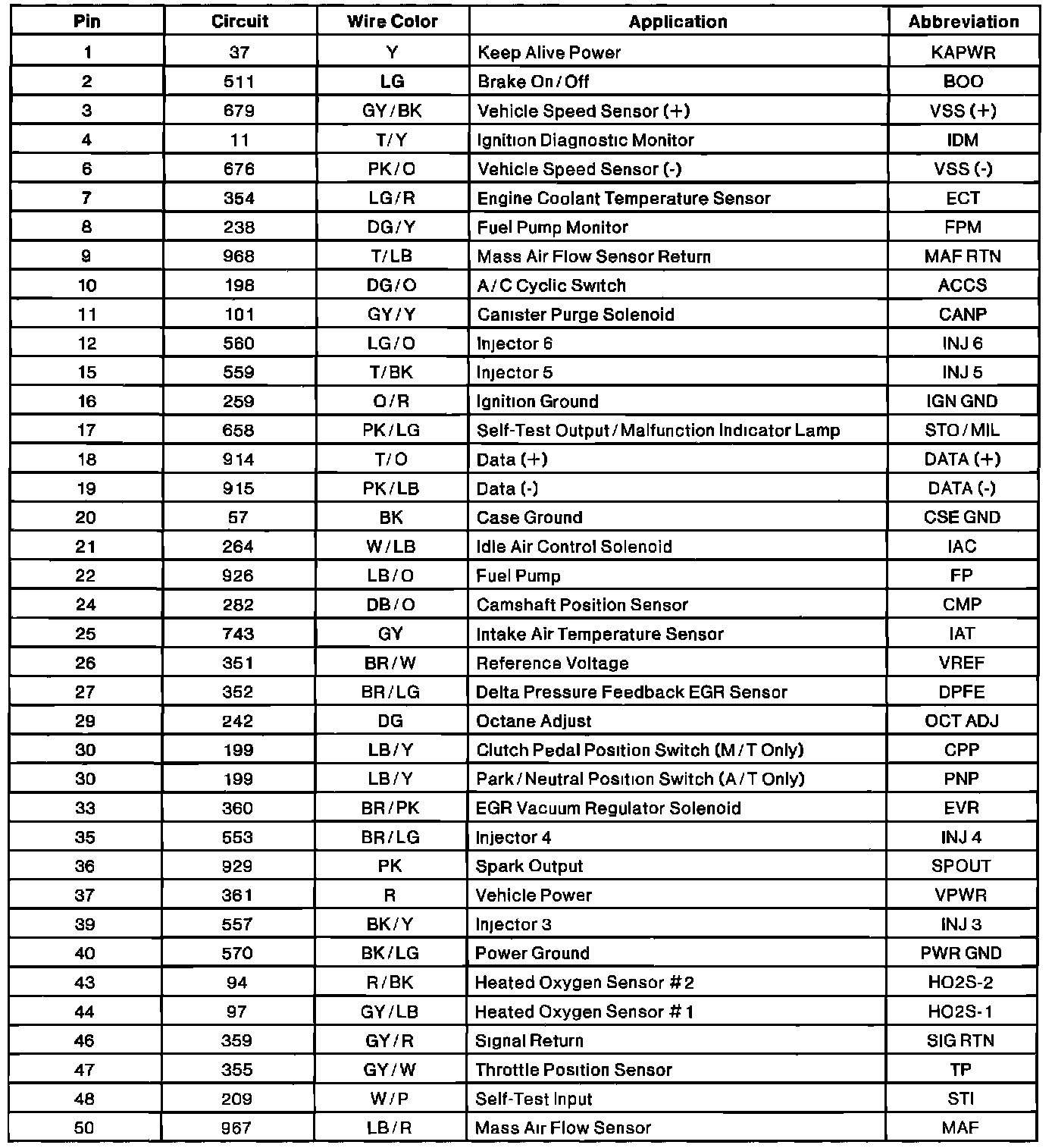

Powertrain Control Module (PCM) Connector Pin Useage:

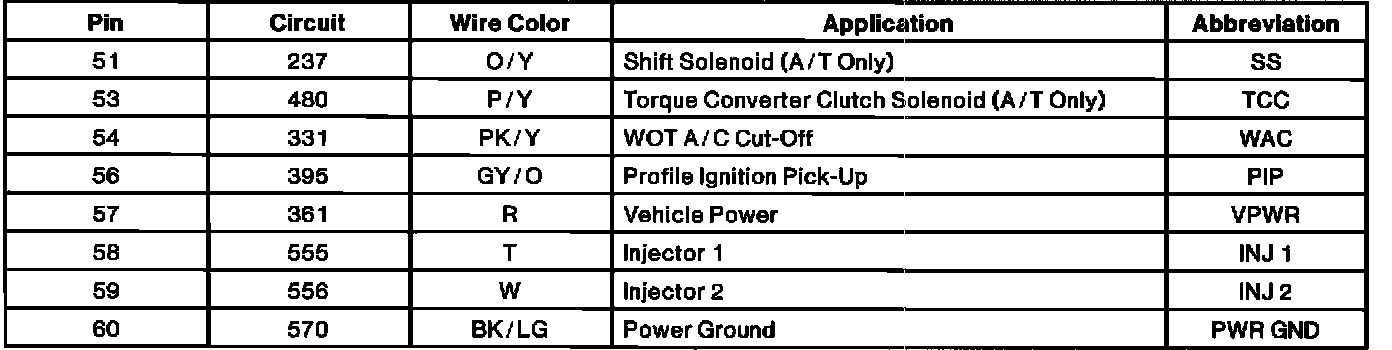

Powertrain Control Module (PCM) Connector Pin Useage:
