Section 3 (Engine Controls - Tests W/Codes - 2.3L)
>>
Service Code-To-Test Reference Menu
>>
3-Digit Service Code-To-Test Menu (Codes 223-543)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
3-Digit Service Code-To-Test Menu (Codes 223-543)
WARNING:
This page is about a different car, the 1993 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

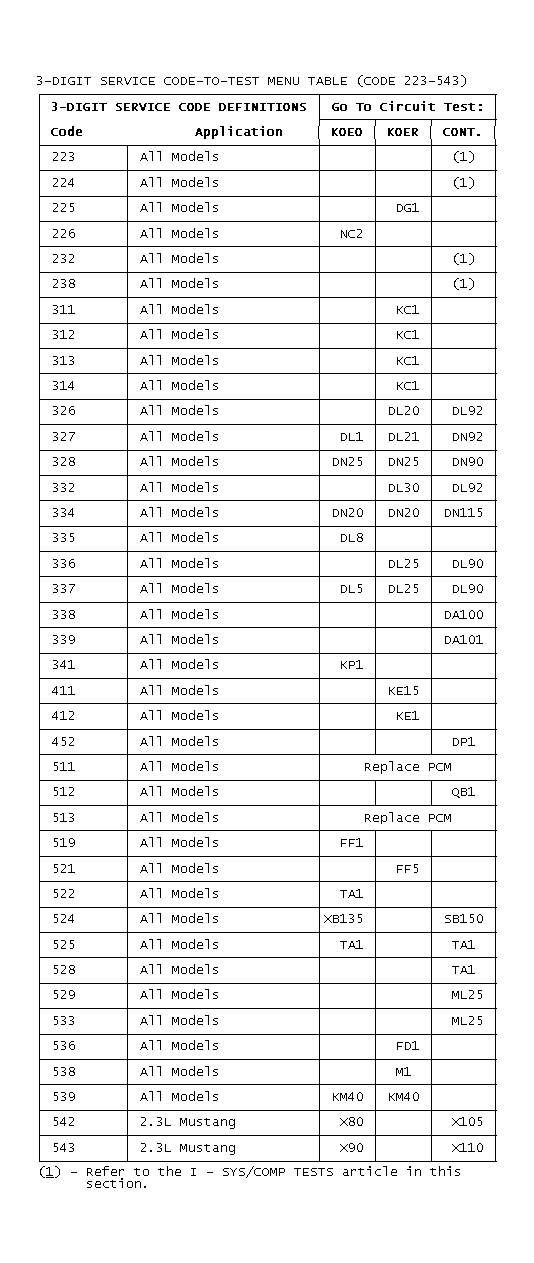

Fig 1: 3-DIGIT SERVICE CODE-TO-TEST MENU TABLE (CODE 223-543)
