Cruise Control Servo Cable: Service and Repair

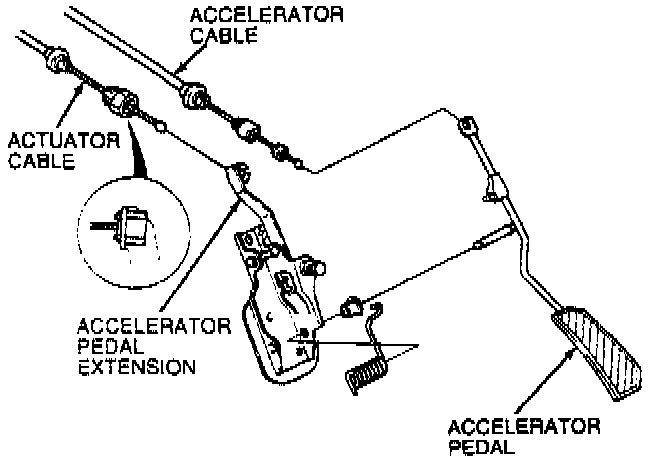

Fig. 108 Accelerator Cable Replacement:

1. Disconnect actuator cable from accelerator pedal extension, Fig 108.
2. Remove actuator as previously outlined.
3. Detach actuator cable sealing grommet from bulkhead.
4. Remove actuator cable from vehicle.
5. Reverse procedure to install. Adjust cable after installation
