Cruise Control Servo: Service and Repair

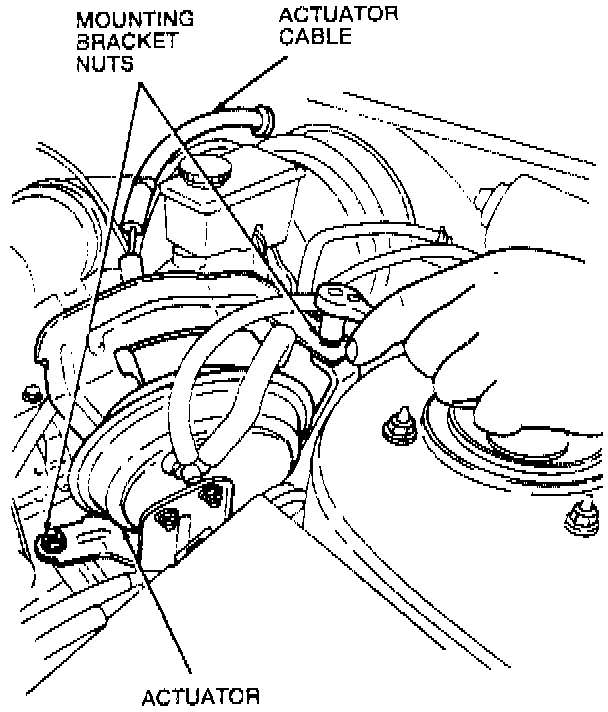

Fig. 107 Actuator Replacement:

1. Disconnect battery ground cable.
2. Remove two mounting bracket nuts, Fig 107.
3. Disconnect actuator electrical connector.
4. Remove three vacuum hoses.
5. Remove cable adjusting clip from cable housing.
6. Remove two mounting nuts and bracket from cable side of actuator.
7. Slide cable and housing away from actuator.
8. Disconnect cable and remove actuator.
9. Reverse procedure to install.
