With Automatic Transmission

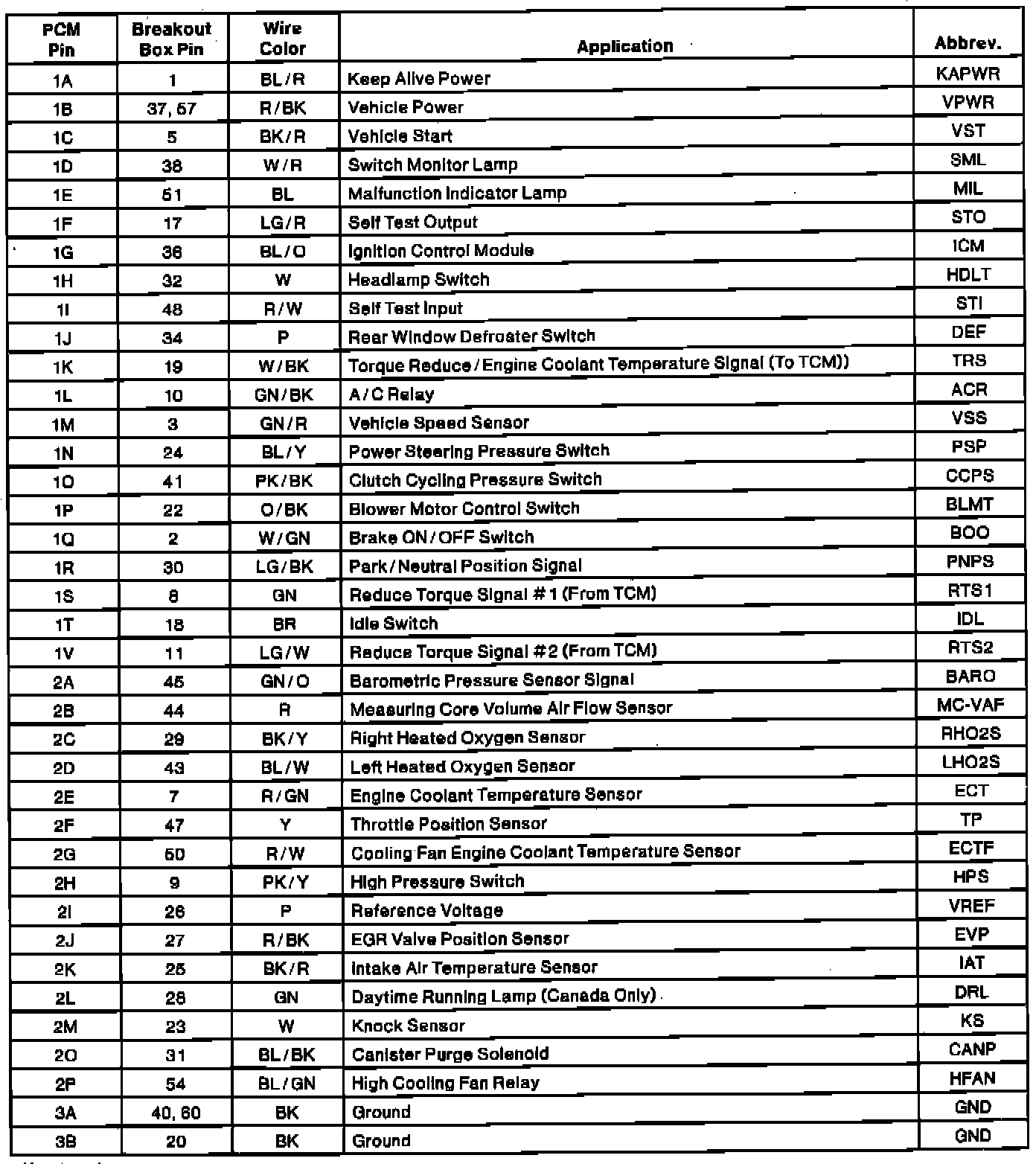

PCM Connector Pin Chart (Part 1, A/T):

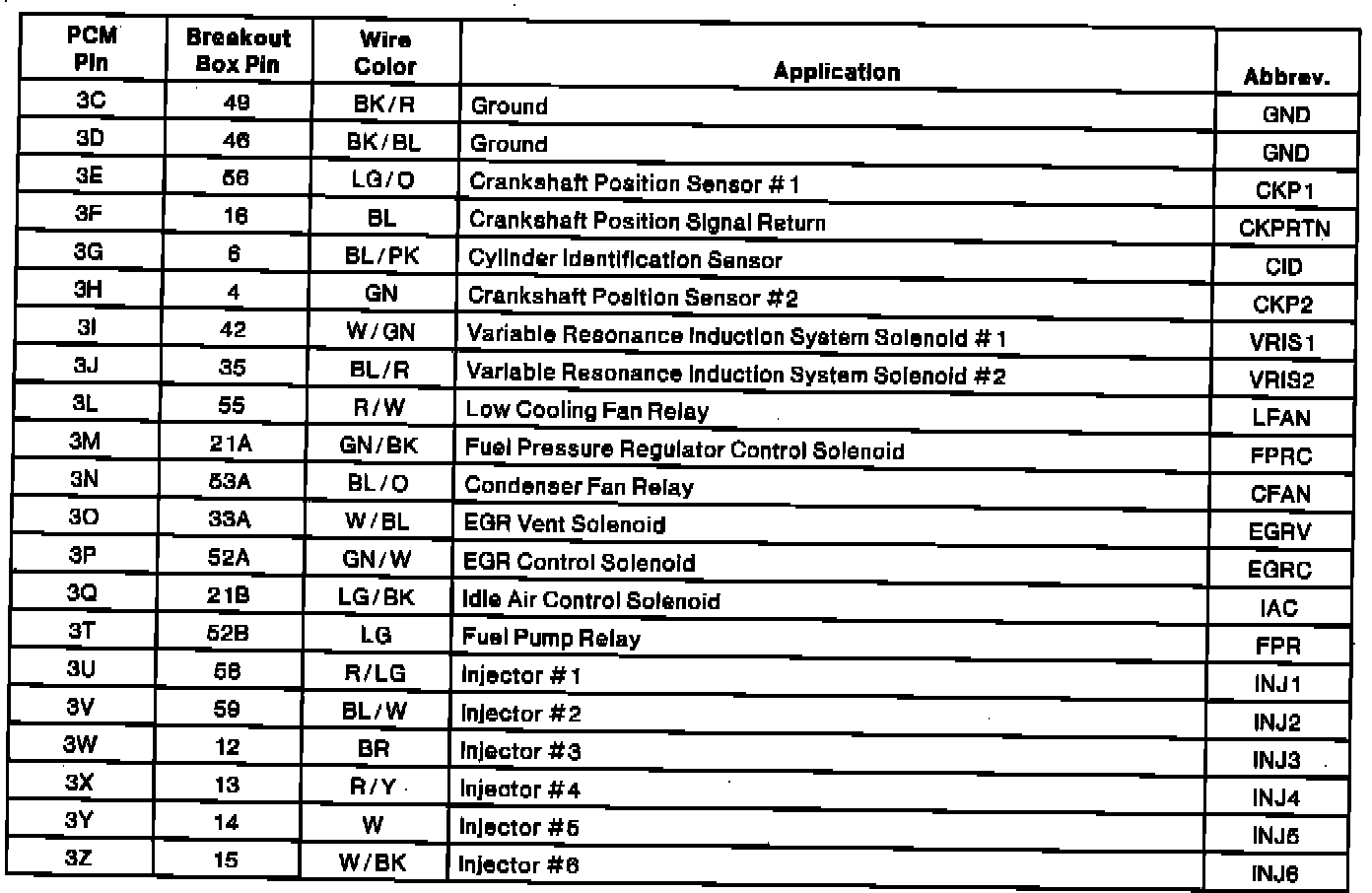

PCM Connector Pin Chart (Part 2, A/T):
