Electronic Brake Control Module: Service and Repair

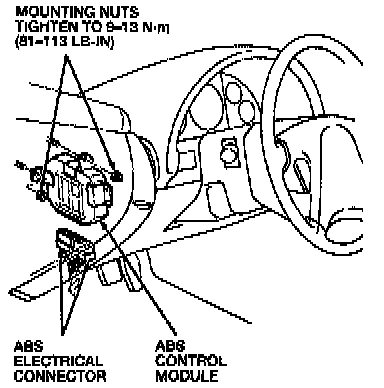

ABS Control Module:

1. Disconnect battery ground cable.
2. Remove driver's side kick panel.
3. Disconnect ABS electrical connector.
4. Remove two module mounting nuts and the control module.
5. Reverse procedure to install.
