Terminal Identification

*** Updated by TSB# 9326B46, Dated December, 1993

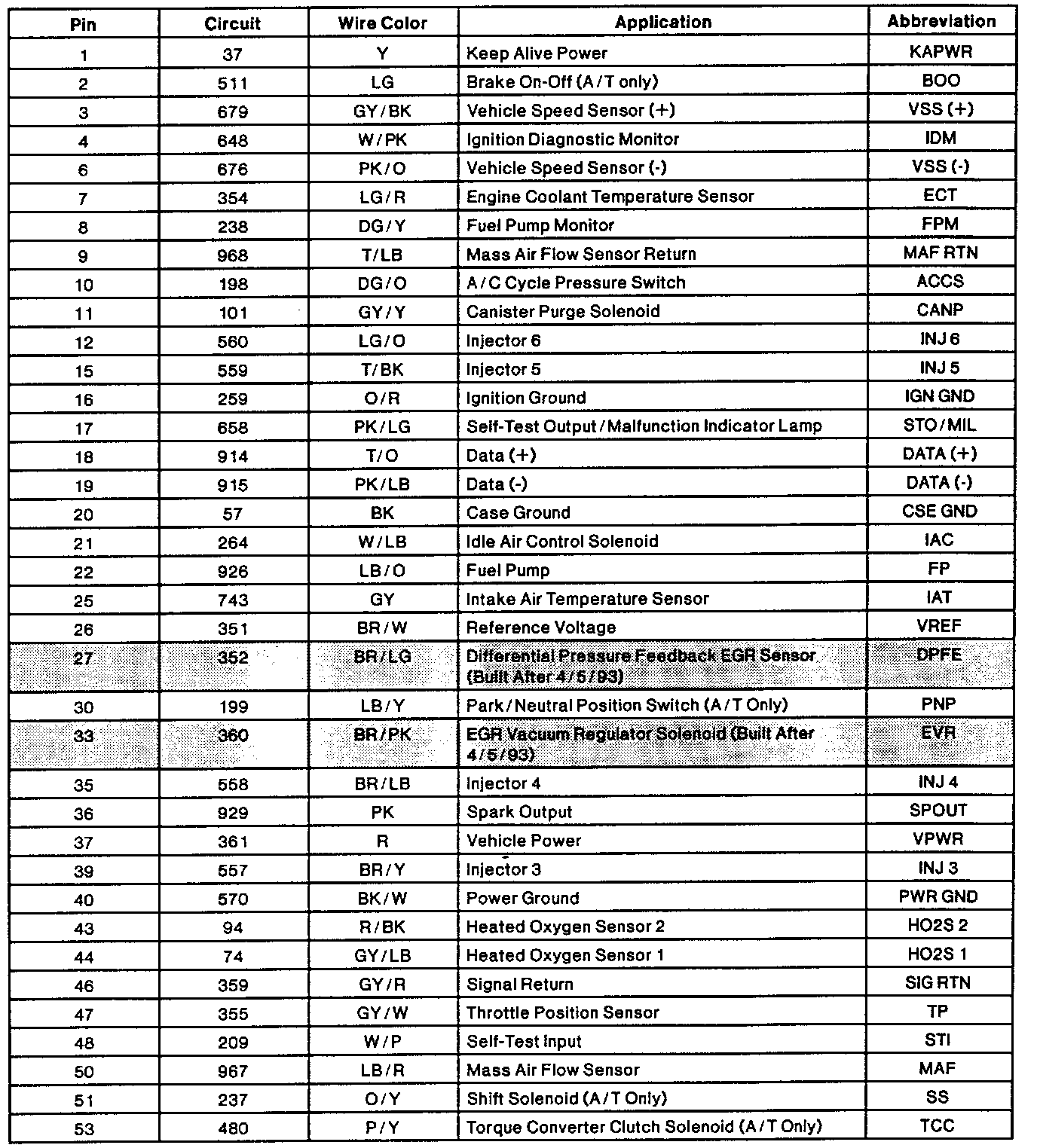

Powertrain Control Module (PCM) Connector Pin Useage:

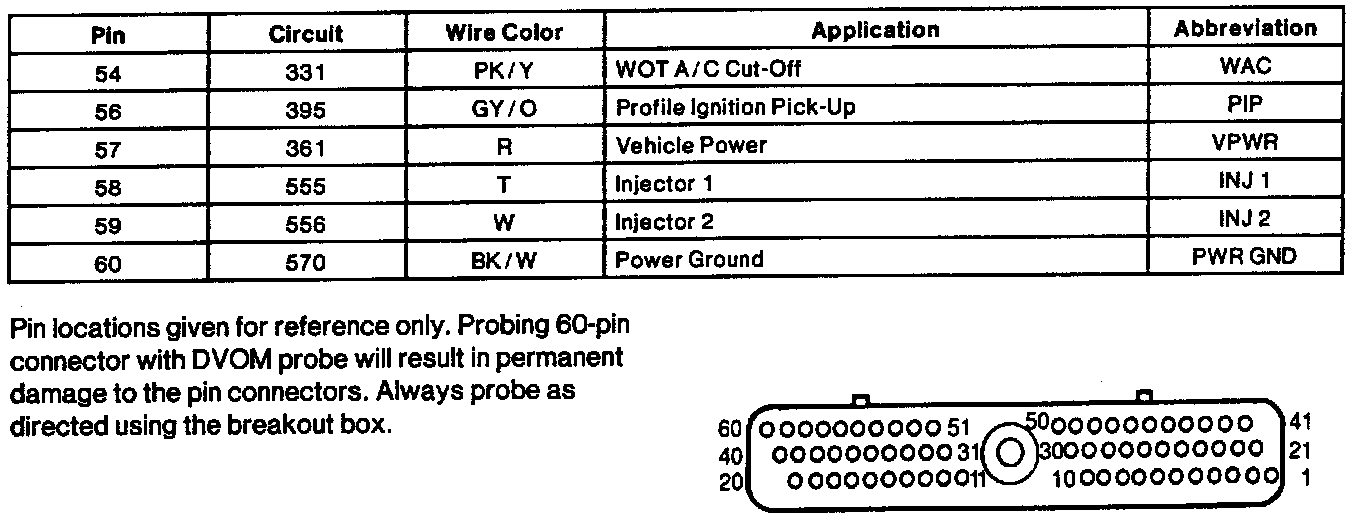

Powertrain Control Module (PCM) Connector Pin Useage:
