With California Emissions

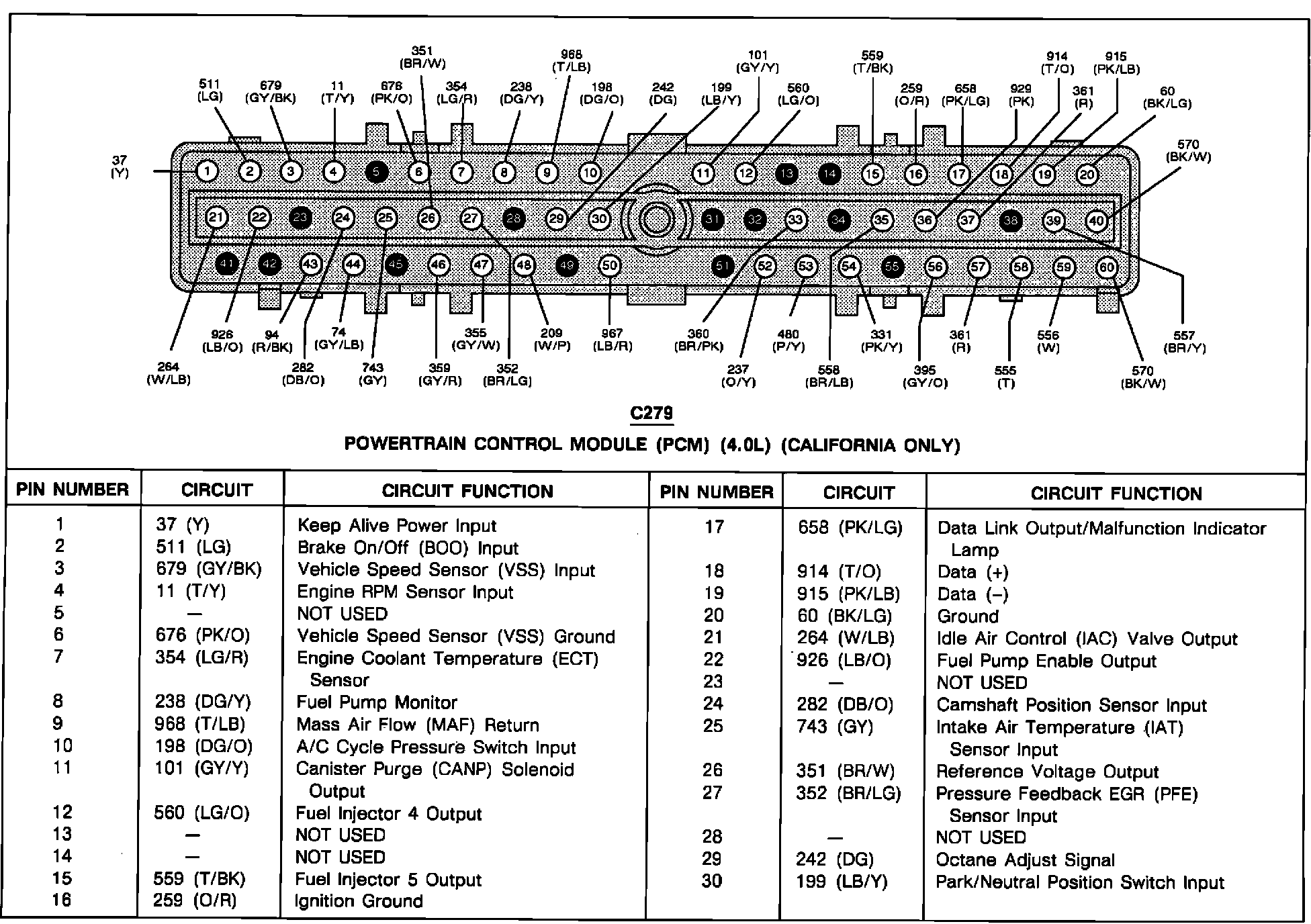

Powertrain Control Module (PCM) 4.0L:



Powertrain Control Module (PCM) Circuit Function 4.0L:

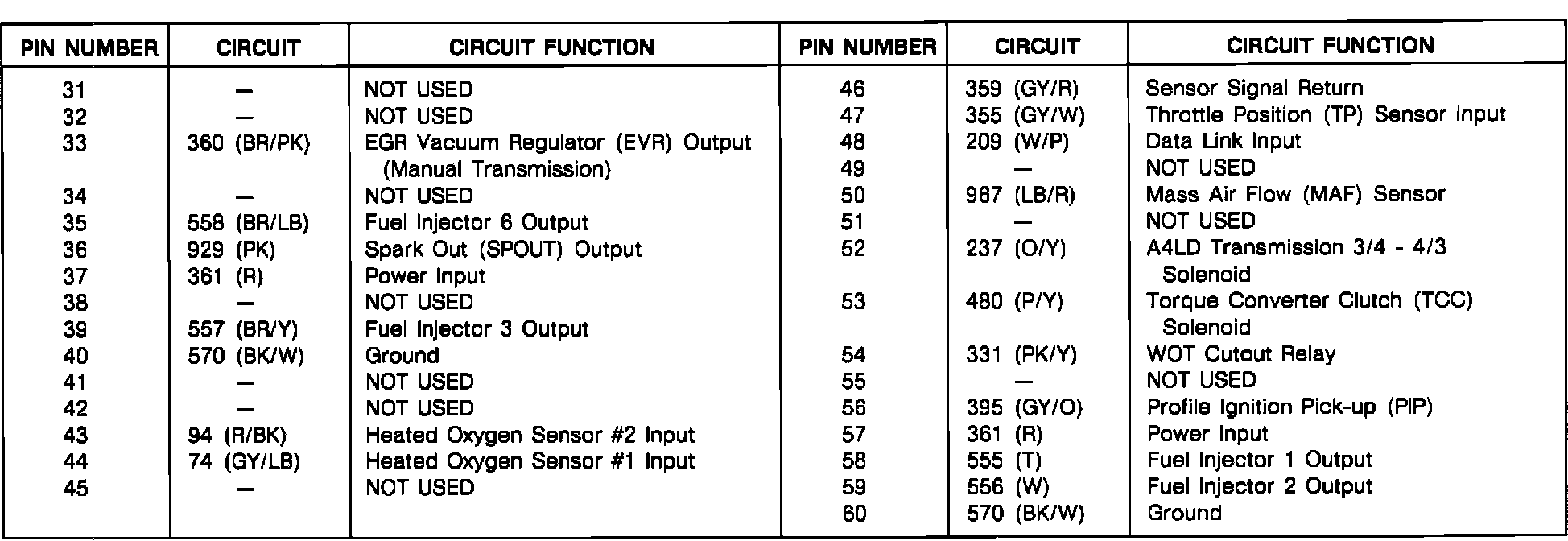

Powertrain Control Module (PCM) Connector Pin Useage:



Powertrain Control Module (PCM) Connector Pin Useage:
