Connector Views

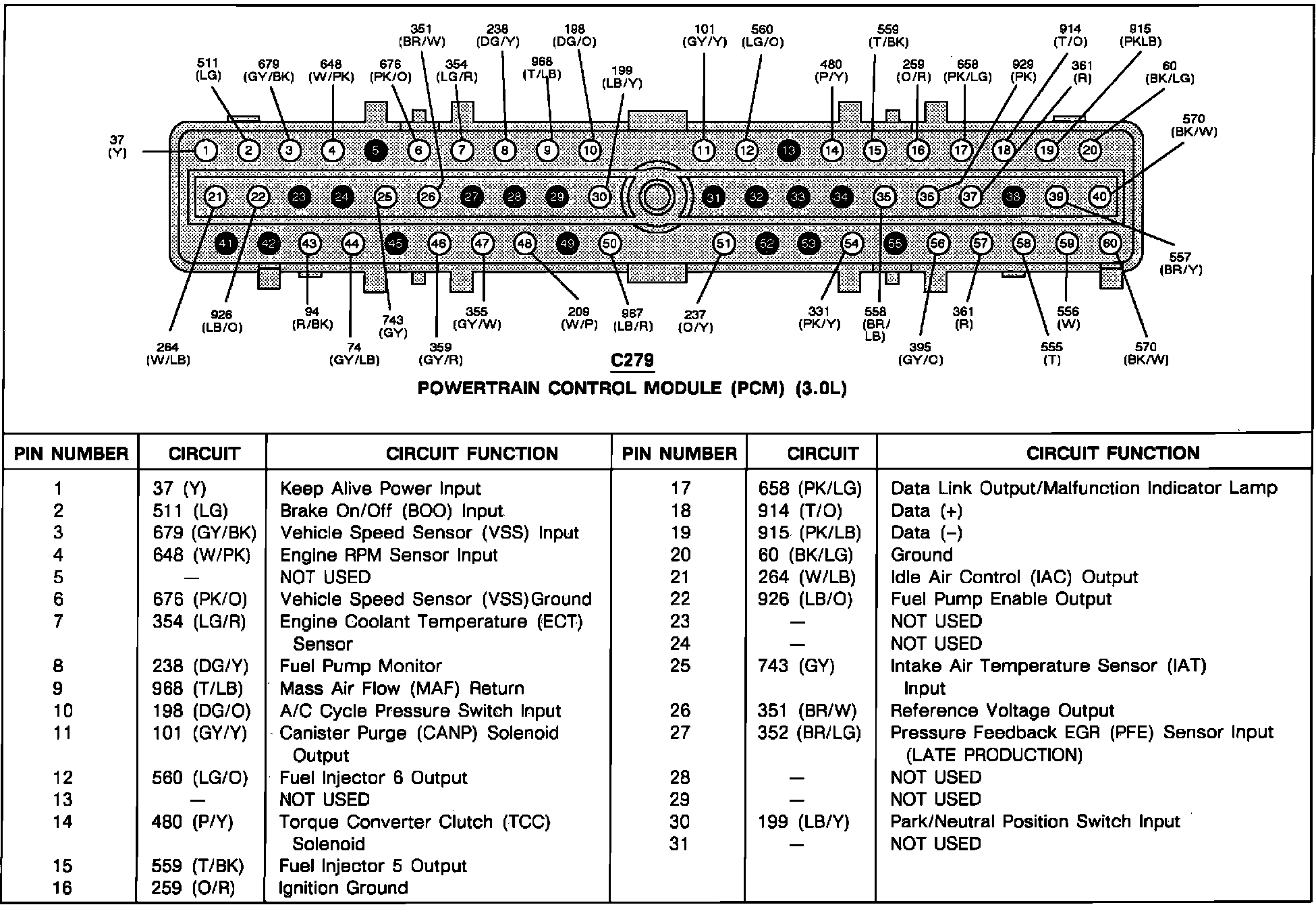

Powertrain Control Module (PCM) 3.0L:

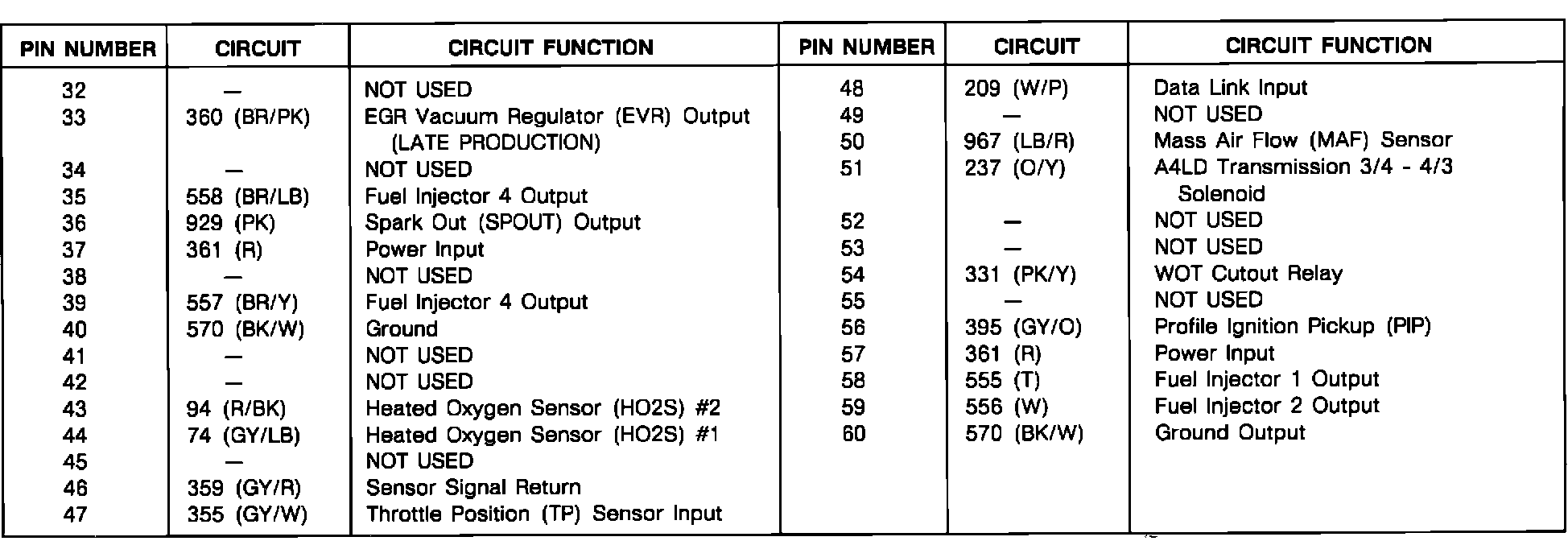

Powertrain Control Module (PCM) Circuit Function 3.0L:
