Electronic Brake Control Module

Anti-Lock Brake Control Module:

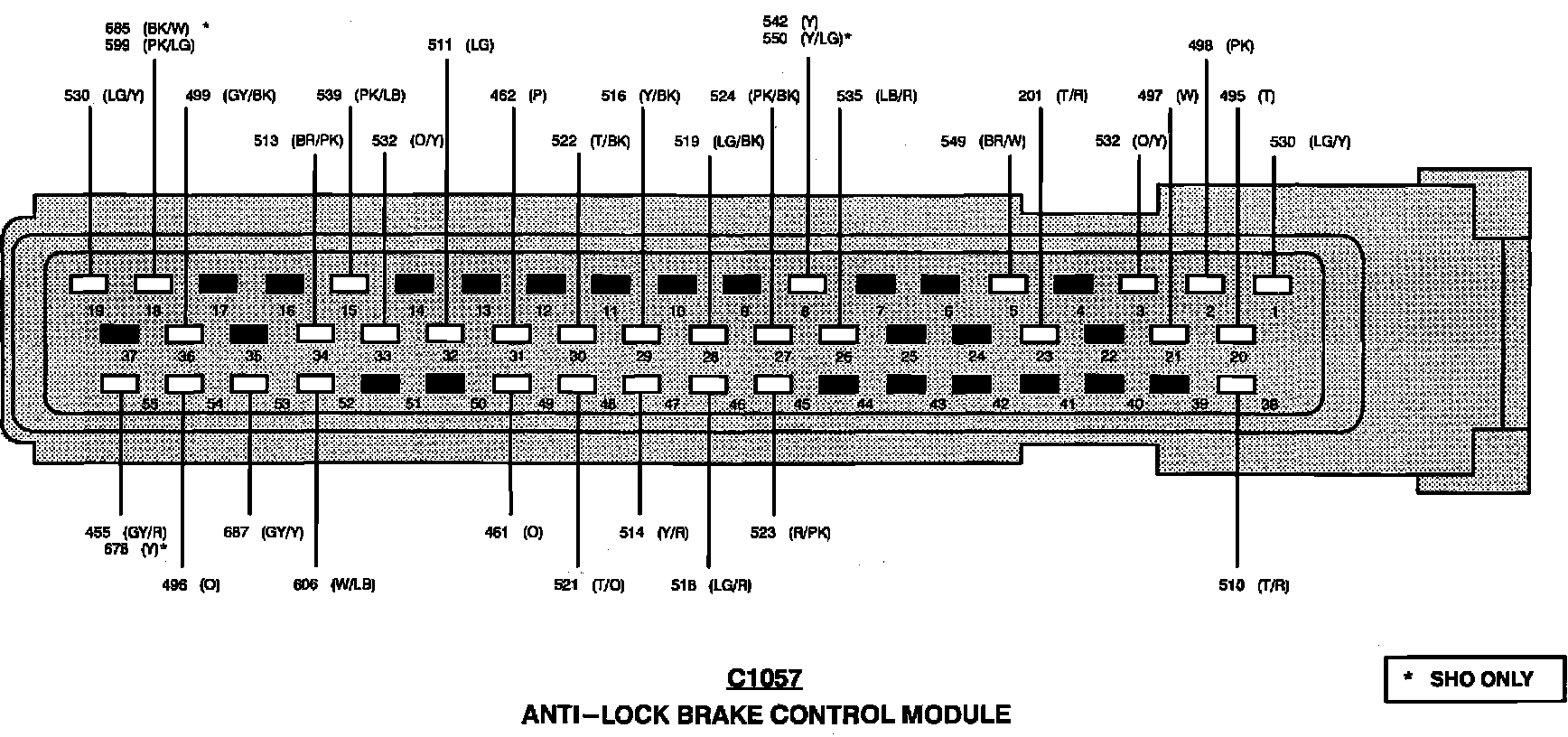

CONNECTOR VIEW


Anti-Lock Brake Control Module:

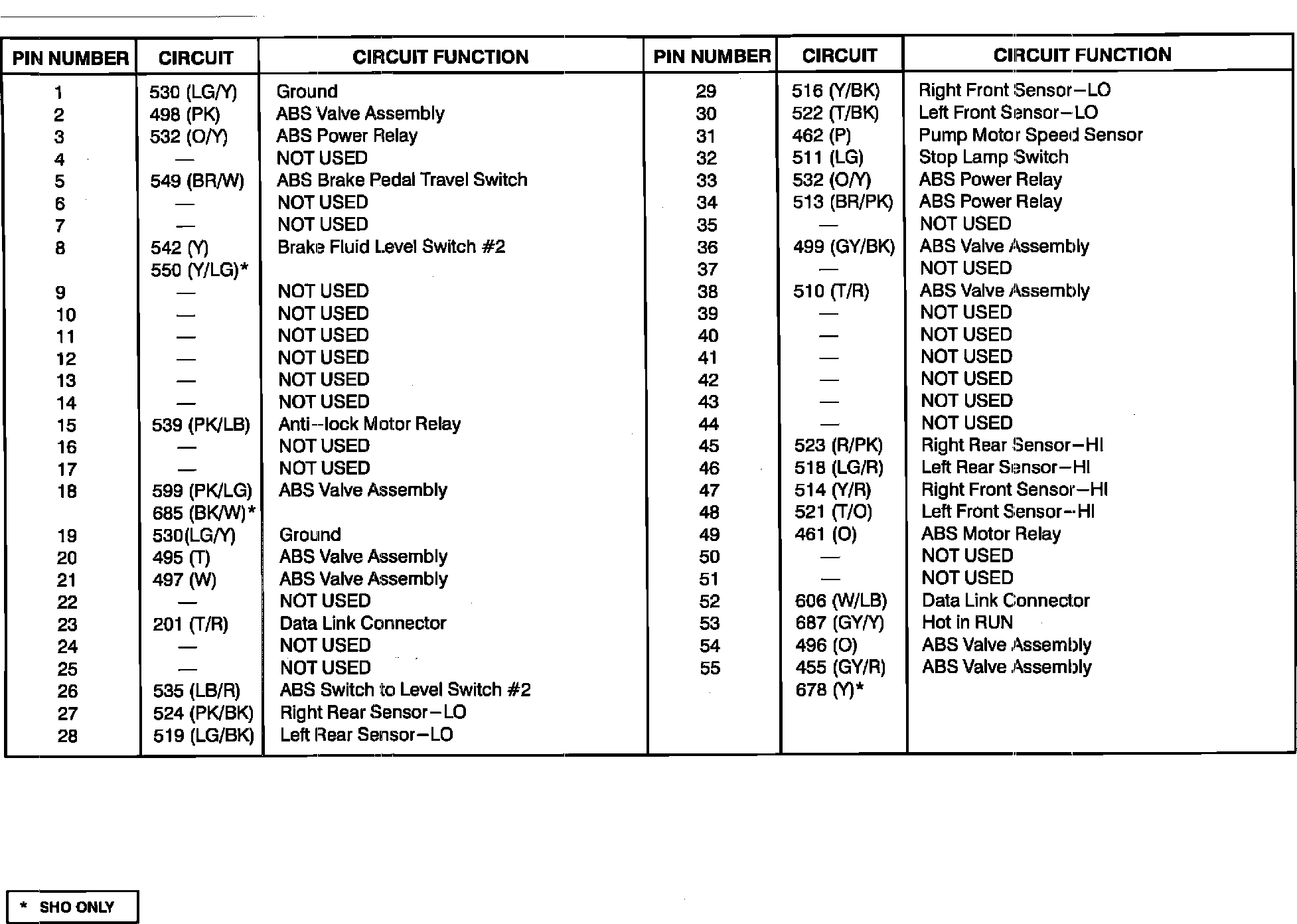

PINOUT IDENTIFICATION
