Dashboard / Instrument Panel


NOTE: Refer to the following illustrations when disassembling or assembling the instrument panel.

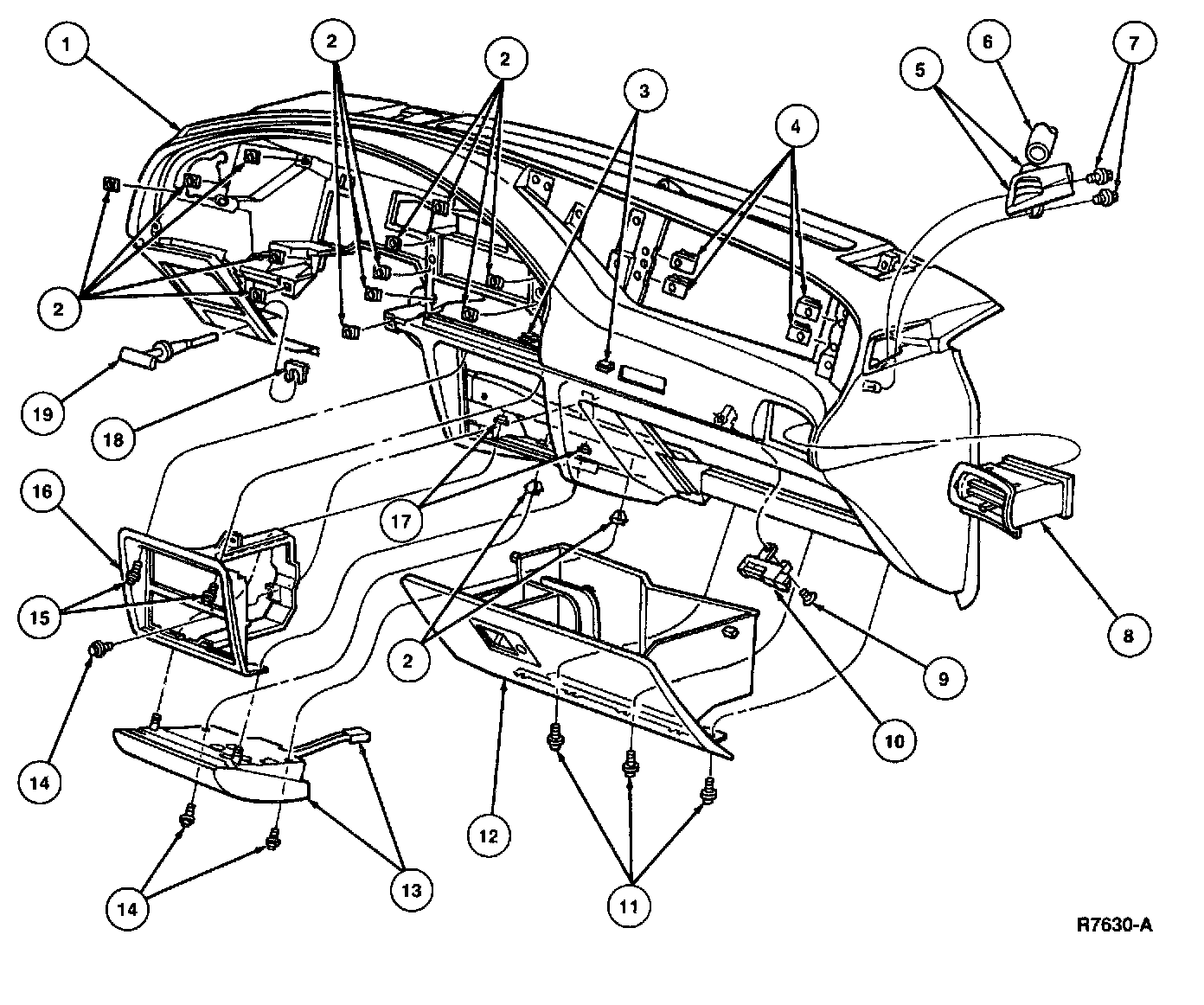

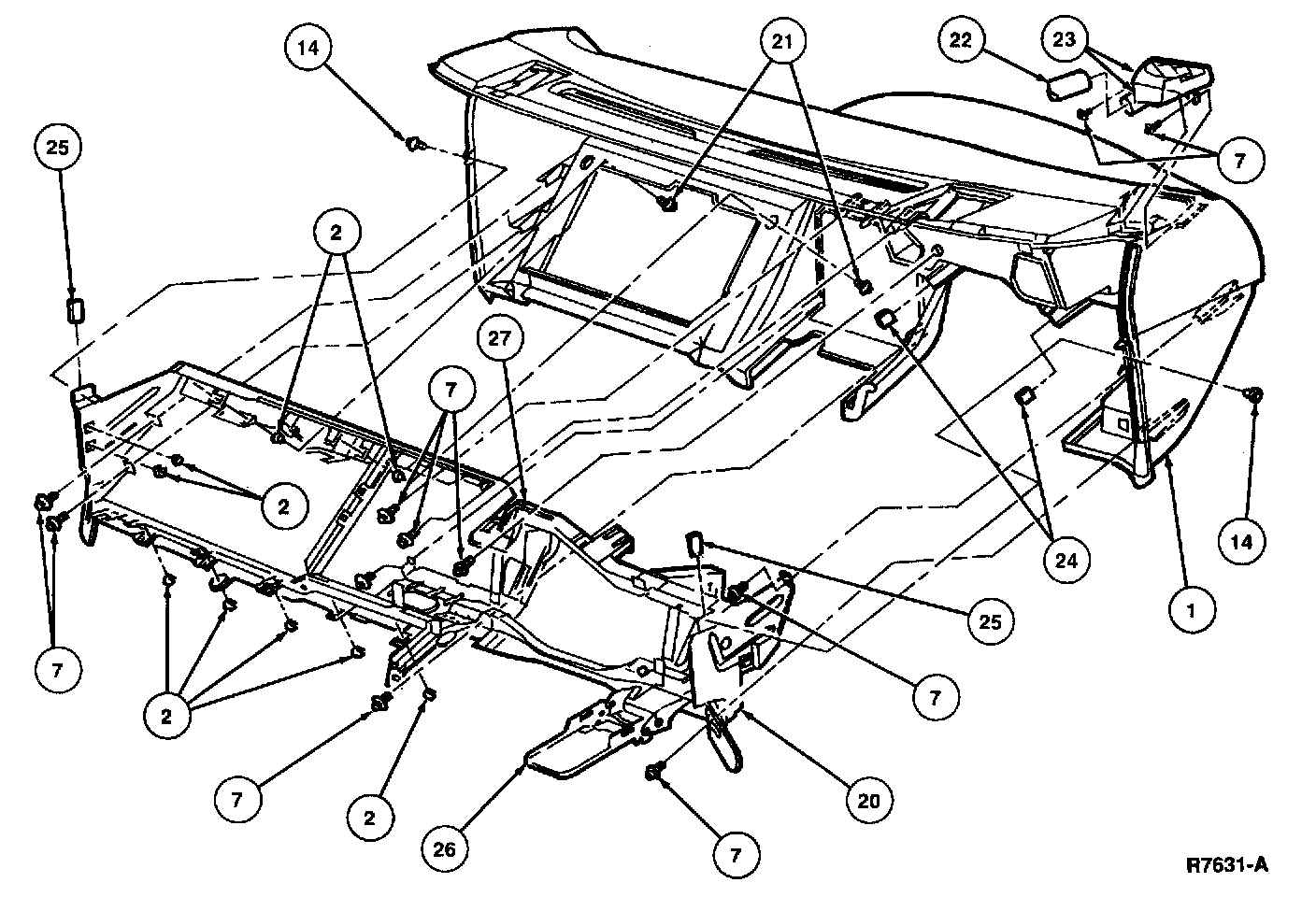

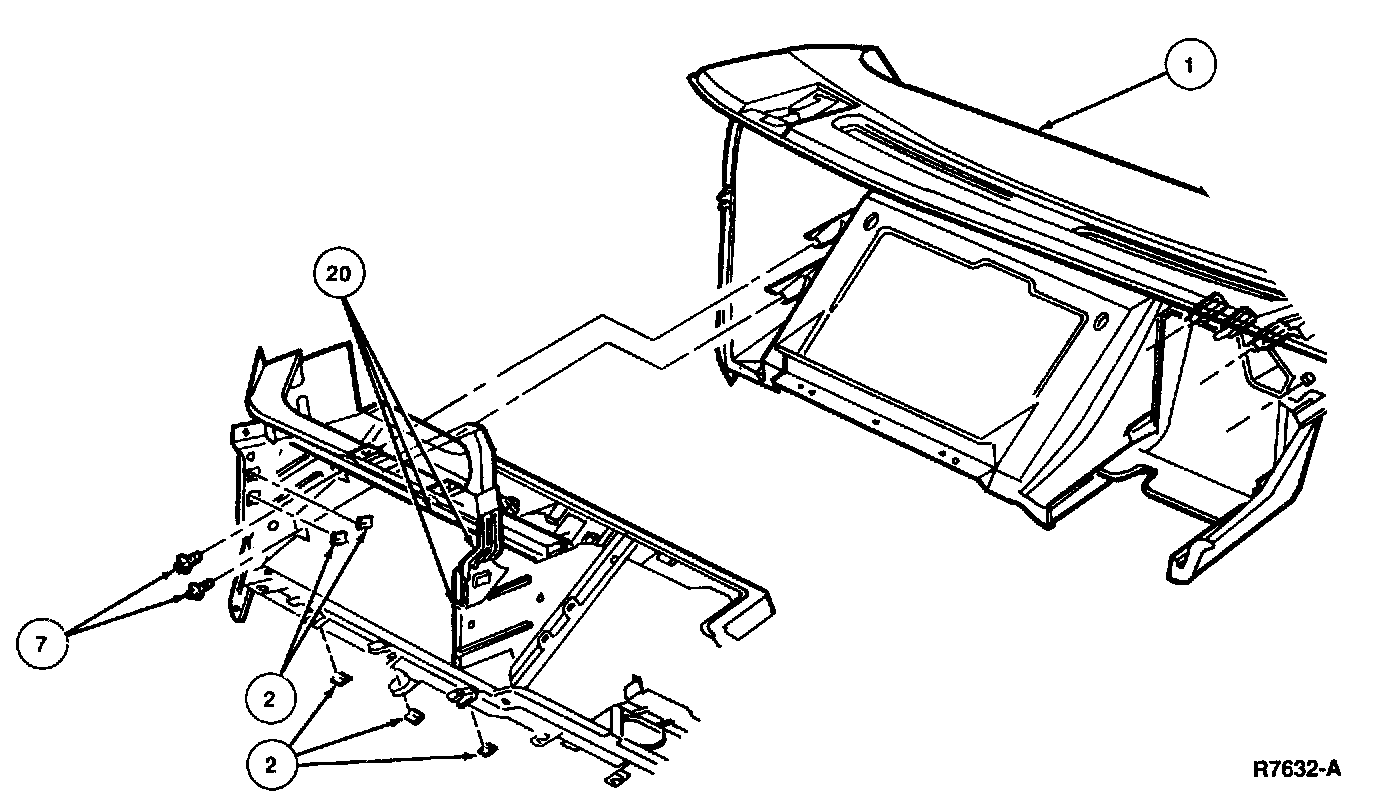

Instrument Panel Exploded View





Front










Rear
