With Column Shift






Steering Column with Column Shift

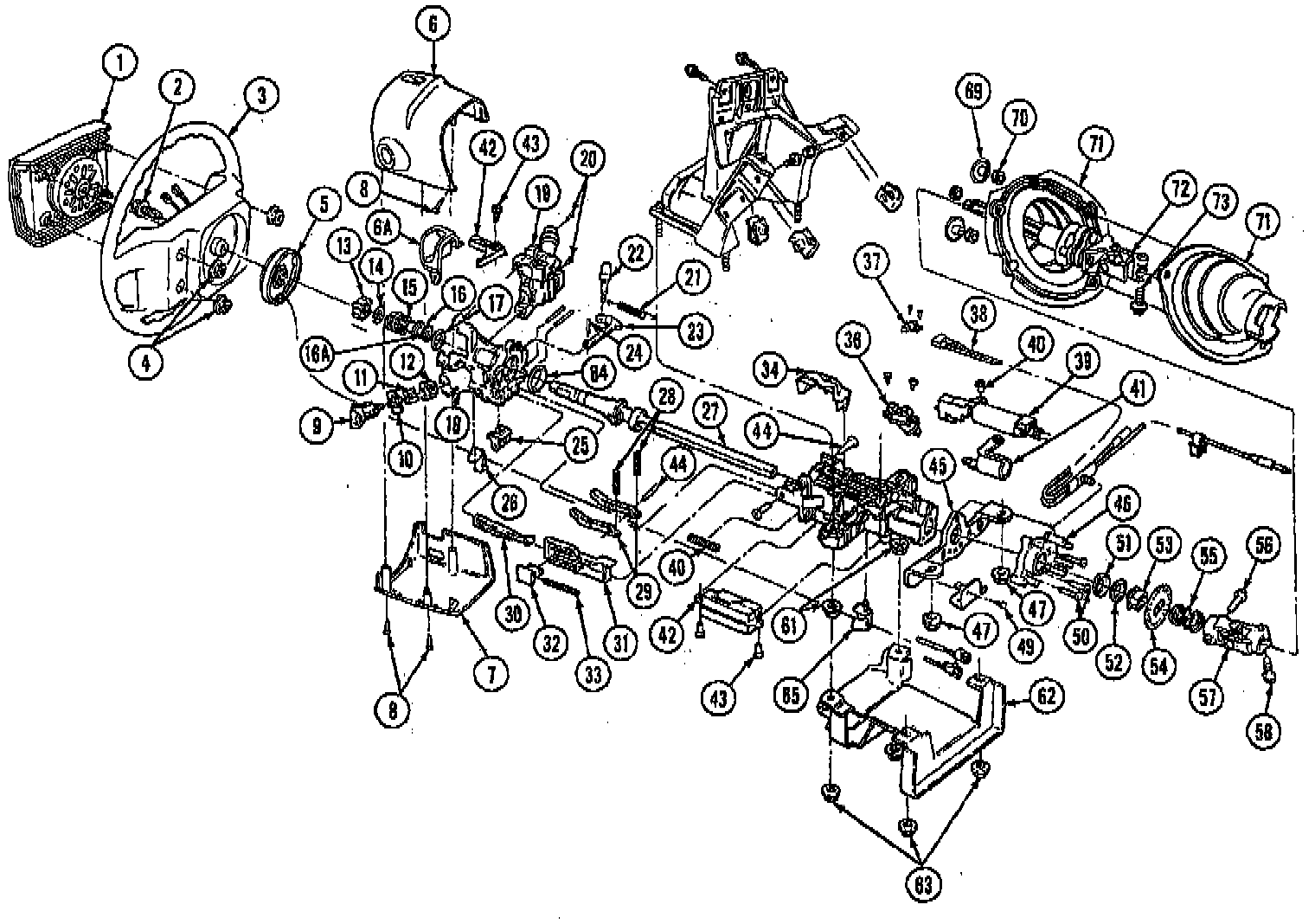

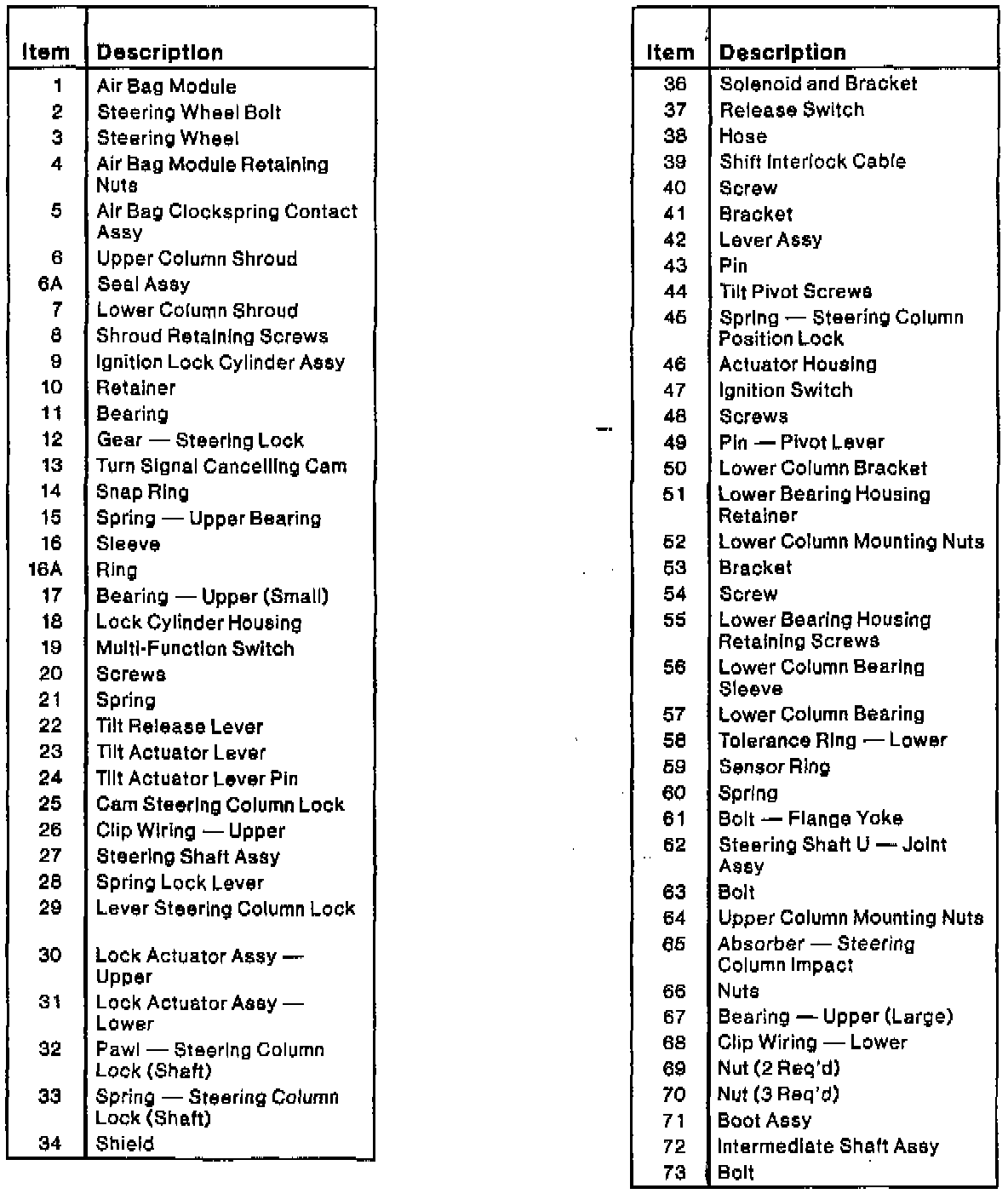

Fig. 6 Exploded View Of Steering Column W/column Shift:






Fig. 6 Exploded View Of Steering Column W/Column Shift:
