With Console Shift




Steering with Console Shift

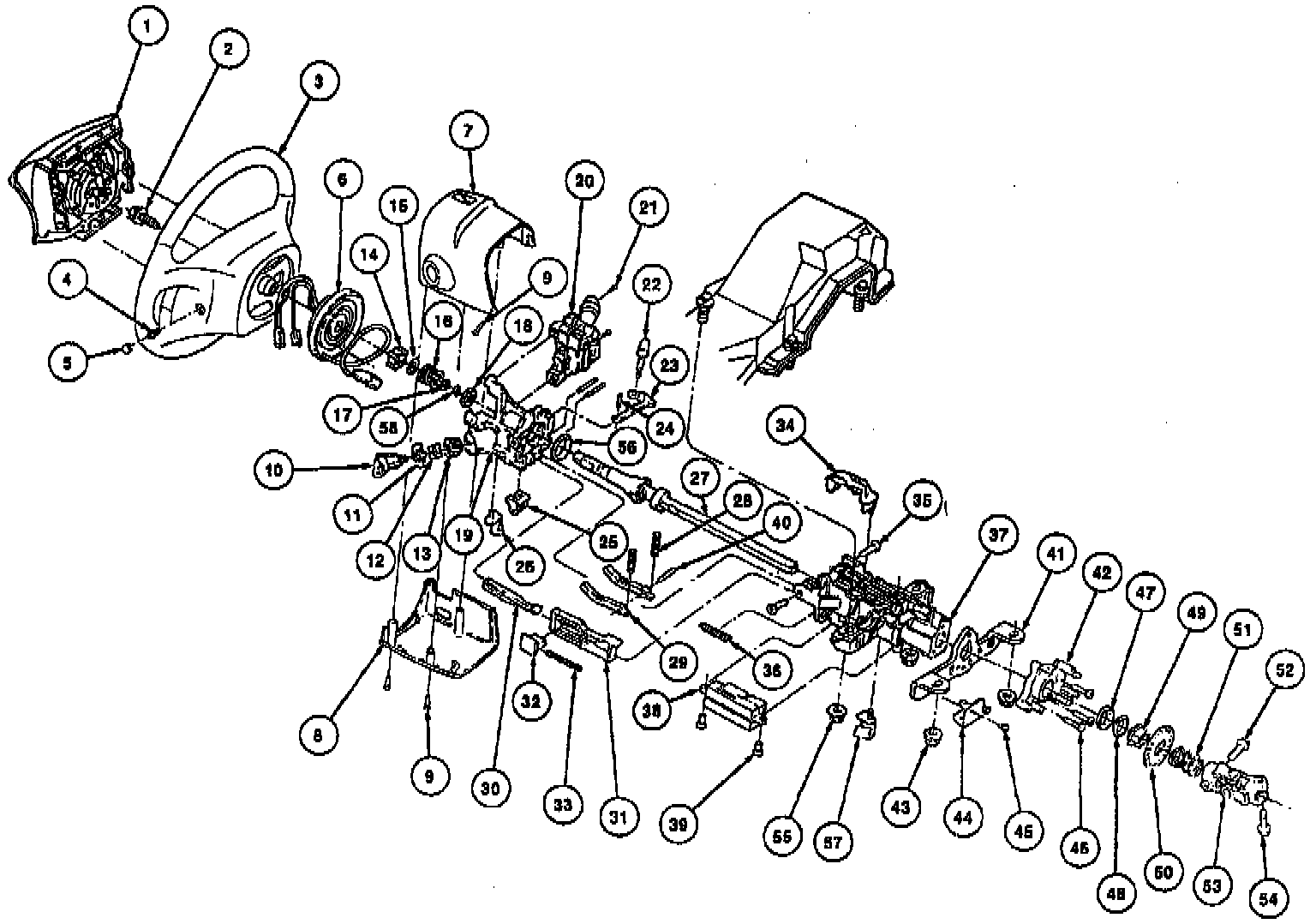

Fig. 7 Exploded View Of Steering Column W/Console Shift:






Fig. 7 Exploded View Of Steering Column W/Console Shift:
