Power Window Switch: Testing and Inspection

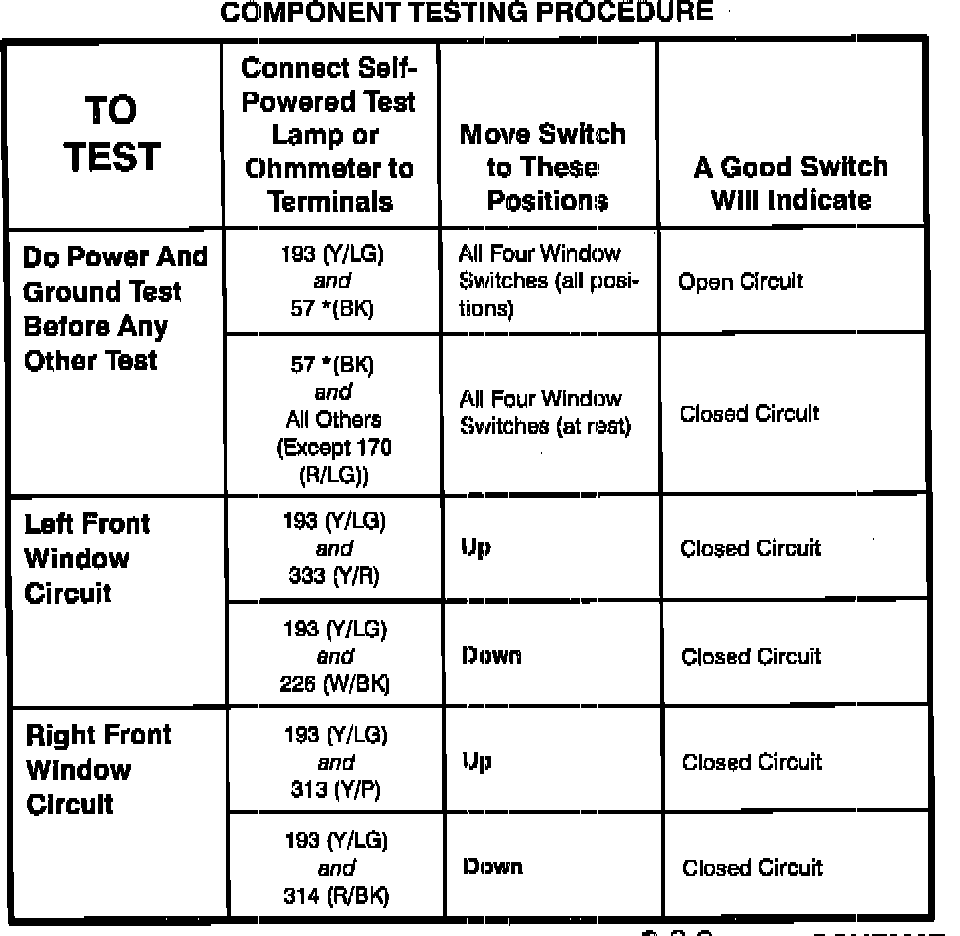

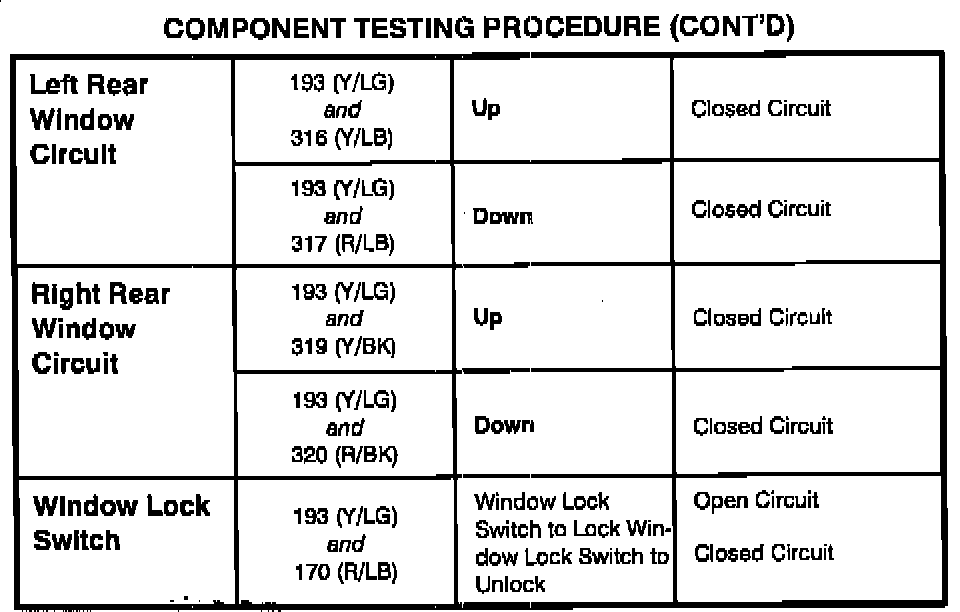

Component Testing Procedure:

Component Testing Procedure:

COMPONENT TESTING PROCEDURE

Terminal ID:

TERMINAL IDENTIFICATION

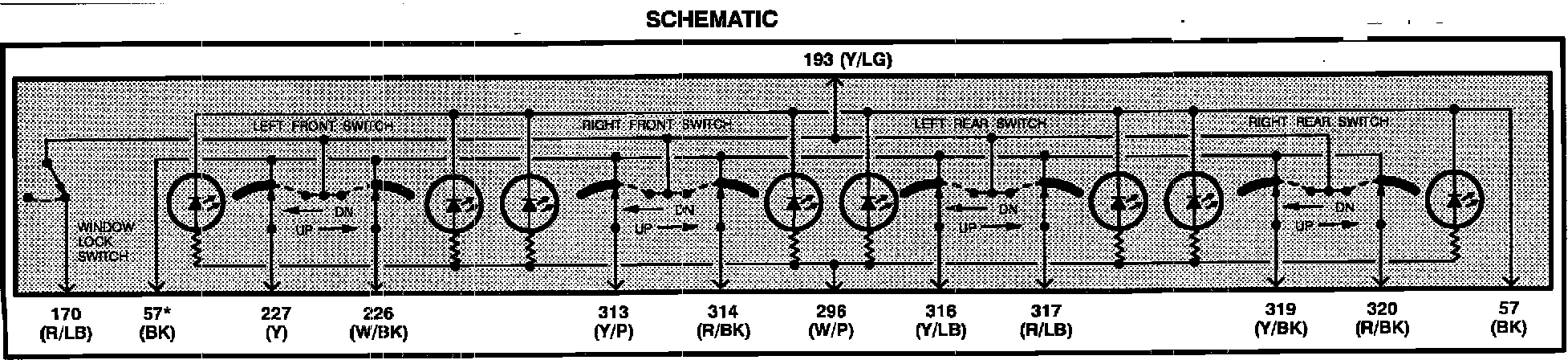

Schematic, Master Window Control Switch:

SCHEMATIC
