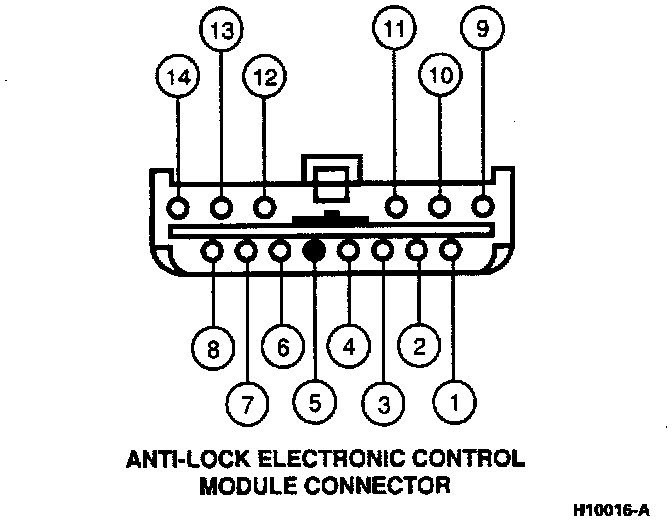

Electronic Brake Control Module

Connector:

Item Part Number Description
1. 601 (LB/PK) Anti-Lock Electronic Control Unit Feed
2. 977 (P/W) Dual Brake Warning Switch to Indicator Lamp
3. 519 (LG/BK) Rear Sensor (Low) to Module (LH)
4. 570 (BK/W) Dedicated GroundClosed Loop
5. - Not Used
6. 535 (LB/R) Pressure Switch to Module
7. 603 (DG) Failure Warning Light
8. 664 (Y/LG) Module to Release Solenoid
9. 601 (LB/PK) Anti-Lock Electronic Control Unit Feed
10. 523 (R/PK) Rear Sensor (High) to Module (RH)
11. 810 (R/LG) Stoplamp Switch to Stoplamps
12. - Not Used
13. 599 (PK/LG) Module to Solenoid
14. 664 (Y/LG) Module to Release Solenoid
