Transmission Position Sensor/Switch: Service and Repair

Park/Neutral Position Switch:

REMOVAL

1. Disconnect the battery ground cable.

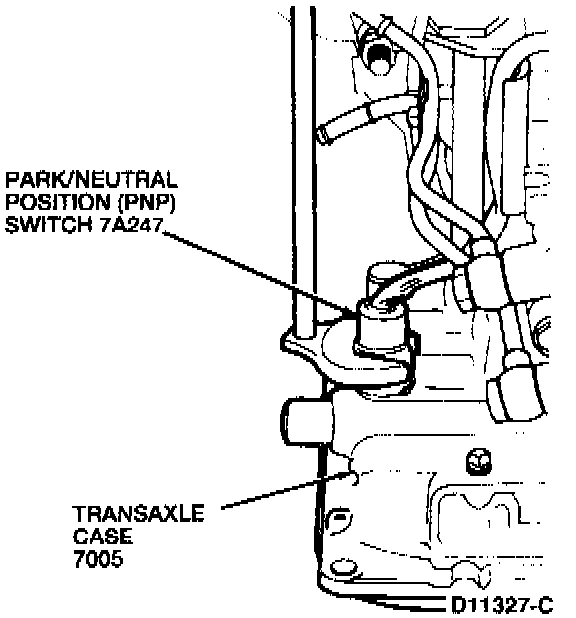

2. Use an extension and a crow's foot wrench to remove the Park I Neutral Position Switch (PNP) from the front LH side of the transaxle case.

3. Disconnect the PNP switch electrical connector and remove the PNP switch.

INSTALLATION

1. Apply Gasket Eliminator E1FZ-19562-A or equivalent meeting Ford specification ESA-M1C75-B to the threads of the PNP switch.

2. Install the PNP switch onto the transaxle case. Tighten the PNP switch to 19-26 Nm (14-19 lb ft).

3. Connect the PNP switch electrical connector.

4. Connect the battery ground cable.
