A/T Technical Data

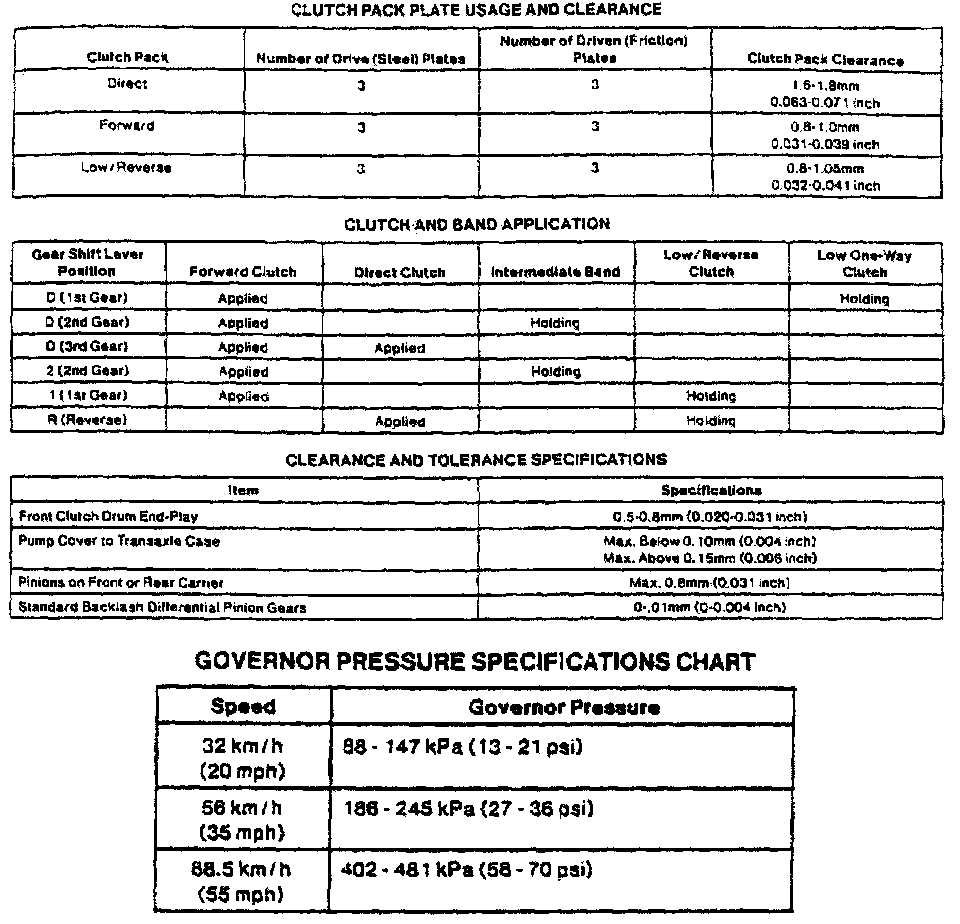

ATX 3-spd A/T, (Aspire):

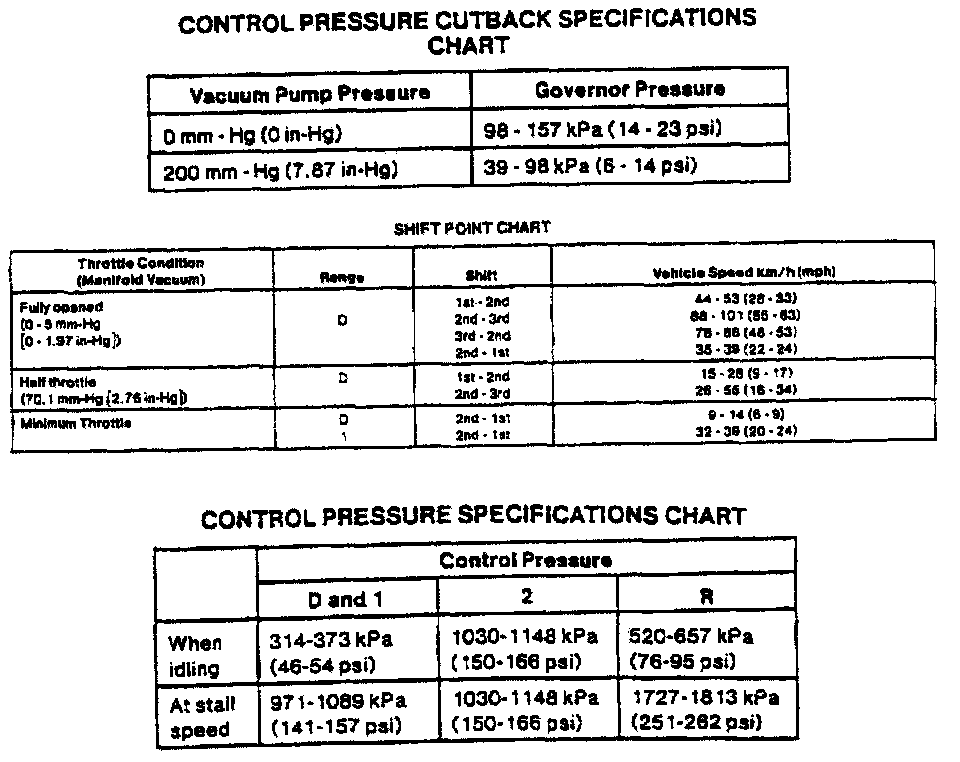

ATX 3-spd A/T, Control Pressure Chart:

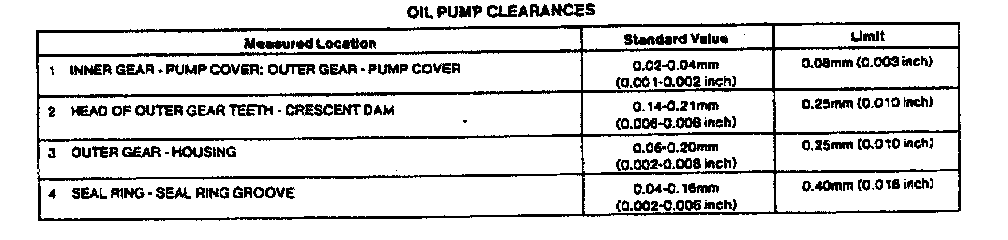

ATX 3-spd A/T, Oil Pump Clearances:
