A/T Torque Data

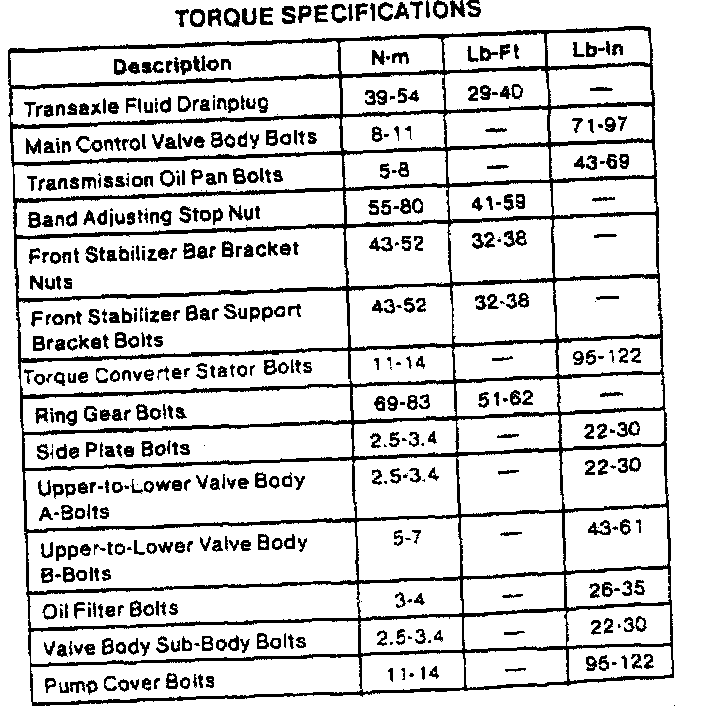

ATX 3-spd A/T, Torque:

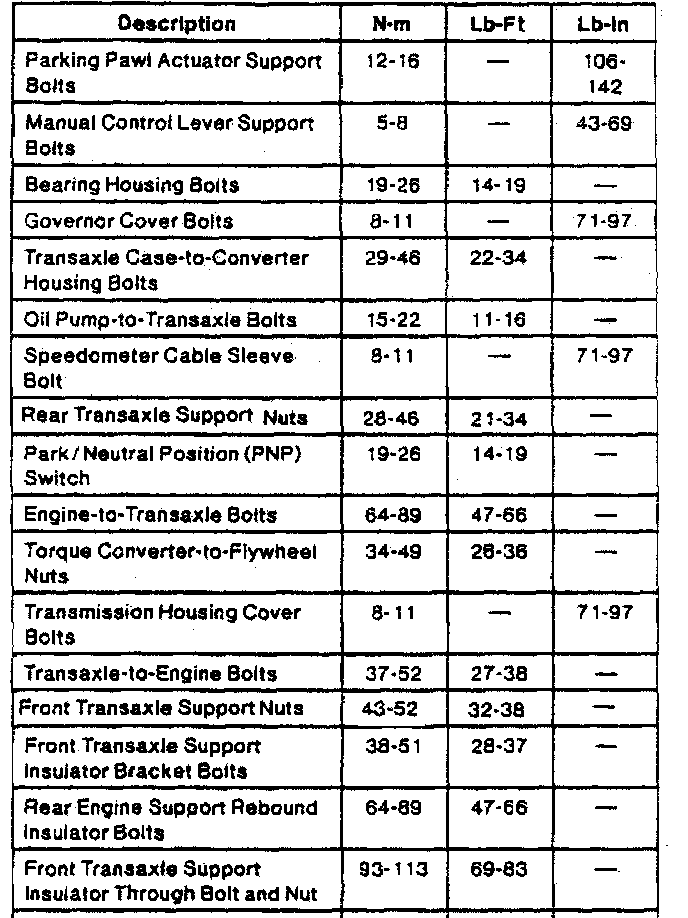

ATX 3-spd A/T, Cont. Torque:

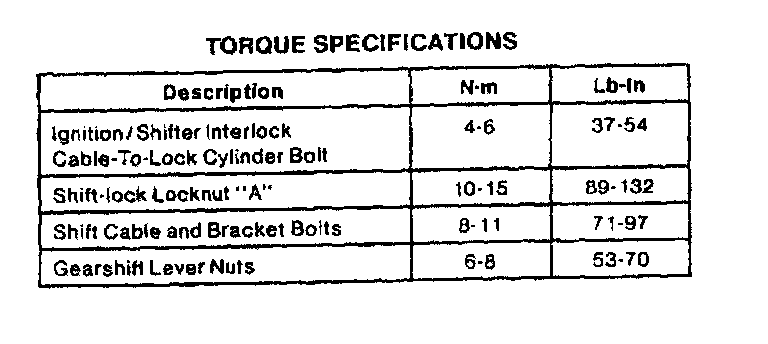

ATX 3-spd A/T, Shifter:

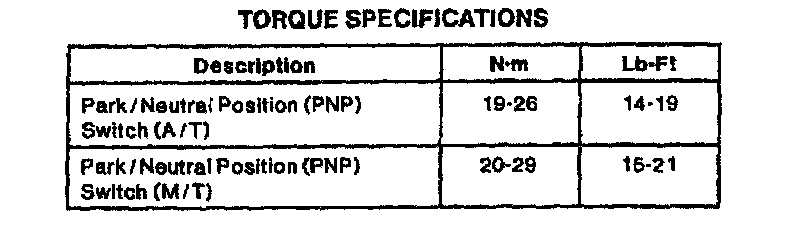

ATX 3-spd A/T, Park/Neutral Switch:
