Servicing - A/T: Application

NOTE: Unless otherwise specified, references to Pickup include the F350 Super Duty commercial chassis.
TRANSMISSION APPLICATION

Application (1) Transmission Model
Bronco AODE-W/4R70W & E4OD
Pickup & Van AODE-W/4R70W, C6 & E4OD

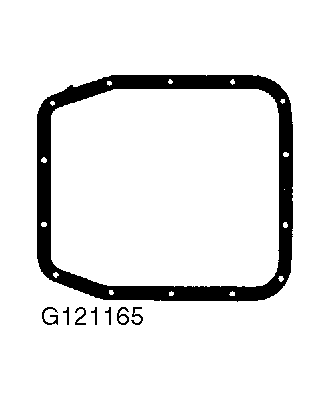

(1) Transmission may be identified by oil pan gasket. See Figure-4.
TRANSFER CASE APPLICATION

Application Transfer Case Model
Bronco & Pickup (1)(2) Warner 1356
(1) Available with mechanical or electronic shift.
(2) Some F350 Pickups may be equipped with a Power Take-Off (PTO) unit.
