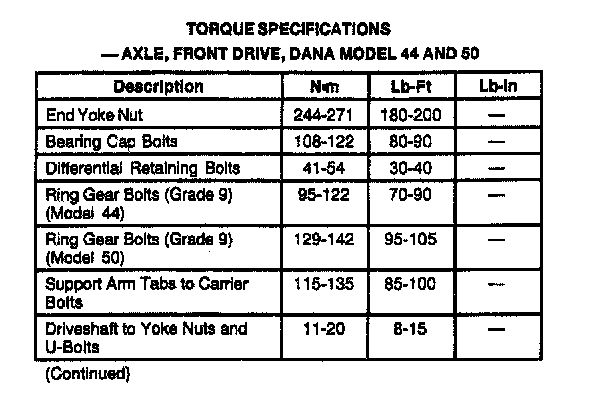

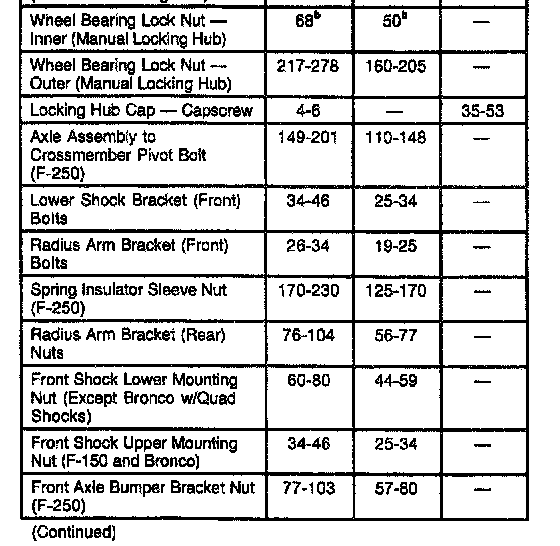

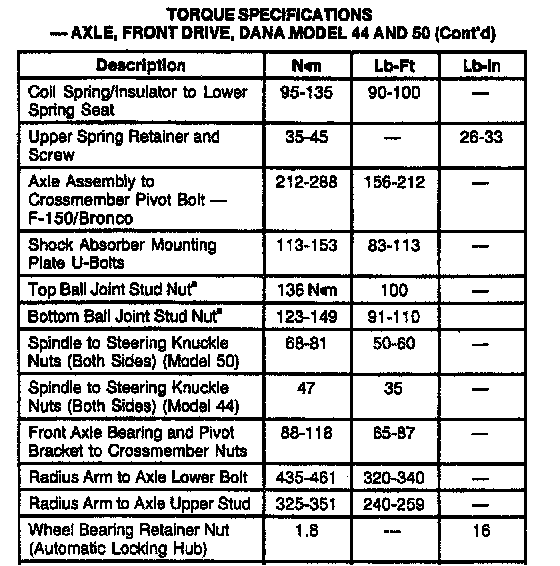

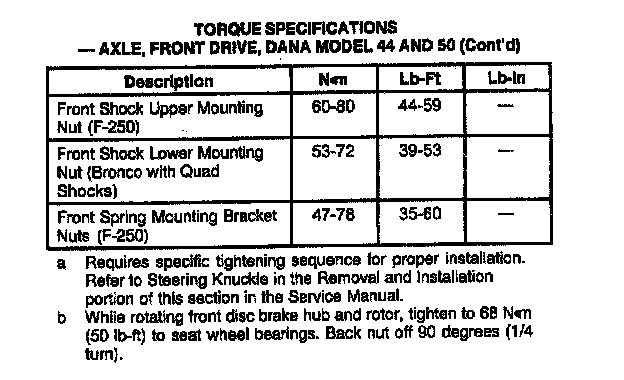

Torque Specification

Dana 44/50 IFS, Differential Torque:





Dana 44/50 IFS, Differential Torque:




Dana 44/50 IFS, Differential Torque:




Dana 44/50 IFS, Differential Related:
