Knock Sensor: Service and Repair

Knock Sensor:

REMOVAL

1. Disconnect knock sensor electrical connector.

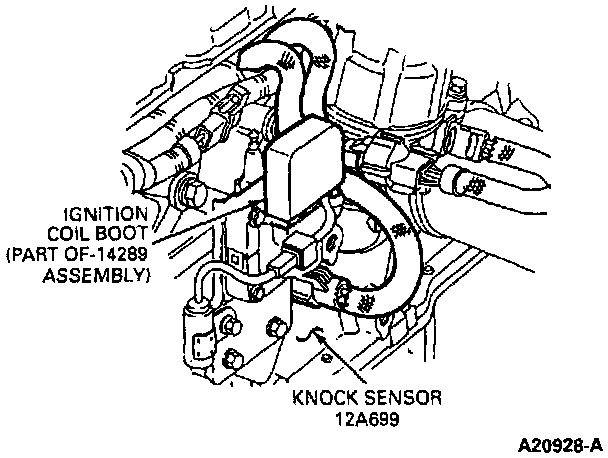

2. Remove knock sensor (KS) from cylinder block.

INSTALLATION

1. To install, reverse removal procedure.

2. Tighten knock sensor to 20-27 Nm (15-20 ft lb).
