Differential Technical Data

Dana Axle, Pinion/Carrier Clearance:

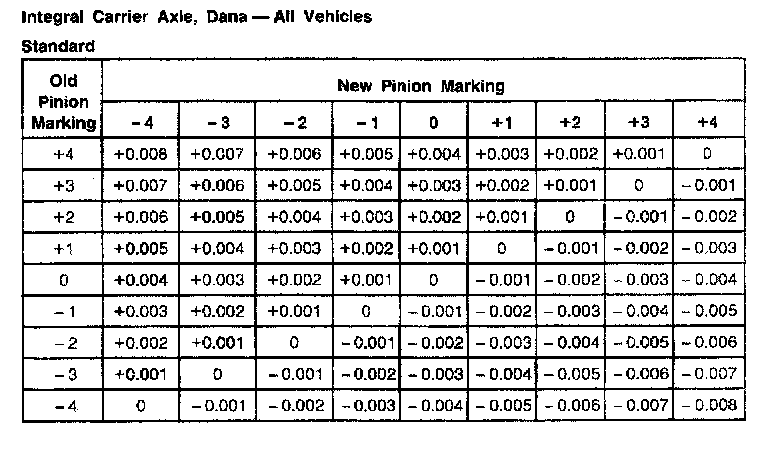

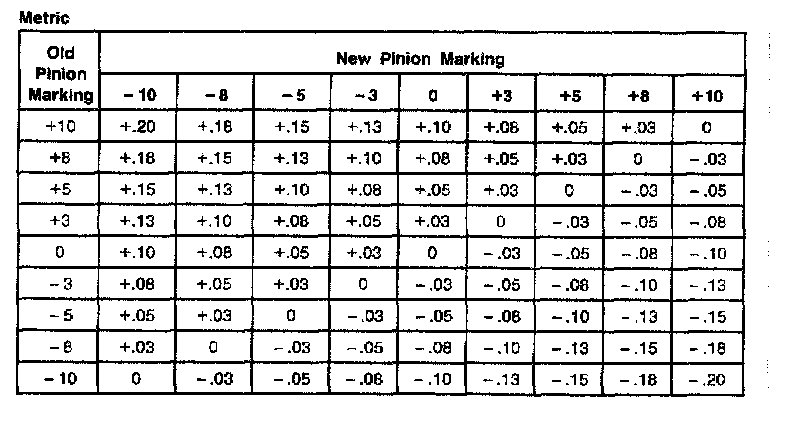

Dana Axle, Pinion Shim Clearance:

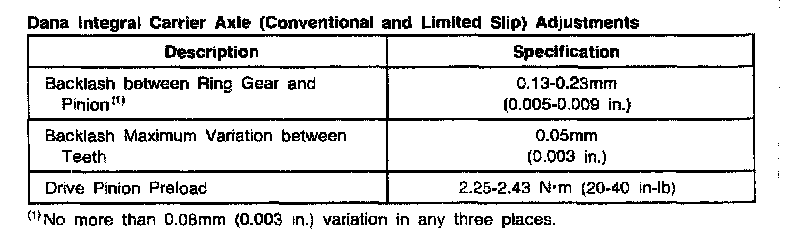

Dana Axle, Ring Gear/Pinion Backlash:
