Throttle Position Sensor: Locations

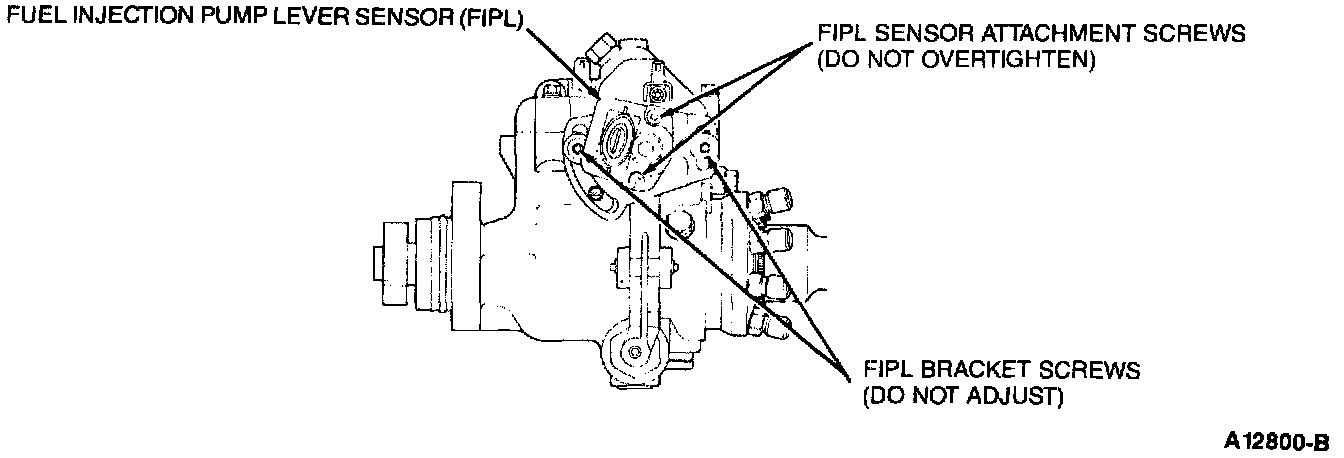

Fuel Injection Pump Lever Side View:






The Fuel Injection Pump Lever (FIPL) sensor is bolted to the fuel injection pump and is actuated by the throttle lever.
