A/T Torque Data

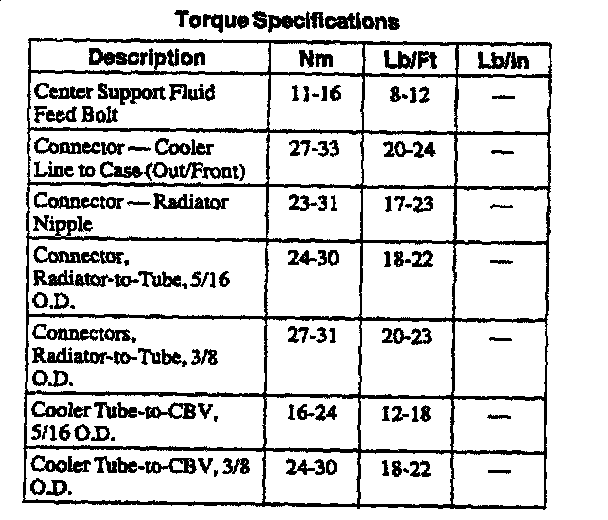

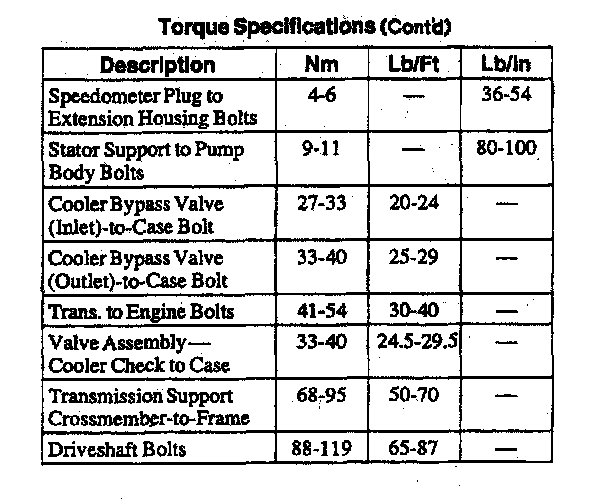

E4OD 4-spd A/T, Transmission Torque:

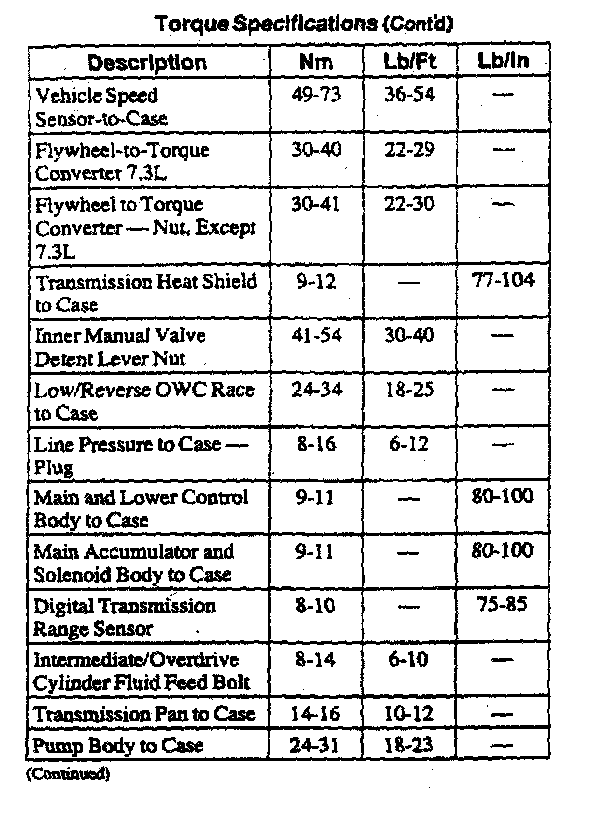

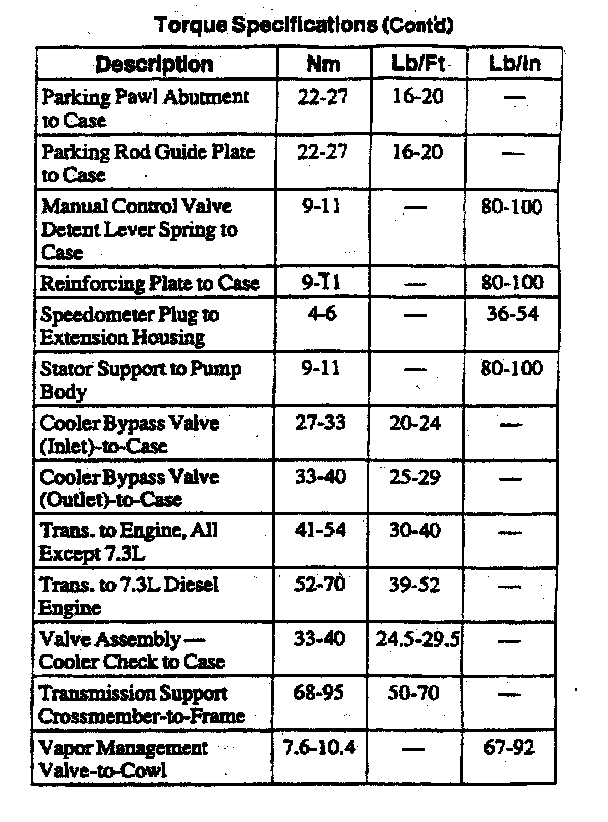

E4OD 4-spd A/T, Transmission Torque:

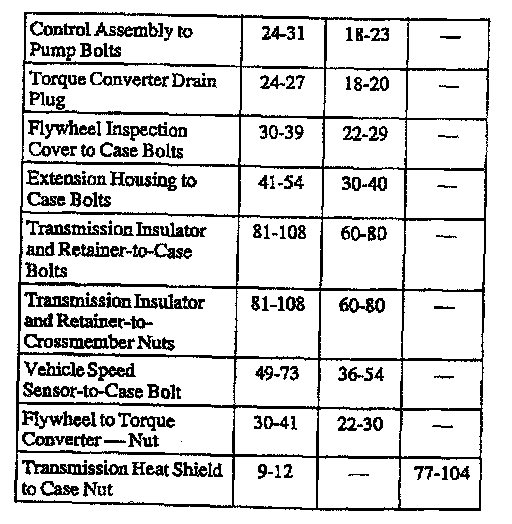

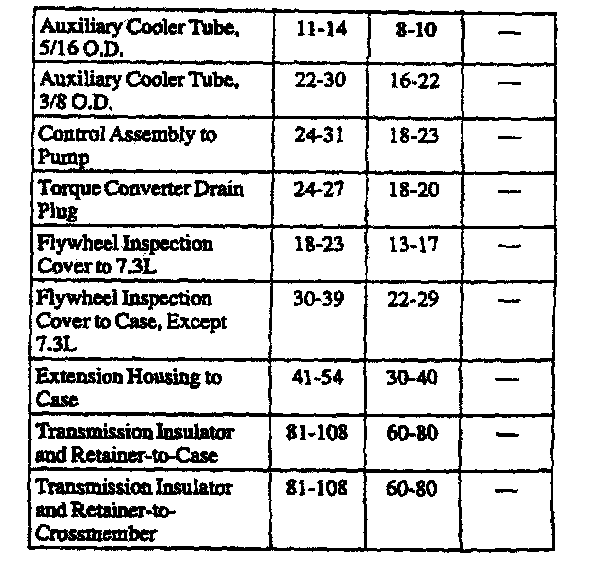

E4OD 4-spd A/T, Transmission Torque:

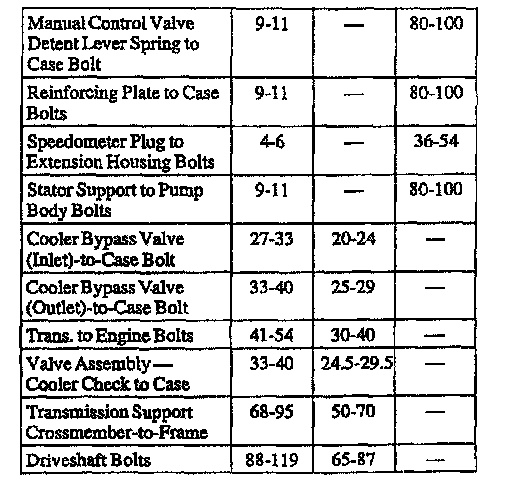

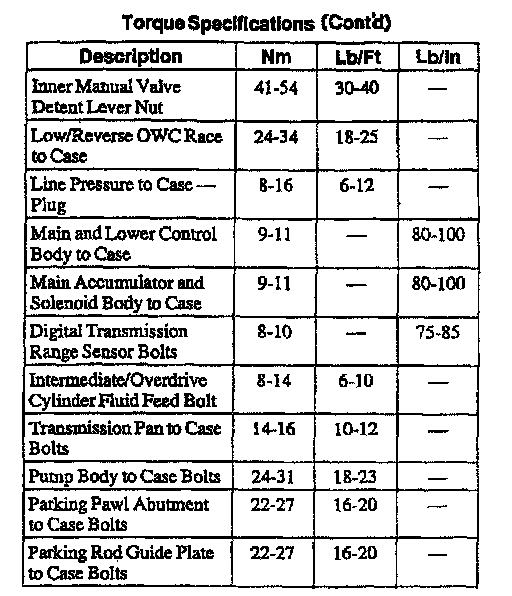

E4OD 4-spd A/T, Transmission Torque:

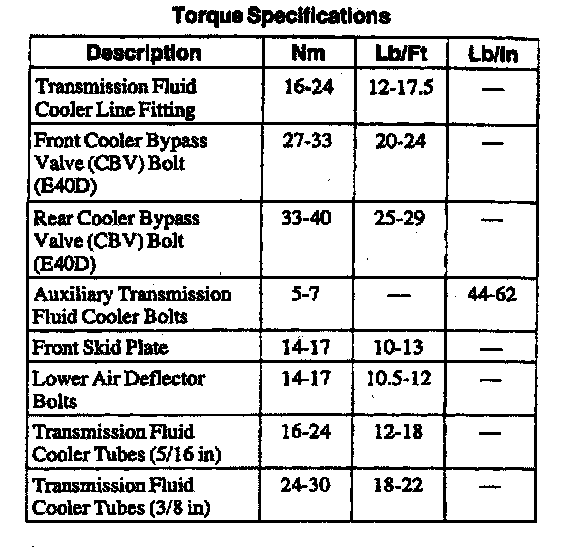

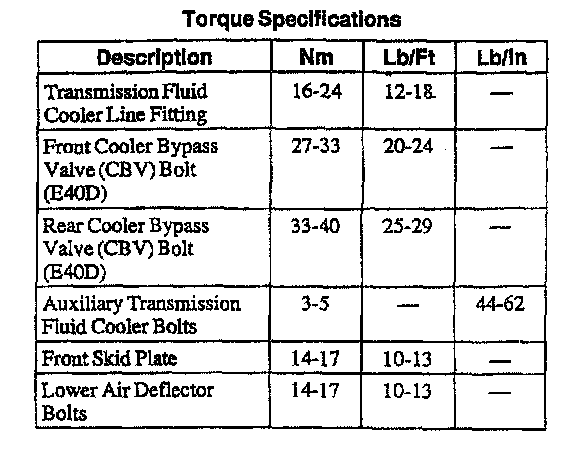

E4OD/4R70W 4-spd A/T, Transmission Cooler:

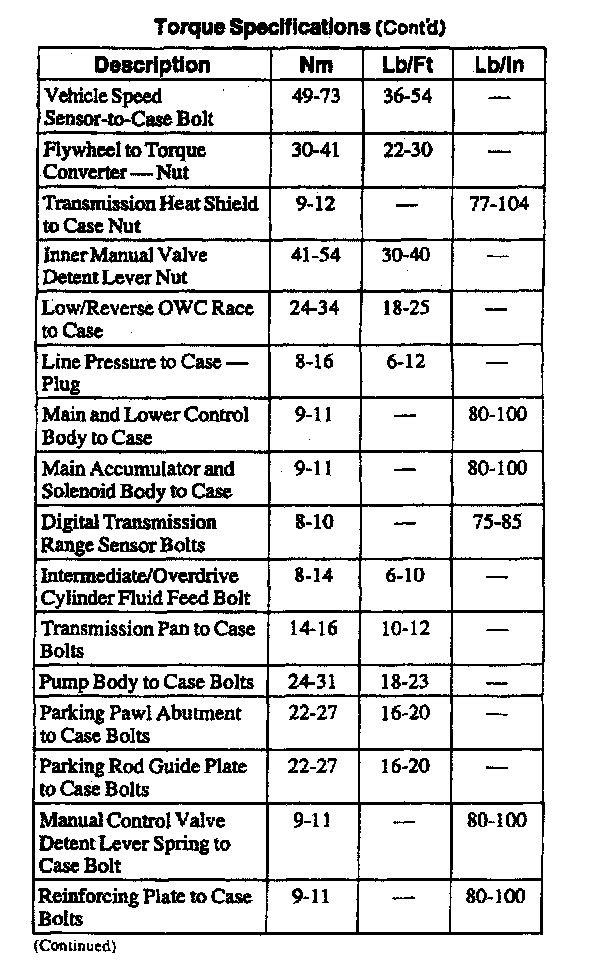

E4OD 4-spd A/T, Transmission Torque (Expedition):





E4OD 4-spd A/T, Transmission Torque (Expedition):

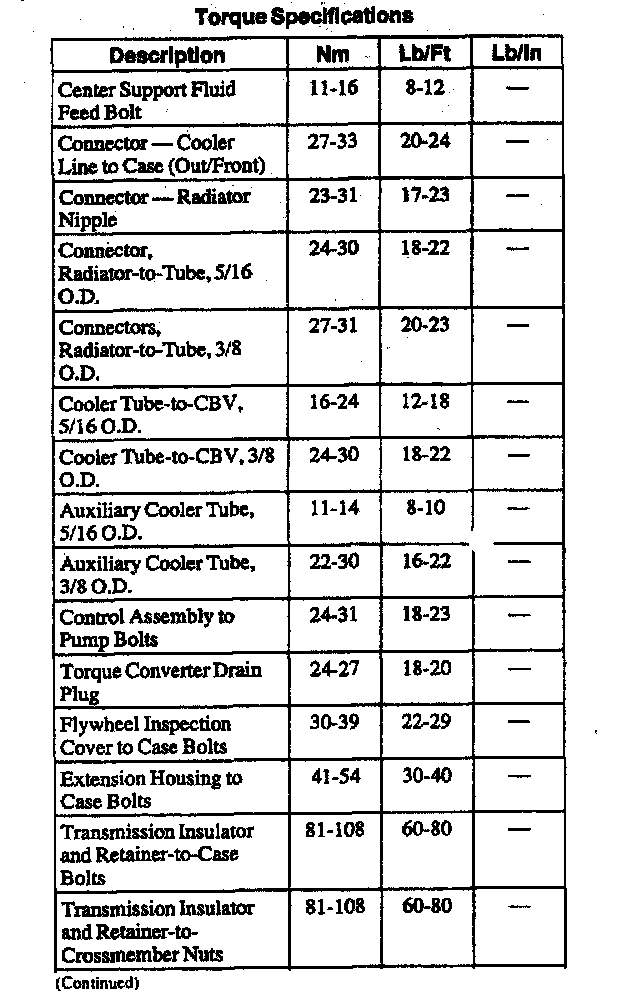

E4OD 4-spd A/T, Transmission Torque:

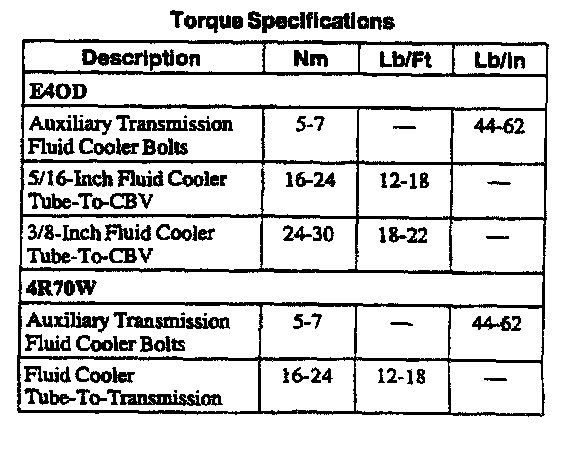

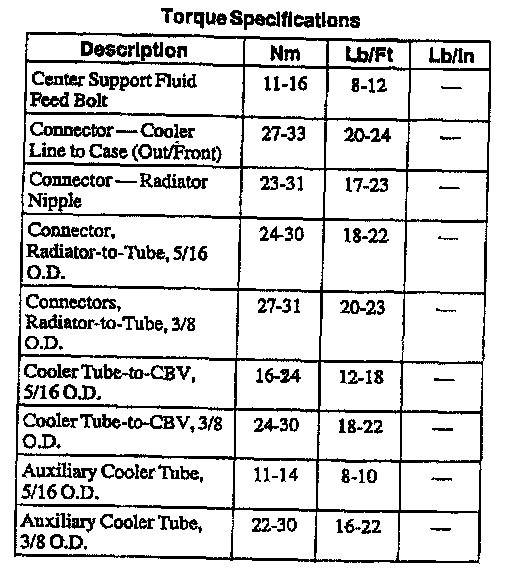

E4OD 4-spd A/T, Transmission Cooler / Cooling Line:

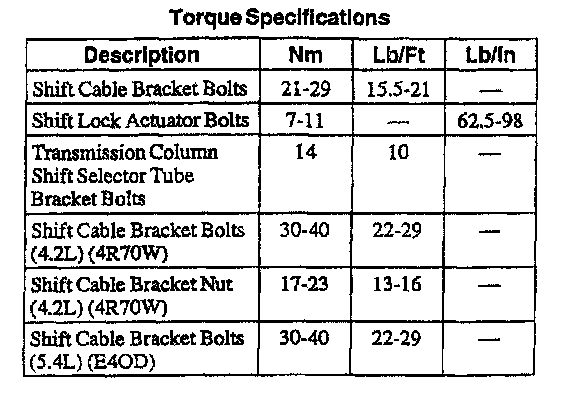

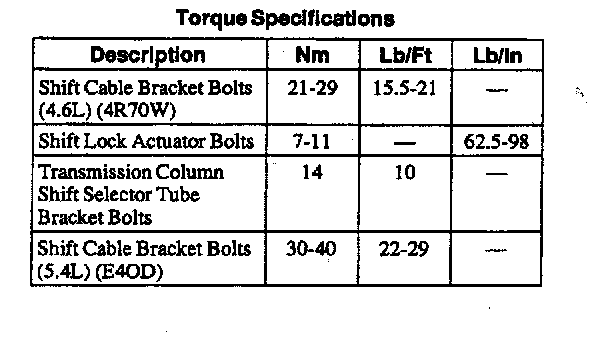

E4OD 4-spd A/T, External Controls:






E4OD 4-spd A/T, Transmission Torque (F150/250):




E4OD 4-spd A/T, Transmission Torque:





E4OD 4-spd A/T, Transmission Torque:




E4OD 4-spd A/T, Transmission Torque:





E4OD 4-spd A/T, Transmission Cooler:





E4OD 4-spd A/T, External Controls:
