Intake Manifold

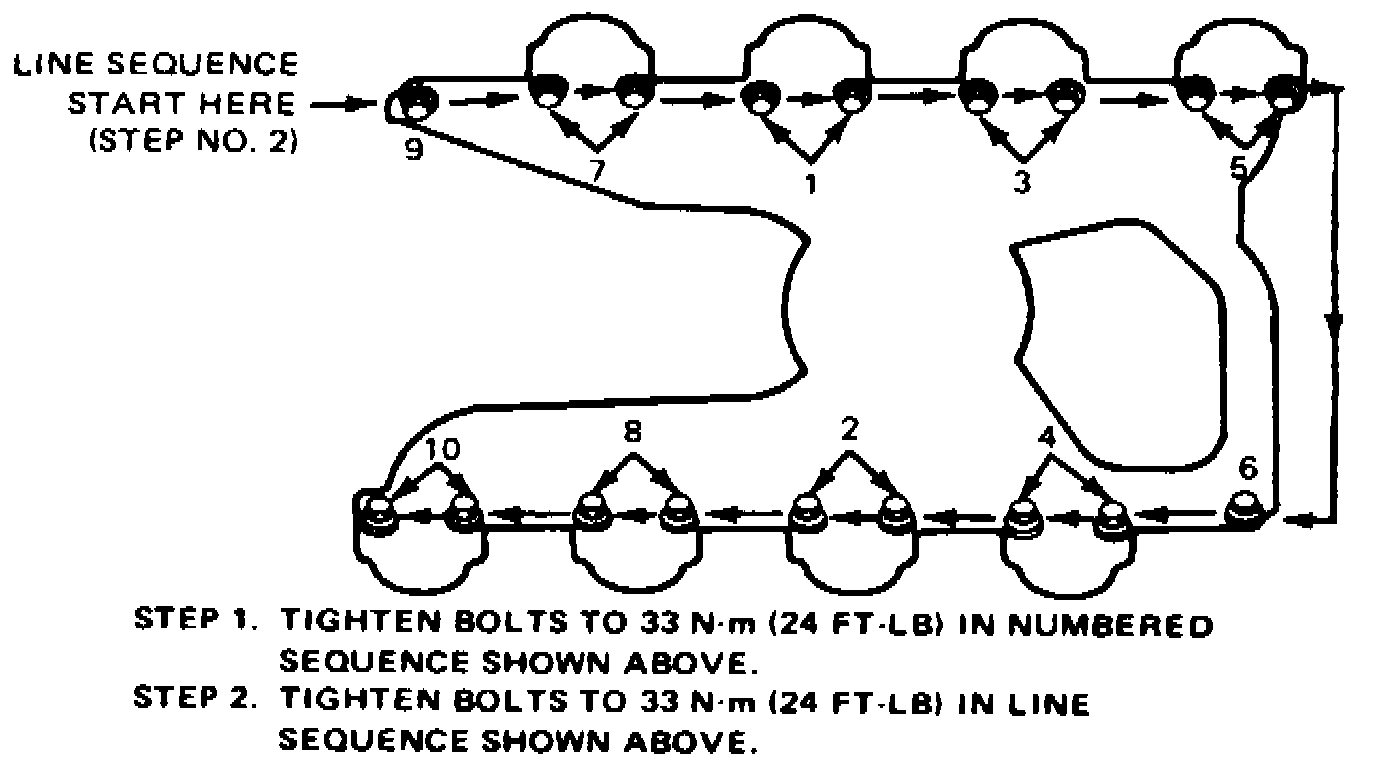

Fig. 5 Intake Manifold Tightening Sequence:

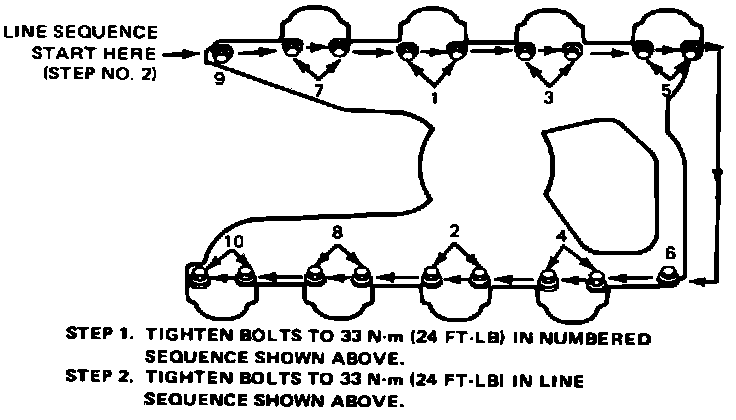

Fig. 7 Intake Manifold Tightening Assembly:
