Side Mirror Switch

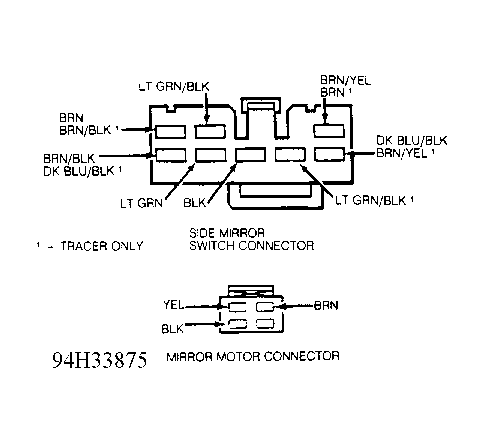

Remove side mirror switch. See SIDE MIRROR SWITCH under REMOVAL & INSTALLATION . Using DVOM, check for continuity between specified wires. See appropriate SIDE MIRROR SWITCH TEST table. If switch fails any portion of test, replace switch.
SIDE MIRROR SWITCH TEST (1)
| Switch Position | Continuity | |||
|---|---|---|---|---|
| Left Mirror | ||||
| Up | DK BLU/BLK & BRN - LT GRN & BLK | |||
| Down | DK BLU/BLK & LT GRN - BRN & BLK | |||
| Left | DK BLU/BLK & LT GRN - BRN/YEL & BLK | |||
| Right | DK BLU/BLK & BRN/YEL - LT GRN & BLK | |||
| Right Mirror | ||||
| Up | DK BLU/BLK & BRN - LT GRN/BLK & BLK | |||
| Down | DK BLU/BLK & LT GRN/BLK - BRN & BLK | |||
| Left | DK BLU/BLK & LT GRN/BLK - BRN/BLK & BLK | |||
| Right | DK BLU/BLK & BRN/BLK - LT GRN/BLK & BLK | |||
|
||||
