Cruise Control Systems: Testing: Amplifier: Notes
NOTE:

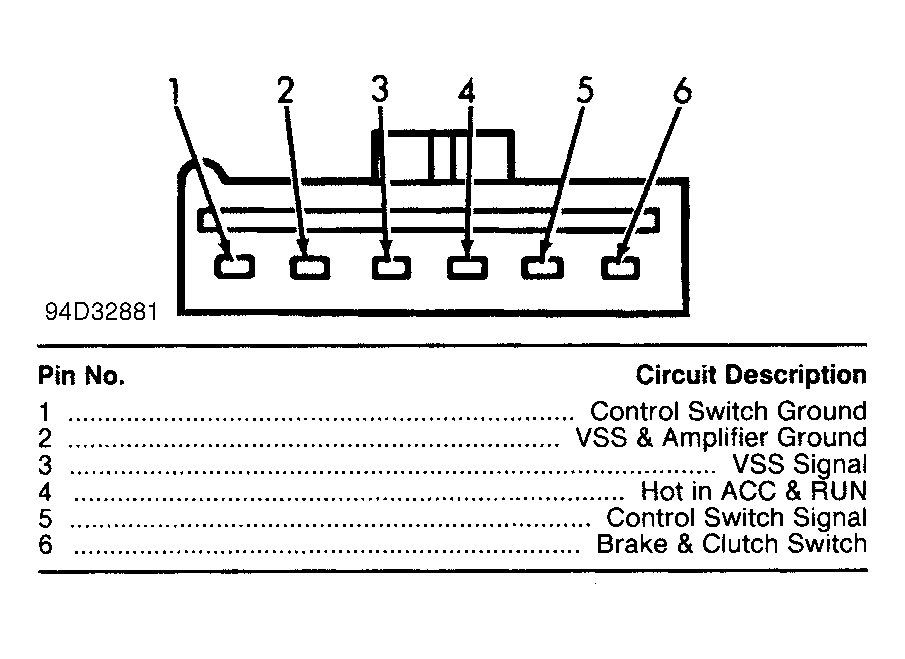

Perform tests by backprobing 6-pin amplifier connector (unless specified otherwise). See Figure
. See AMPLIFIER LOCATION table under REMOVAL & INSTALLATION. Use only a digital volt-ohmmeter with an input impedance of 10 megohms for making measurements. DO NOT use test light to test any circuit connected to amplifier.
