Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Part 2 of 3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 2 of 3

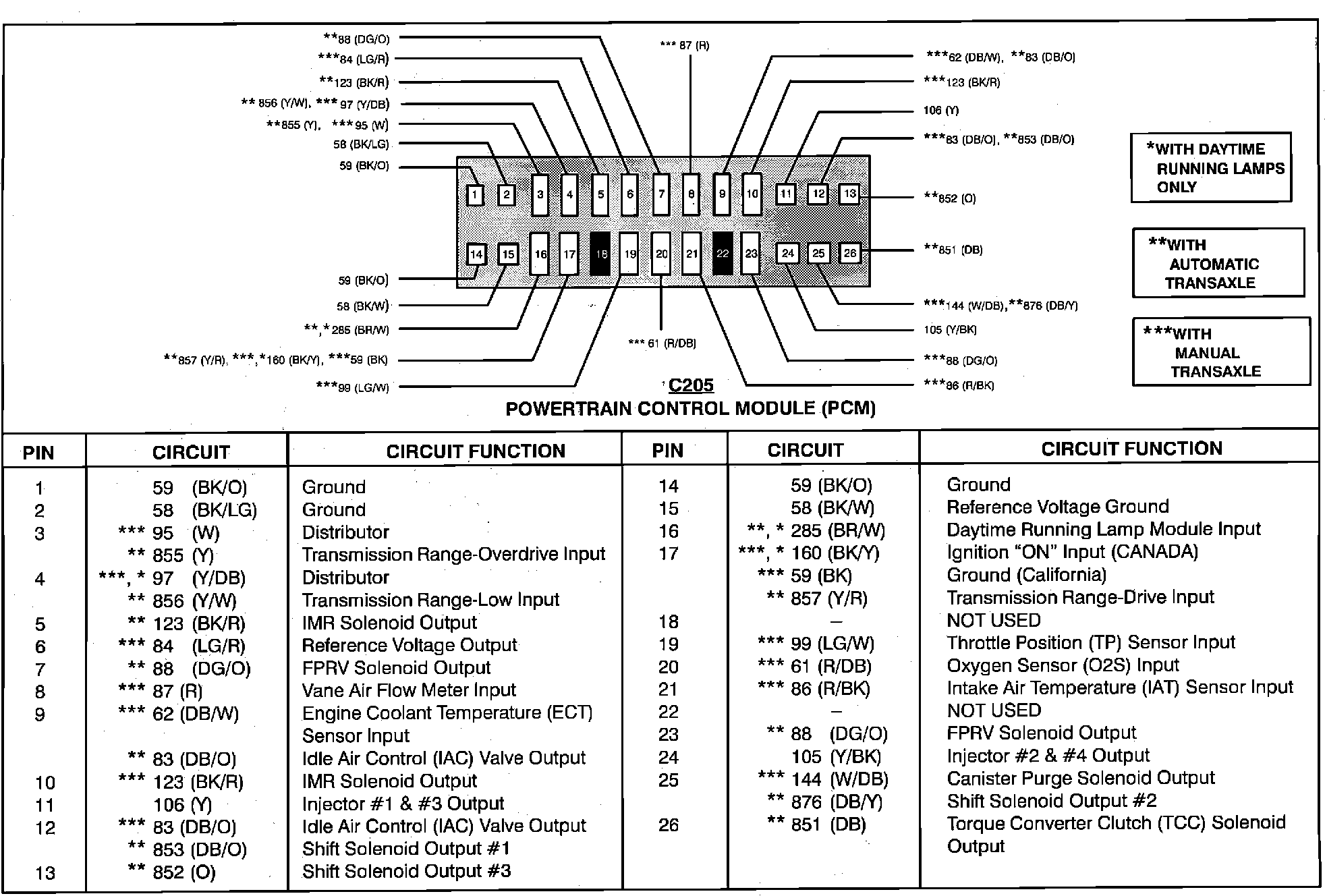

Powertrain Control Module (PCM):
