Engine Control Module: Locations

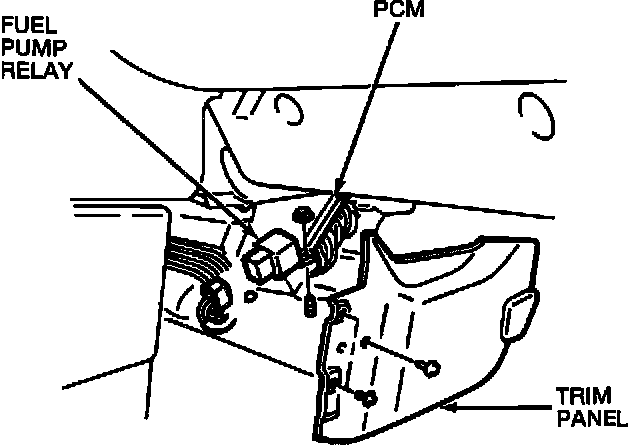

Fuel Pump Relay And PCM:





The Powertrain Control Module (PCM) is located under the center of the instrument panel.
