Ignition Switch: Testing and Inspection

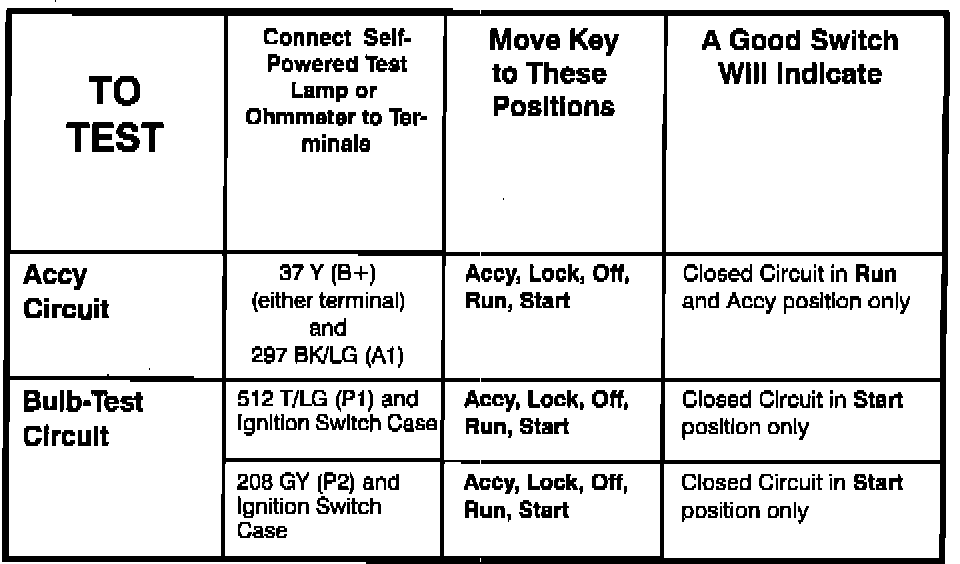

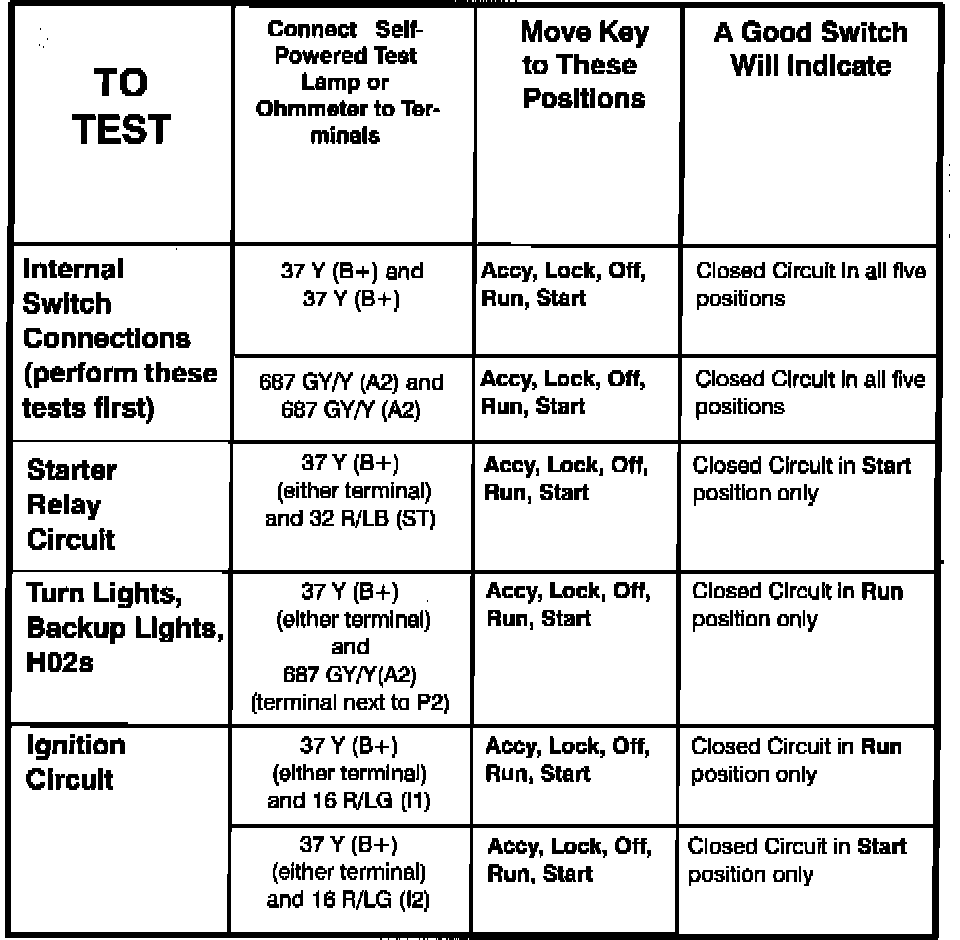

Component Testing Procedure:
Component Testing Procedure:

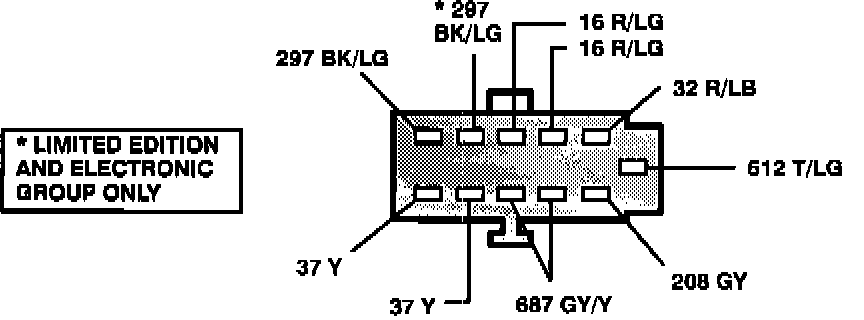

Terminal ID:

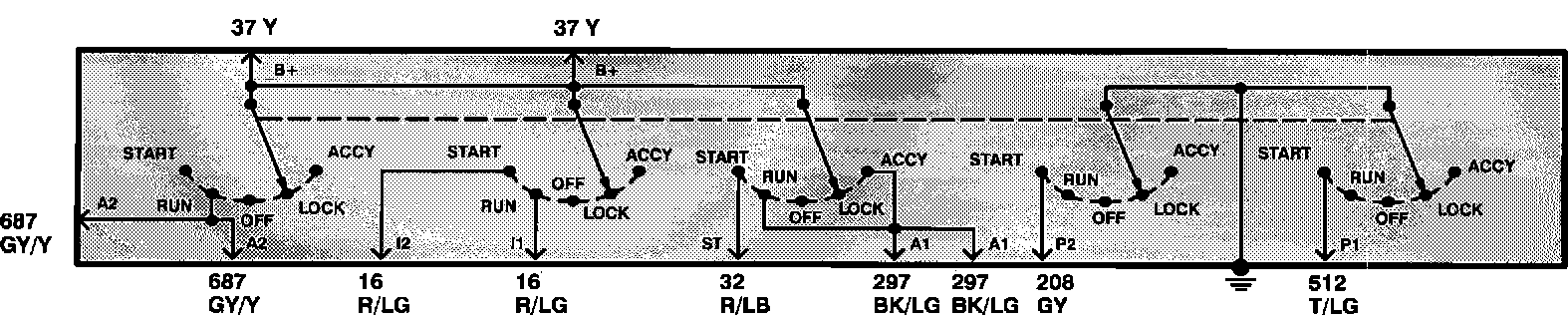

Schematic:
